796466-1

Active

TE Connectivity AMP Connectors

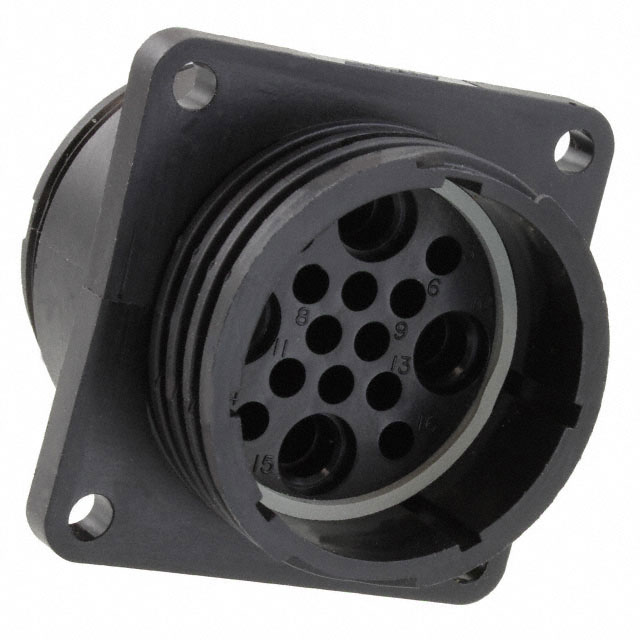

CONN RCPT HSG MALE 16POS PNL MT

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RCPT HSG MALE 16POS PNL MT

Technical Specifications

Parameters and characteristics for this part

Specification	796466-1

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	16, 8
Contact Type	Crimp
Housing Color	Black
Ingress Protection	IP65 - Dust Tight, Water Resistant
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Note	Contacts Not Included
Number of Positions [custom]	4
Number of Positions [x]	12
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-50 °C
Orientation	Keyed
Shielding	Unshielded
Type	For Male Pins

CONN RCPT HSG MALE 16POS PNL MT

Part	Shielding	Contact Size	Housing Color	Connector Type	Note	Orientation	Contact Shape	Mounting Feature	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Type	Material Flammability Rating	Number of Positions [x]	Number of Positions [custom]	Ingress Protection
TE Connectivity AMP Connectors 796466-1	Unshielded	8, 16	Black	Receptacle Housing	Contacts Not Included	Keyed	Circular	Flange	-50 °C	125 °C	Crimp	For Male Pins	UL94 V-0	12	4	IP65 - Dust Tight, Water Resistant

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

16 (12 + 4 Power) Position Circular Connector Receptacle Housing Panel Mount
