6791122331F

Active

DIALIGHT

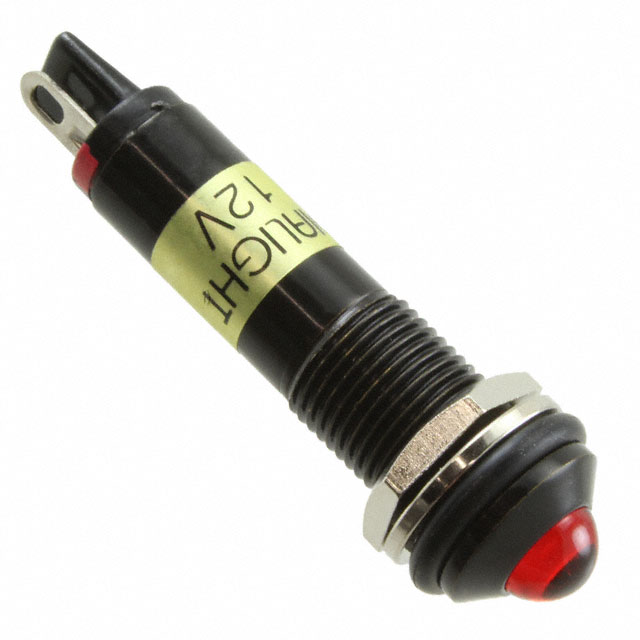

9MM HR/R PMI-12VDC W/O-RING

Search across all available documentation for this part.

Active

DIALIGHT

9MM HR/R PMI-12VDC W/O-RING

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Panel Indicator Red 12V 30mA Solder Lug

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	6791122331F	6791122 Series

Current	30 mA	30 mA
Ingress Protection	NEMA 4X, IP66	NEMA 4X, IP66
Lamp Color	Red	Red
Lens Size [diameter]	6 mm	6 mm
Lens Style	Round with Domed Top	Round with Domed Top
Millicandela Rating	485 mcd	485 - 2100 mcd
Panel Cutout Dimensions	-	0.37 in
Panel Cutout Dimensions	-	9.35 mm
Panel Cutout Dimensions [custom]	0.37 in	0.37 in
Panel Cutout Dimensions [custom]	9.4 mm	9.4 mm
Panel Cutout Shape	Round	Round
Ratings	DC	DC
Termination Style	Solder Lug	Solder Lug
Type	LED	LED
Viewing Angle	-	30 °
Voltage	12 V	6 - 24 V
Wavelength - Peak	-	624 nm

LED PANEL INDCATOR RED 24V

Part	Lens Size [diameter]	Lamp Color	Millicandela Rating	Termination Style	Viewing Angle	Type	Ratings	Current	Wavelength - Peak	Panel Cutout Shape	Ingress Protection	Voltage	Panel Cutout Dimensions [diameter]	Panel Cutout Dimensions [diameter]	Lens Style	Panel Cutout Dimensions [custom]	Panel Cutout Dimensions [custom]
DIALIGHT 6791122341F	6 mm	Red	2100 mcd	Solder Lug	30 °	LED	DC	30 mA	624 nm	Round	IP66, NEMA 4X	24 V	0.37 in	9.35 mm	Round with Domed Top
DIALIGHT 6791122321F	6 mm	Red	2100 mcd	Solder Lug	30 °	LED	DC	30 mA	624 nm	Round	IP66, NEMA 4X	6 V	0.37 in	9.35 mm	Round with Domed Top
DIALIGHT 6791122331F	6 mm	Red	485 mcd	Solder Lug		LED	DC	30 mA		Round	IP66, NEMA 4X	12 V			Round with Domed Top	0.37 in	9.4 mm
