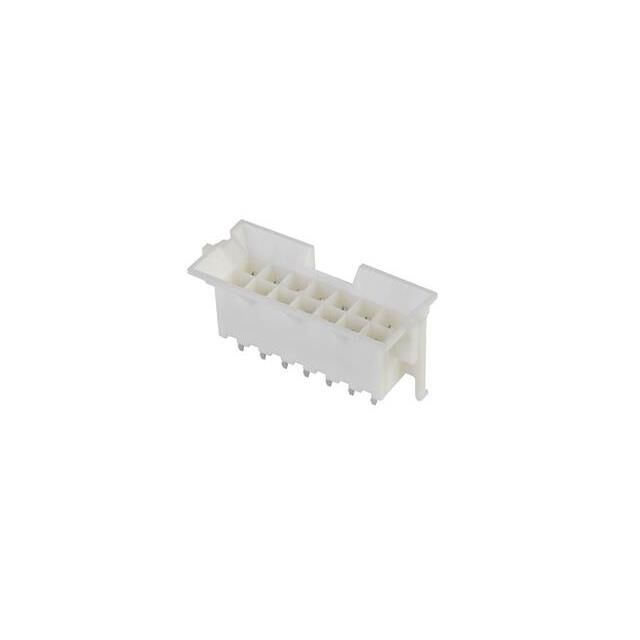

10138978-14111LF

Active

Amphenol ICC (FCI)

CONN PWR4.2 BMI

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN PWR4.2 BMI

Technical Specifications

Parameters and characteristics for this part

Specification	10138978-14111LF

Connector Type	Header
Contact Length - Post	3.5 mm
Contact Length - Post	0.138 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Push-Pull
Features	Board Lock, Keying Slot
Insulation Color	Natural
Insulation Height	14.1 mm
Insulation Height	0.555 in
Insulation Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Mounting Type	Through Hole
Number of Positions	14
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	4.2 mm
Pitch - Mating	0.165 in
Row Spacing - Mating	4.2 mm
Row Spacing - Mating	0.165 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	600 VAC

Part	Current Rating (Amps)	Material Flammability Rating	Voltage Rating	Contact Length - Post	Contact Length - Post	Insulation Height	Insulation Height	Number of Positions Loaded	Number of Rows	Connector Type	Features	Insulation Material	Row Spacing - Mating	Row Spacing - Mating	Shrouding	Insulation Color	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Mounting Type	Fastening Type	Contact Type	Termination	Pitch - Mating	Pitch - Mating	Contact Shape	Style
Amphenol ICC (FCI) 10138978-14111LF	Varies by Wire Gauge	UL94 V-2	600 VAC	3.5 mm	0.138 in	14.1 mm	0.555 in	All	2	Header	Board Lock Keying Slot	Polyamide (PA66) Nylon 6/6	4.2 mm	0.165 in	Shrouded - 4 Wall	Natural	14	-40 °C	105 ░C	Brass	Through Hole	Push-Pull	Male Pin	Solder	4.2 mm	0.165 in	Square	Board to Cable/Wire
