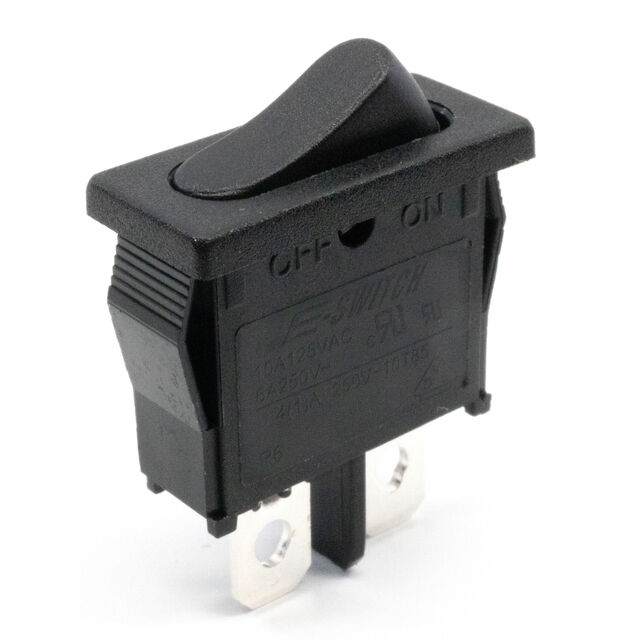

R6BBLKBLKEF
ActiveE-Switch
SWITCH ROCKER SPST-NO 10A 125V
Deep-Dive with AI
Search across all available documentation for this part.
R6BBLKBLKEF
ActiveE-Switch
SWITCH ROCKER SPST-NO 10A 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | R6BBLKBLKEF |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Concave (Curved) |
| Circuit | SPST-NO |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 10 A |
| Electrical Life | 10000 Cycles |
| Mechanical Life | 30000 Steps |
| Mounting Type | Panel Mount, Snap-In |
| Panel Cutout Dimensions [x] | 19.2 mm |
| Panel Cutout Dimensions [y] | 6.65 mm |
| Switch Function | Off-Mom |
| Termination Style | Quick Connect - 0.187" (4.7mm) |
| Voltage Rating - AC | 125 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.37 | |
| 10 | $ 2.13 | |||
| 25 | $ 2.01 | |||
| 50 | $ 1.92 | |||
| 100 | $ 1.82 | |||
| 300 | $ 1.75 | |||
| 600 | $ 1.62 | |||
| 1200 | $ 1.54 | |||
Description
General part information
R6BBLKBL Series
Rocker Switch SPST-NO 10A (AC) 125 V Panel Mount, Snap-In
