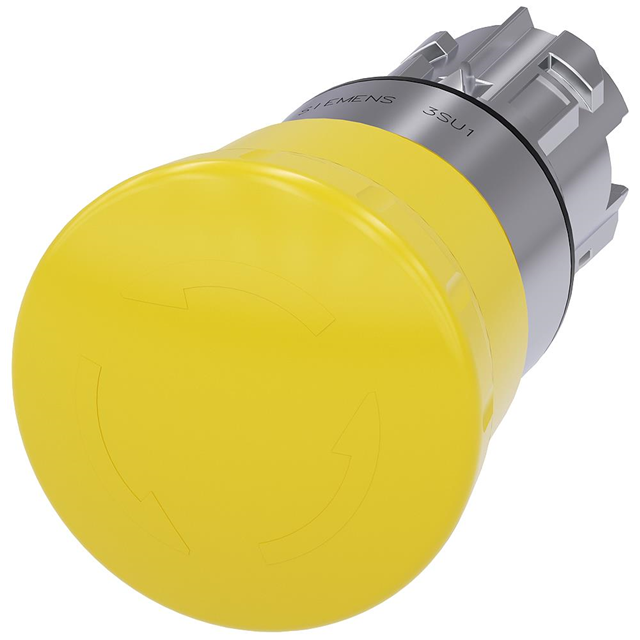

3SU10501HB300AA0

Active

Siemens

CONFIG SW BODY MUSH PB NON-ILLUM

Search across all available documentation for this part.

Active

Siemens

CONFIG SW BODY MUSH PB NON-ILLUM

Technical Specifications

Parameters and characteristics for this part

Specification	3SU10501HB300AA0

(Select First, Then Apply Filters) Compatible Series	22 mm
(Select First, Then Apply Filters) Compatible Series	Siemens
Actuator Type	Pushbutton, Mushroom
Illumination	Non-Illuminated
Panel Cutout Dimensions	22.3 mm
Requires	Contact Block(s)
Type	Maintained

...

Part	Type	Illumination	Panel Cutout Dimensions	Actuator Type	(Select First, Then Apply Filters) Compatible Series	(Select First, Then Apply Filters) Compatible Series	Requires
Siemens 3SU10501HB300AA0	Maintained	Non-Illuminated	22.3 mm	Pushbutton Mushroom	22 mm	Siemens	Contact Block(s)
Siemens 3SU10505BL210AA0	Maintained	Non-Illuminated	22.3 mm	Keylock	22 mm	Siemens	Contact Block(s)
Siemens 3SU10504HL110AA0	Maintained	Non-Illuminated	22.3 mm	Keylock	22 mm	Siemens	Contact Block(s)
Siemens 3SU10501CD100AA0	Momentary	Non-Illuminated	22.3 mm	Pushbutton Mushroom	22 mm	Siemens	Contact Block(s)
Siemens 3SU10505BN510AA0	Maintained Momentary	Non-Illuminated	22.3 mm	Keylock	22 mm	Siemens	Contact Block(s)
Siemens 3SU10504GL010AA0	Maintained	Non-Illuminated	22.3 mm	Keylock	22 mm	Siemens	Contact Block(s)
Siemens 3SU10505JF010AA0	Maintained	Non-Illuminated	22.3 mm	Keylock	22 mm	Siemens	Contact Block(s)
Siemens 3SU10503EC100AA0	Momentary	Non-Illuminated	22.3 mm	Toggle	22 mm	Siemens	Contact Block(s)
Siemens 3SU10507BE880AA0	Maintained	Non-Illuminated	22.3 mm	Joystick	22 mm	Siemens	Contact Block(s)
Siemens 3SU10504GC010AA0	Momentary	Non-Illuminated	22.3 mm	Keylock	22 mm	Siemens	Contact Block(s)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 43.77
LCSC	Piece	1	$ 13.04
