MF-USMD110-2

Obsolete

Bourns Inc.

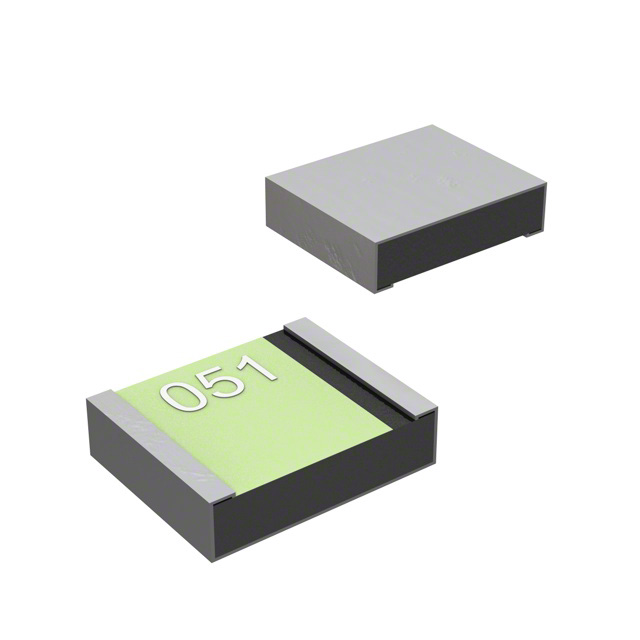

PTC RESET FUSE 6V 1.1A 1210

Search across all available documentation for this part.

Obsolete

Bourns Inc.

PTC RESET FUSE 6V 1.1A 1210

Technical Specifications

Parameters and characteristics for this part

Specification	MF-USMD110-2

Approval Agency	UR, CSA, TUV
Current - Hold (Ih) (Max) [Max]	1.1 A
Current - Max [Max]	40 A
Current - Trip (It)	2.2 A
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	1210
Package / Case	3225 Metric
Resistance - Initial (Ri) (Min) [Min]	50 mOhms
Resistance - Post Trip (R1) (Max) [Max]	210 mOhms
Size / Dimension [x]	0.127 in
Size / Dimension [x]	3.22 mm
Size / Dimension [y]	0.102 "
Size / Dimension [y]	2.58 mm
Thickness (Max)	0.48 mm
Thickness (Max) [Max]	0.019 in
Time to Trip	1 s
Type	Polymeric
Voltage - Max [Max]	6 V

Part	Resistance - Post Trip (R1) (Max) [Max]	Mounting Type	Approval Agency	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Type	Time to Trip	Current - Hold (Ih) (Max) [Max]	Current - Max [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Thickness (Max)	Thickness (Max) [Max]	Package / Case	Package / Case	Voltage - Max [Max]	Current - Trip (It)	Resistance - Initial (Ri) (Min) [Min]
Bourns Inc. MF-USMD110-2	210 mOhms	Surface Mount	CSA TUV UR	0.102 "	0.127 in	2.58 mm	3.22 mm	Polymeric	1 s	1.1 A	40 A	85 °C	-40 °C	0.48 mm	0.019 in	1210	3225 Metric	6 V	2.2 A	50 mOhms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Polymeric PTC Resettable Fuse 6V 1.1 A Ih Surface Mount 1210 (3225 Metric)
