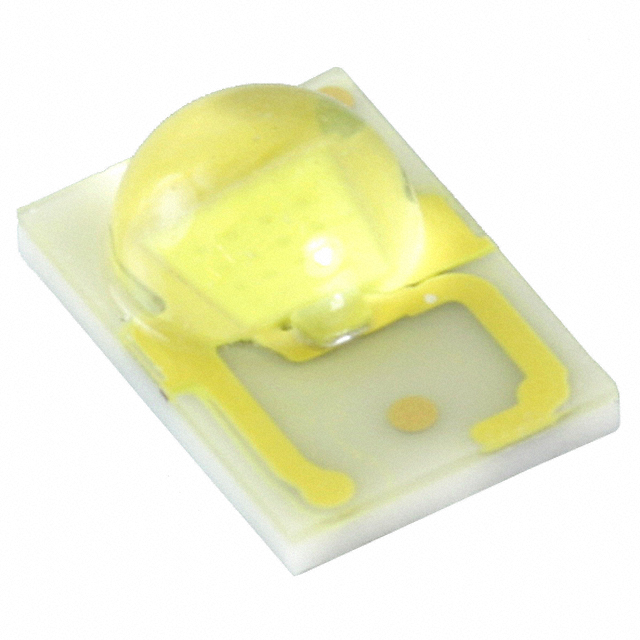

LED UNI-COLOR WHITE 220LM 4100K CHIP LED 3-PIN SMD T/R

Optoelectronics

NRND

LED UNI-COLOR WHITE 220LM 4100K CHIP LED 3-PIN SMD T/R

Technical Specifications

Parameters and characteristics for this part

Specification	LXML-PWN1-0120

CCT (K) Maximum	4500 K
CCT (K) Minimum	3500 K
Color	White, Neutral
CRI (Color Rendering Index) (Typ)	65
Current - Max	1 A
Current - Test	350 mA
Flux	124 lm
Height - Seated (Max)	0.083 in
Lumens/Watt	118 lm/W
Mounting Type	Surface Mount
Package / Case	1812 (4532 Metric)
Size / Dimension Length	0.177 in
Size / Dimension Width	0.12 in
Thermal Resistance of Package	10 °C/W
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	3 V

Part	Wavelength	Package Name	Voltage - Forward (Vf) (Typ)	Luminous Flux (Typical)	Package / Case	Mounting Type	Size / Dimension Width	Size / Dimension Length	Height - Seated (Max)	Current - Test	Color	Lumens/Watt	Current - Max	Temperature - Test	Viewing Angle	Flux	CRI (Color Rendering Index) (Typ)	CCT (K) Maximum	CCT (K) Minimum	Thermal Resistance of Package	Wavelength (Typ)	Wavelength (Minimum)	Wavelength (Nominal)	Wavelength (Maximum)
Lumileds LXML-PD01-0040	633 nm	1812	2.9 V	46 lm	1812 (4532 Metric)	Surface Mount	0.12 in	0.177 in	0.083 in	350 mA	Red	45 lm/W	700 mA	25 °C	125 °
Lumileds LXML-PB01-0023	473 nm	1812	2.95 V	28 lm	1812 (4532 Metric)	Surface Mount	0.12 in	0.177 in	0.083 in	350 mA	Blue	27 lm/W	1 A	25 °C	125 °
Lumileds LXML-PH01-0060	615 nm	1812	2.9 V	62 lm	1812 (4532 Metric)	Surface Mount	0.12 in	0.177 in	0.083 in	350 mA	Red-Orange	61 lm/W	700 mA	25 °C	125 °
Lumileds LXML-PWN1-0120			3 V		1812 (4532 Metric)	Surface Mount	0.12 in	0.177 in	0.083 in	350 mA	Neutral White	118 lm/W	1 A		120 °	124 lm	65	4500 K	3500 K	10 °C/W
Lumileds LXML-PM01-0090		SMD	2.9 V	95 lm	1812 (4532 Metric)	Surface Mount	0.12 in	0.177 in	0.083 in	350 mA	Green	94 lm/W	1 A	25 °C	125 °					10 °C/W	530 nm
Lumileds LXML-PF01		1812	1.8 V	260 mW	1812 (4532 Metric)	Surface Mount	0.12 in	0.177 in	0.083 in	350 mA	Red		700 mA	25 °C	125 °
Lumileds LXML-PM01-0130	530 nm	1812	3.21 V	102 lm	1812 (4532 Metric)	Surface Mount	0.12 in	0.177 in	0.083 in	350 mA	Green	91 lm/W	1 A	85 °C	125 °							520 nm	530 nm	540 nm
Lumileds LXML-PB02-0100		SMD			1812 (4532 Metric)	Surface Mount	0.12 in	0.177 in	0.083 in
