M80-8401745

Active

Harwin Inc.

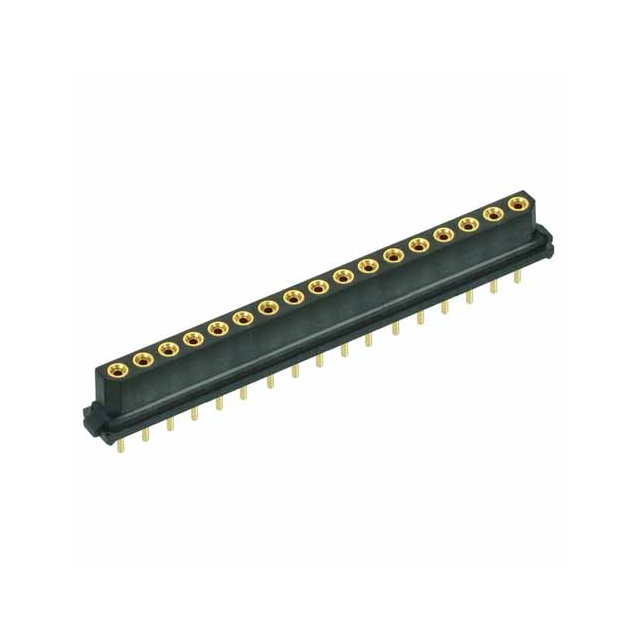

HEADER CONNECTOR,PCB MOUNT,PLUG,17 CONTACTS,SKT,0.079 PITCH,PC TAIL TERMINAL,GUIDE SLOT ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsM80, M83 Series Spec Sheet Datasheet +2

M80-8401745

Active

Harwin Inc.

HEADER CONNECTOR,PCB MOUNT,PLUG,17 CONTACTS,SKT,0.079 PITCH,PC TAIL TERMINAL,GUIDE SLOT ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsM80, M83 Series Spec Sheet Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M80-8401745

Applications	Automotive, Military, General Purpose
Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	12 µin
Contact Finish Thickness - Mating	0.3 µm
Contact Finish Thickness - Post	10 çin
Contact Finish Thickness - Post	0.25 çm
Contact Length - Post	3.2 mm
Contact Length - Post [x]	0.126 in
Contact Material	Beryllium Copper
Contact Shape	Circular
Contact Type	Female Socket
Fastening Type	Locking Ramp
Insulation Color	Black
Insulation Height [z]	5.14 mm
Insulation Height [z]	0.202 in
Insulation Material	Polyamide (PA46), Nylon 4/6, Glass Filled
Mated Stacking Heights	7.23 mm, 7.83 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	800 V

M80-840 Series

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Type	Connector Type	Contact Material	Contact Finish - Mating	Insulation Height [z]	Insulation Height [z]	Mated Stacking Heights	Contact Finish - Post	Fastening Type	Pitch - Mating [x]	Pitch - Mating [x]	Number of Rows	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Color	Number of Positions	Insulation Material	Number of Positions Loaded	Applications	Contact Length - Post	Contact Length - Post [x]	Contact Shape	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Material Flammability Rating	Style	Termination	Mounting Type
Harwin Inc. M80-8400242	12 µin	0.3 µm	Female Socket	Receptacle	Beryllium Copper	Gold	5.14 mm	0.202 in	7.23 mm 7.83 mm	Tin	Locking Ramp	0.079 in	2 mm	1	800 V	-55 °C	125 °C	Black	2	Glass Filled Nylon 4/6 Polyamide (PA46)	All	Automotive General Purpose Military	3.2 mm	0.126 in	Circular	137.8 Áin	3.5 Ám	UL94 V-0	Board to Board Cable	Solder	Through Hole
Harwin Inc. M80-8400645	12 µin	0.3 µm	Female Socket	Receptacle	Beryllium Copper	Gold	5.14 mm	0.202 in	7.23 mm 7.83 mm	Gold	Locking Ramp	0.079 in	2 mm	1	800 V	-55 °C	125 °C	Black	6	Glass Filled Nylon 4/6 Polyamide (PA46)	All	Automotive General Purpose Military	3.2 mm	0.126 in	Circular	10 çin	0.25 çm	UL94 V-0	Board to Board Cable	Solder	Through Hole
Harwin Inc. M80-8400642	12 µin	0.3 µm	Female Socket	Receptacle	Beryllium Copper	Gold	5.14 mm	0.202 in	7.23 mm 7.83 mm	Tin	Locking Ramp	0.079 in	2 mm	1	800 V	-55 °C	125 °C	Black	6	Glass Filled Nylon 4/6 Polyamide (PA46)	All	Automotive General Purpose Military	3.2 mm	0.126 in	Circular	137.8 Áin	3.5 Ám	UL94 V-0	Board to Board Cable	Solder	Through Hole
Harwin Inc. M80-8400745	12 µin	0.3 µm	Female Socket	Receptacle	Beryllium Copper	Gold	5.14 mm	0.202 in	7.23 mm 7.83 mm	Gold	Locking Ramp	0.079 in	2 mm	1	800 V	-55 °C	125 °C	Black	7	Glass Filled Nylon 4/6 Polyamide (PA46)	All	Automotive General Purpose Military	3.2 mm	0.126 in	Circular	10 çin	0.25 çm	UL94 V-0	Board to Board Cable	Solder	Through Hole
Harwin Inc. M80-8400445	12 µin	0.3 µm	Female Socket	Receptacle	Beryllium Copper	Gold	5.14 mm	0.202 in	7.23 mm 7.83 mm	Gold	Locking Ramp	0.079 in	2 mm	1	800 V	-55 °C	125 °C	Black	4	Glass Filled Nylon 4/6 Polyamide (PA46)	All	Automotive General Purpose Military	3.2 mm	0.126 in	Circular	10 çin	0.25 çm	UL94 V-0	Board to Board Cable	Solder	Through Hole
Harwin Inc. M80-8400742	12 µin	0.3 µm	Female Socket	Receptacle	Beryllium Copper	Gold	5.14 mm	0.202 in	7.23 mm 7.83 mm	Tin	Locking Ramp	0.079 in	2 mm	1	800 V	-55 °C	125 °C	Black	7	Glass Filled Nylon 4/6 Polyamide (PA46)	All	Automotive General Purpose Military	3.2 mm	0.126 in	Circular	137.8 Áin	3.5 Ám	UL94 V-0	Board to Board Cable	Solder	Through Hole
Harwin Inc. M80-8400345	12 µin	0.3 µm	Female Socket	Receptacle	Beryllium Copper	Gold	5.14 mm	0.202 in	7.23 mm 7.83 mm	Gold	Locking Ramp	0.079 in	2 mm	1	800 V	-55 °C	125 °C	Black		Glass Filled Nylon 4/6 Polyamide (PA46)	All	Automotive General Purpose Military	3.2 mm	0.126 in	Circular	10 çin	0.25 çm	UL94 V-0	Board to Board Cable	Solder	Through Hole
Harwin Inc. M80-8401745	12 µin	0.3 µm	Female Socket	Receptacle	Beryllium Copper	Gold	5.14 mm	0.202 in	7.23 mm 7.83 mm	Gold	Locking Ramp	0.079 in	2 mm	1	800 V	-55 °C	125 °C	Black		Glass Filled Nylon 4/6 Polyamide (PA46)	All	Automotive General Purpose Military	3.2 mm	0.126 in	Circular	10 çin	0.25 çm	UL94 V-0	Board to Board Cable	Solder	Through Hole
Harwin Inc. M80-8400545	12 µin	0.3 µm	Female Socket	Receptacle	Beryllium Copper	Gold	5.14 mm	0.202 in	7.23 mm 7.83 mm	Gold	Locking Ramp	0.079 in	2 mm	1	800 V	-55 °C	125 °C	Black		Glass Filled Nylon 4/6 Polyamide (PA46)	All	Automotive General Purpose Military	3.2 mm	0.126 in	Circular	10 çin	0.25 çm	UL94 V-0	Board to Board Cable	Solder	Through Hole
Harwin Inc. M80-8400442	12 µin	0.3 µm	Female Socket	Receptacle	Beryllium Copper	Gold	5.14 mm	0.202 in	7.23 mm 7.83 mm	Tin	Locking Ramp	0.079 in	2 mm	1	800 V	-55 °C	125 °C	Black	4	Glass Filled Nylon 4/6 Polyamide (PA46)	All	Automotive General Purpose Military	3.2 mm	0.126 in	Circular	137.8 Áin	3.5 Ám	UL94 V-0	Board to Board Cable	Solder	Through Hole

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	48	$ 11.37
Newark	Each	50	$ 12.39
		100	$ 12.07
		250	$ 10.82
		500	$ 10.20
		1000	$ 8.95
		2500	$ 8.51

Description

General part information

M80-840 Series

17 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold

Documents

Technical documentation and resources

M80, M83 Series Spec Sheet

Datasheet

M80-8401745

Deep-Dive with AI

M80-8401745

Deep-Dive with AI

Technical Specifications

M80-840 Series

Pricing

Description

M80-840 Series

Documents

M80, M83 Series Spec Sheet

Datasheet

M80-001

M80-0110001

M80-840 Series
