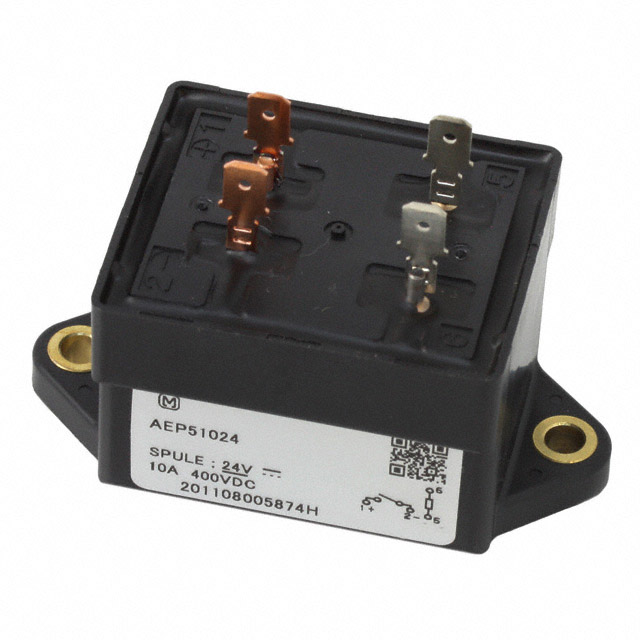

AEP51024
Panasonic Electric Works
RELAY AUTO SPST 10A 24V
Deep-Dive with AI
Search across all available documentation for this part.
AEP51024
Panasonic Electric Works
RELAY AUTO SPST 10A 24V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AEP51024 |
|---|---|
| Coil Current | 52 mA |
| Coil Resistance | 461.54 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 24 VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 10 A |
| Load - Max Switching [Max] | 2770 VA |
| Mounting Type | Chassis Mount |
| Must Operate Voltage | 18 VDC |
| Must Release Voltage | 1.92 VDC |
| Operate Time | 50 ms |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 30 ms |
| Seal Rating | Sealed - Hermetically |
| Switching Voltage | 400 VDC, 277 VAC |
| Termination Style | Quick Connect - 0.187" (4.7mm) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 112.24 | |
| 10 | $ 106.01 | |||
| 25 | $ 99.77 | |||
| 50 | $ 93.54 | |||
| 100 | $ 87.30 | |||
Description
General part information
AEP510 Series
General Purpose Relay SPST-NO (1 Form A) 24VDC Coil Chassis Mount
