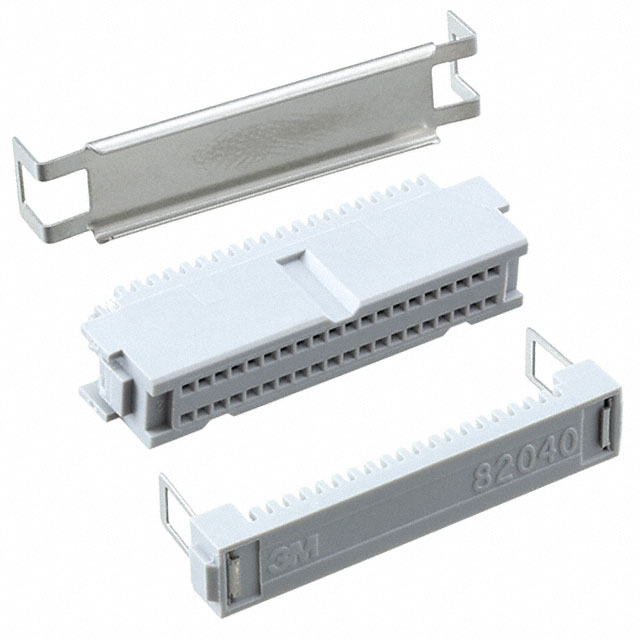

82040-6006RB

Active

3M (TC)

IDC CONNECTOR, IDC RECEPTACLE, FEMALE, 1.27 MM, 2 ROW, 40 CONTACTS, CABLE MOUNT

Search across all available documentation for this part.

Active

3M (TC)

IDC CONNECTOR, IDC RECEPTACLE, FEMALE, 1.27 MM, 2 ROW, 40 CONTACTS, CABLE MOUNT

Technical Specifications

Parameters and characteristics for this part

Part	Features	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Number of Positions	Contact Finish	Wire Gauge	Color	Cable Termination	Number of Rows	Row Spacing [x]	Row Spacing	Mounting Type	Wire Type	Connector Type	Contact Type
3M (TC) 82040-6006	Feed Through Strain Relief	0.76 Ám	30 Áin	0.05 in	1.27 mm	40	Gold	30 AWG	Gray	IDC	2	0.1 in	2.54 mm	Free Hanging (In-Line)	Ribbon Cable	Receptacle	Female Socket
3M (TC) 82040-6006RB	Feed Through Strain Relief	0.76 Ám	30 Áin	0.05 in	1.27 mm	40	Gold	30 AWG	Gray	IDC	2	0.1 in	2.54 mm	Free Hanging (In-Line)	Ribbon Cable	Receptacle	Female Socket
3M (TC) 82040-6000	Feed Through	0.76 Ám	30 Áin	0.05 in	1.27 mm	40	Gold	30 AWG	Gray	IDC	2	0.1 in	2.54 mm	Free Hanging (In-Line)	Ribbon Cable	Receptacle	Female Socket

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

40 Position Rectangular Receptacle Connector IDC Gold 30 AWG
