4-794679-0
ActiveTE Connectivity AMP Connectors
CONN HEADER R/A 10POS 3MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
4-794679-0
ActiveTE Connectivity AMP Connectors
CONN HEADER R/A 10POS 3MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 4-794679-0 | 794679 Series |
|---|---|---|
| Applications | General Purpose | General Purpose |
| Connector Type | Header | Header |
| Contact Finish - Mating | Gold | Gold, Gold or Gold-Palladium |
| Contact Finish - Post | Tin | Tin, Tin-Lead |
| Contact Finish Thickness - Mating | 30 Áin | 30 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness - Post | 2.54 µm | 2.54 µm |
| Contact Finish Thickness - Post | 100 µin | 100 µin |
| Contact Material | Brass | Brass |
| Contact Shape | Square | Square |
| Contact Type | Male Pin | Male Pin |
| Current Rating (Amps) | Varies by Wire Gauge | Varies by Wire Gauge |
| Fastening Type | Locking Ramp | Locking Ramp |
| Insulation Color | Black | Black |
| Insulation Height | 7.37 mm | 7.37 mm |
| Insulation Height | 0.29 in | 0.29 in |
| Insulation Material | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle |
| Number of Positions | 10 | 2 - 24 |
| Number of Positions | - | 16 |
| Number of Positions Loaded | All | All |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Pitch - Mating | 0.118 in | 0.118 in |
| Pitch - Mating | 3 mm | 3 mm |
| Row Spacing - Mating | 3 mm | 3 mm |
| Row Spacing - Mating | 0.118 in | 0.118 in |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Style | Board to Cable/Wire | Board to Cable/Wire |
| Termination | Solder | Solder |
| Voltage Rating | 250 VDC | 250 VDC |
794679 Series
CONN HEADER R/A 12POS 3MM
| Part | Contact Shape | Insulation Color | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Contact Finish - Post | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Connector Type | Shrouding | Contact Finish - Mating | Number of Rows | Pitch - Mating | Pitch - Mating | Fastening Type | Row Spacing - Mating | Row Spacing - Mating | Insulation Height | Insulation Height | Mounting Type | Current Rating (Amps) | Termination | Material Flammability Rating | Insulation Material | Number of Positions Loaded | Contact Type | Number of Positions | Style | Voltage Rating | Applications | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 4-794679-2 | Square | Black | -40 °C | 105 ░C | Brass | Tin | 2.54 µm | 100 µin | Header | Shrouded - 4 Wall | Gold | 2 | 0.118 in | 3 mm | Locking Ramp | 3 mm | 0.118 in | 7.37 mm | 0.29 in | Through Hole, Right Angle | Varies by Wire Gauge | Solder | UL94 V-0 | Nylon, Polyamide (PA) | All | Male Pin | 12 | Board to Cable/Wire | 250 VDC | General Purpose | 30 Áin | 0.76 Ám | |
TE Connectivity AMP Connectors 794679-4 | Square | Black | -40 °C | 105 ░C | Brass | Tin-Lead | 2.54 µm | 100 µin | Header | Shrouded - 4 Wall | Gold | 2 | 0.118 in | 3 mm | Locking Ramp | 3 mm | 0.118 in | 7.37 mm | 0.29 in | Through Hole, Right Angle | Varies by Wire Gauge | Solder | UL94 V-0 | Nylon, Polyamide (PA) | All | Male Pin | 4 | Board to Cable/Wire | 250 VDC | General Purpose | 30 Áin | 0.76 Ám | |
TE Connectivity AMP Connectors 5-794679-4 | Square | Black | -40 °C | 105 ░C | Brass | Tin | 2.54 µm | 100 µin | Header | Shrouded - 4 Wall | Gold | 2 | 0.118 in | 3 mm | Locking Ramp | 3 mm | 0.118 in | 7.37 mm | 0.29 in | Through Hole, Right Angle | Varies by Wire Gauge | Solder | UL94 V-0 | Nylon, Polyamide (PA) | All | Male Pin | 24 | Board to Cable/Wire | 250 VDC | General Purpose | 30 Áin | 0.76 Ám | |
TE Connectivity AMP Connectors 794679-2 | Square | Black | -40 °C | 105 ░C | Brass | Tin-Lead | 2.54 µm | 100 µin | Header | Shrouded - 4 Wall | Gold | 2 | Locking Ramp | 3 mm | 0.118 in | 7.37 mm | 0.29 in | Through Hole, Right Angle | Varies by Wire Gauge | Solder | UL94 V-0 | Nylon, Polyamide (PA) | All | Male Pin | 2 | Board to Cable/Wire | 250 VDC | General Purpose | 30 Áin | 0.76 Ám | |||
TE Connectivity AMP Connectors 4-794679-4 | Square | Black | -40 °C | 105 ░C | Brass | Tin | 2.54 µm | 100 µin | Header | Shrouded - 4 Wall | Gold | 2 | 0.118 in | 3 mm | Locking Ramp | 3 mm | 0.118 in | 7.37 mm | 0.29 in | Through Hole, Right Angle | Varies by Wire Gauge | Solder | UL94 V-0 | Nylon, Polyamide (PA) | All | Male Pin | 14 | Board to Cable/Wire | 250 VDC | General Purpose | 30 Áin | 0.76 Ám | |
TE Connectivity AMP Connectors 4-794679-0 | Square | Black | -40 °C | 105 ░C | Brass | Tin | 2.54 µm | 100 µin | Header | Shrouded - 4 Wall | Gold | 2 | 0.118 in | 3 mm | Locking Ramp | 3 mm | 0.118 in | 7.37 mm | 0.29 in | Through Hole, Right Angle | Varies by Wire Gauge | Solder | UL94 V-0 | Nylon, Polyamide (PA) | All | Male Pin | 10 | Board to Cable/Wire | 250 VDC | General Purpose | 30 Áin | 0.76 Ám | |
TE Connectivity AMP Connectors 4-794679-6 | Square | Black | -40 °C | 105 ░C | Brass | Tin | 2.54 µm | 100 µin | Header | Shrouded - 4 Wall | Gold | 2 | 0.118 in | 3 mm | Locking Ramp | 3 mm | 0.118 in | 7.37 mm | 0.29 in | Through Hole, Right Angle | Varies by Wire Gauge | Solder | UL94 V-0 | Nylon, Polyamide (PA) | All | Male Pin | Board to Cable/Wire | 250 VDC | General Purpose | 30 Áin | 0.76 Ám | 16 | |
TE Connectivity AMP Connectors 794679-6 | Square | Black | -40 °C | 105 ░C | Brass | Tin-Lead | 2.54 µm | 100 µin | Header | Shrouded - 4 Wall | Gold | 2 | 0.118 in | 3 mm | Locking Ramp | 3 mm | 0.118 in | 7.37 mm | 0.29 in | Through Hole, Right Angle | Varies by Wire Gauge | Solder | UL94 V-0 | Nylon, Polyamide (PA) | All | Male Pin | 6 | Board to Cable/Wire | 250 VDC | General Purpose | 30 Áin | 0.76 Ám | |
TE Connectivity AMP Connectors 3-794679-2 | Square | Black | -40 °C | 105 ░C | Brass | Tin | 2.54 µm | 100 µin | Header | Shrouded - 4 Wall | Gold or Gold-Palladium | 2 | Locking Ramp | 3 mm | 0.118 in | 7.37 mm | 0.29 in | Through Hole, Right Angle | Varies by Wire Gauge | Solder | UL94 V-0 | Nylon, Polyamide (PA) | All | Male Pin | 2 | Board to Cable/Wire | 250 VDC | General Purpose | 30 Áin | 0.76 Ám |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 2.39 | |
| 10 | $ 2.13 | |||
| 195 | $ 1.91 | |||
Description
General part information
794679 Series

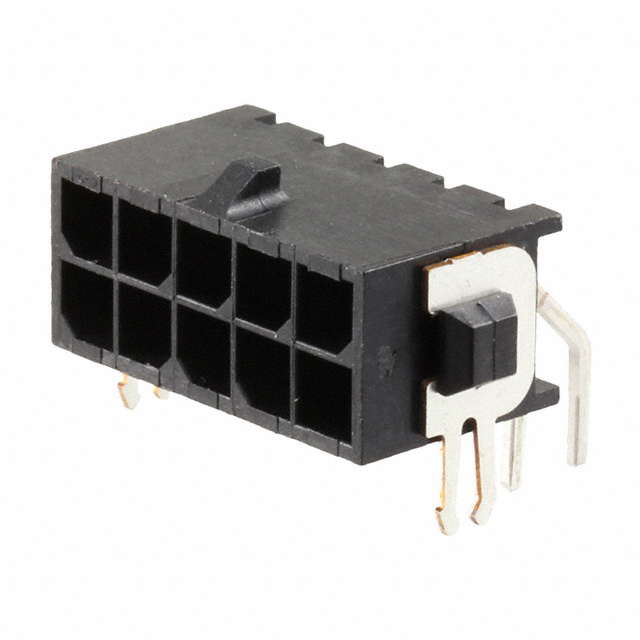

Connector Header Through Hole, Right Angle 10 position 0.118" (3.00mm)
Documents
Technical documentation and resources
