3-794679-2

Active

TE Connectivity AMP Connectors

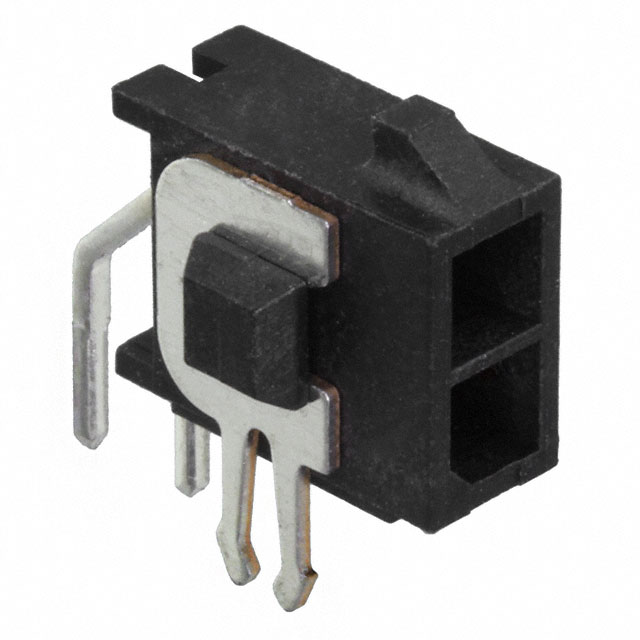

CONN HEADER R/A 2POS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3-794679-2

Active

TE Connectivity AMP Connectors

CONN HEADER R/A 2POS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 1.61
		10	$ 1.36
		100	$ 1.16
		533	$ 1.03
		1066	$ 0.98
		5330	$ 0.88
		10127	$ 0.84

Description

General part information

794679 Series

Connector Header Through Hole, Right Angle 2 position

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	3-794679-2	794679 Series

Applications	General Purpose	General Purpose
Connector Type	Header	Header
Contact Finish - Mating	Gold or Gold-Palladium	Gold, Gold or Gold-Palladium
Contact Finish - Post	Tin	Tin, Tin-Lead
Contact Finish Thickness - Mating	30 Áin	30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.76 Ám
Contact Finish Thickness - Post	2.54 µm	2.54 µm
Contact Finish Thickness - Post	100 µin	100 µin
Contact Material	Brass	Brass
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Locking Ramp	Locking Ramp
Insulation Color	Black	Black
Insulation Height	7.37 mm	7.37 mm
Insulation Height	0.29 in	0.29 in
Insulation Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Number of Positions	2	2 - 24
Number of Positions	-	16
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch - Mating	-	0.118 in
Pitch - Mating	-	3 mm
Row Spacing - Mating	3 mm	3 mm
Row Spacing - Mating	0.118 in	0.118 in
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder
Voltage Rating	250 VDC	250 VDC

794679 Series

CONN HEADER R/A 12POS 3MM

Part	Contact Shape	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Contact Finish - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Connector Type	Shrouding	Contact Finish - Mating	Number of Rows	Pitch - Mating	Pitch - Mating	Fastening Type	Row Spacing - Mating	Row Spacing - Mating	Insulation Height	Insulation Height	Mounting Type	Current Rating (Amps)	Termination	Material Flammability Rating	Insulation Material	Number of Positions Loaded	Contact Type	Number of Positions	Style	Voltage Rating	Applications	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions
TE Connectivity AMP Connectors 4-794679-2	Square	Black	-40 °C	105 ░C	Brass	Tin	2.54 µm	100 µin	Header	Shrouded - 4 Wall	Gold	2	0.118 in	3 mm	Locking Ramp	3 mm	0.118 in	7.37 mm	0.29 in	Through Hole, Right Angle	Varies by Wire Gauge	Solder	UL94 V-0	Nylon, Polyamide (PA)	All	Male Pin	12	Board to Cable/Wire	250 VDC	General Purpose	30 Áin	0.76 Ám
TE Connectivity AMP Connectors 794679-4	Square	Black	-40 °C	105 ░C	Brass	Tin-Lead	2.54 µm	100 µin	Header	Shrouded - 4 Wall	Gold	2	0.118 in	3 mm	Locking Ramp	3 mm	0.118 in	7.37 mm	0.29 in	Through Hole, Right Angle	Varies by Wire Gauge	Solder	UL94 V-0	Nylon, Polyamide (PA)	All	Male Pin	4	Board to Cable/Wire	250 VDC	General Purpose	30 Áin	0.76 Ám
TE Connectivity AMP Connectors 5-794679-4	Square	Black	-40 °C	105 ░C	Brass	Tin	2.54 µm	100 µin	Header	Shrouded - 4 Wall	Gold	2	0.118 in	3 mm	Locking Ramp	3 mm	0.118 in	7.37 mm	0.29 in	Through Hole, Right Angle	Varies by Wire Gauge	Solder	UL94 V-0	Nylon, Polyamide (PA)	All	Male Pin	24	Board to Cable/Wire	250 VDC	General Purpose	30 Áin	0.76 Ám
TE Connectivity AMP Connectors 794679-2	Square	Black	-40 °C	105 ░C	Brass	Tin-Lead	2.54 µm	100 µin	Header	Shrouded - 4 Wall	Gold	2			Locking Ramp	3 mm	0.118 in	7.37 mm	0.29 in	Through Hole, Right Angle	Varies by Wire Gauge	Solder	UL94 V-0	Nylon, Polyamide (PA)	All	Male Pin	2	Board to Cable/Wire	250 VDC	General Purpose	30 Áin	0.76 Ám
TE Connectivity AMP Connectors 4-794679-4	Square	Black	-40 °C	105 ░C	Brass	Tin	2.54 µm	100 µin	Header	Shrouded - 4 Wall	Gold	2	0.118 in	3 mm	Locking Ramp	3 mm	0.118 in	7.37 mm	0.29 in	Through Hole, Right Angle	Varies by Wire Gauge	Solder	UL94 V-0	Nylon, Polyamide (PA)	All	Male Pin	14	Board to Cable/Wire	250 VDC	General Purpose	30 Áin	0.76 Ám
TE Connectivity AMP Connectors 4-794679-0	Square	Black	-40 °C	105 ░C	Brass	Tin	2.54 µm	100 µin	Header	Shrouded - 4 Wall	Gold	2	0.118 in	3 mm	Locking Ramp	3 mm	0.118 in	7.37 mm	0.29 in	Through Hole, Right Angle	Varies by Wire Gauge	Solder	UL94 V-0	Nylon, Polyamide (PA)	All	Male Pin	10	Board to Cable/Wire	250 VDC	General Purpose	30 Áin	0.76 Ám
TE Connectivity AMP Connectors 4-794679-6	Square	Black	-40 °C	105 ░C	Brass	Tin	2.54 µm	100 µin	Header	Shrouded - 4 Wall	Gold	2	0.118 in	3 mm	Locking Ramp	3 mm	0.118 in	7.37 mm	0.29 in	Through Hole, Right Angle	Varies by Wire Gauge	Solder	UL94 V-0	Nylon, Polyamide (PA)	All	Male Pin		Board to Cable/Wire	250 VDC	General Purpose	30 Áin	0.76 Ám	16
TE Connectivity AMP Connectors 794679-6	Square	Black	-40 °C	105 ░C	Brass	Tin-Lead	2.54 µm	100 µin	Header	Shrouded - 4 Wall	Gold	2	0.118 in	3 mm	Locking Ramp	3 mm	0.118 in	7.37 mm	0.29 in	Through Hole, Right Angle	Varies by Wire Gauge	Solder	UL94 V-0	Nylon, Polyamide (PA)	All	Male Pin	6	Board to Cable/Wire	250 VDC	General Purpose	30 Áin	0.76 Ám
TE Connectivity AMP Connectors 3-794679-2	Square	Black	-40 °C	105 ░C	Brass	Tin	2.54 µm	100 µin	Header	Shrouded - 4 Wall	Gold or Gold-Palladium	2			Locking Ramp	3 mm	0.118 in	7.37 mm	0.29 in	Through Hole, Right Angle	Varies by Wire Gauge	Solder	UL94 V-0	Nylon, Polyamide (PA)	All	Male Pin	2	Board to Cable/Wire	250 VDC	General Purpose	30 Áin	0.76 Ám
