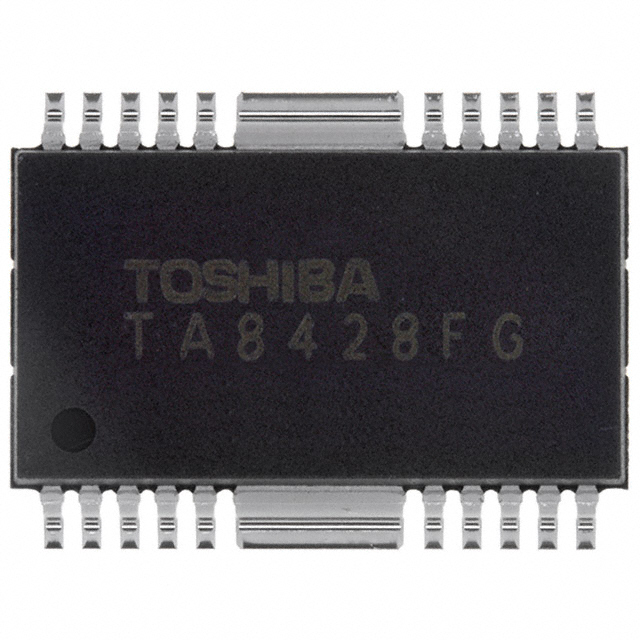

TA8428FG(O,EL)

Obsolete

Toshiba Semiconductor and Storage

IC MOTOR DRIVER 7V-27V 20HSOP

Search across all available documentation for this part.

Obsolete

Toshiba Semiconductor and Storage

IC MOTOR DRIVER 7V-27V 20HSOP

Technical Specifications

Parameters and characteristics for this part

Specification	TA8428FG(O,EL)

Applications	General Purpose
Current - Output	800 mA
Function	Driver - Fully Integrated, Control and Power Stage
Interface	Parallel
Motor Type - AC, DC	Brushed DC
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 °C
Output Configuration	Half Bridge (2)
Package / Case	2 Heat Tabs, 20-BSOP
Package / Case	0.346 in
Package / Case	8.8 mm
Supplier Device Package	20-HSOP
Technology	Bipolar
Voltage - Load [Max]	27 V
Voltage - Load [Min]	7 V
Voltage - Supply [Max]	27 V
Voltage - Supply [Min]	7 V

Part	Applications	Mounting Type	Current - Output	Voltage - Supply [Min]	Voltage - Supply [Max]	Output Configuration	Supplier Device Package	Technology	Package / Case	Package / Case	Package / Case	Motor Type - AC, DC	Interface	Voltage - Load [Min]	Voltage - Load [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Function
Toshiba Semiconductor and Storage TA8428FG(O,EL)	General Purpose	Surface Mount	800 mA	7 V	27 V	Half Bridge (2)	20-HSOP	Bipolar	2 Heat Tabs 20-BSOP	0.346 in	8.8 mm	Brushed DC	Parallel	7 V	27 V	-30 °C	85 °C	Driver - Fully Integrated Control and Power Stage

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Motor Driver Bipolar Parallel 20-HSOP
