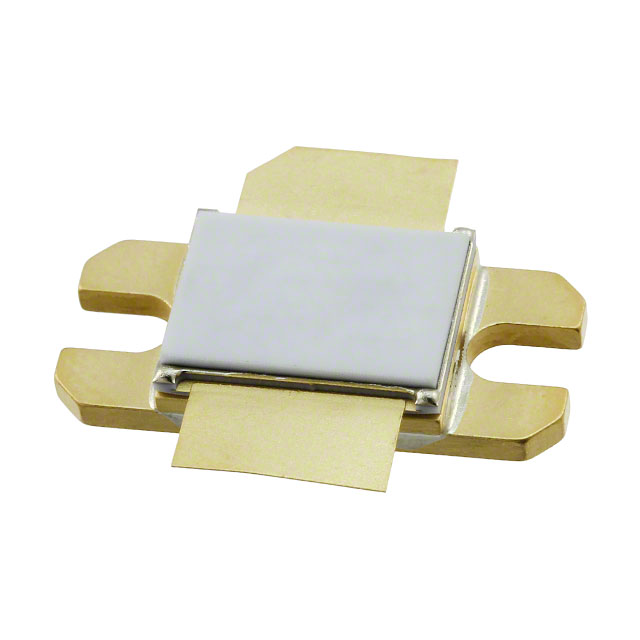

MAPR-000912-500S00

Active

MACOM Technology Solutions

RF TRANS NPN 80V

Search across all available documentation for this part.

Active

MACOM Technology Solutions

RF TRANS NPN 80V

Technical Specifications

Parameters and characteristics for this part

Specification	MAPR-000912-500S00

Current - Collector (Ic) (Max) [Max]	52.5 A
Gain [Max]	9.77 dB
Gain [Min]	9.44 dB
Mounting Type	Chassis Mount
Operating Temperature	200 °C
Power - Max [Max]	500 W
Transistor Type	NPN
Voltage - Collector Emitter Breakdown (Max)	80 V

Part	Operating Temperature	Voltage - Collector Emitter Breakdown (Max)	Power - Max [Max]	Gain [Max]	Gain [Min]	Mounting Type	Current - Collector (Ic) (Max) [Max]	Transistor Type
MACOM Technology Solutions MAPR-000912-500S00	200 °C	80 V	500 W	9.77 dB	9.44 dB	Chassis Mount	52.5 A	NPN

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	20	$ 680.40

General part information

RF Transistor NPN 80V 52.5A 500W Chassis Mount
