392-014-542-203

Active

EDAC Inc.

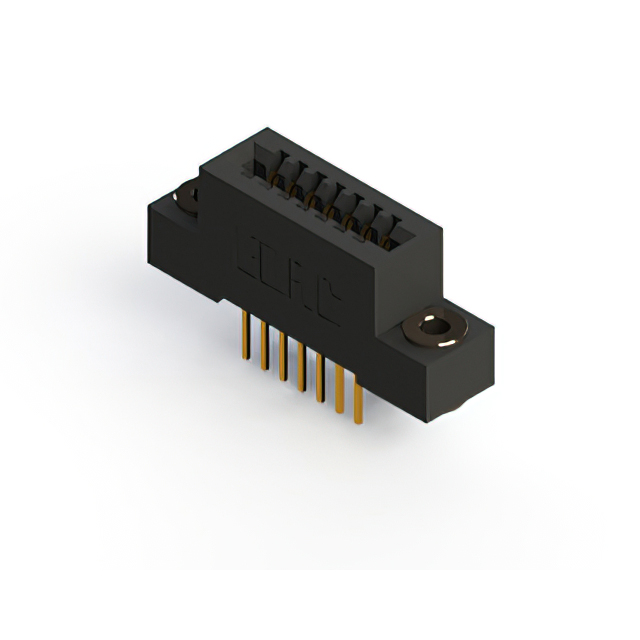

2.54MM STRAIGHT 14P -40℃~+105℃ PLUGIN,P=2.54MM EDGEBOARD CONNECTORS ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

392-014-542-203

Active

EDAC Inc.

2.54MM STRAIGHT 14P -40℃~+105℃ PLUGIN,P=2.54MM EDGEBOARD CONNECTORS ROHS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	392-014-542-203

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Floating Bobbin, Flush Mount
Flange Feature [diameter]	0.116 in
Flange Feature [diameter]	2.95 mm
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	14
Number of Positions/Bay/Row [custom]	7
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Wire Wrap
Termination Rows	2

392-014 Series

...

Part	Contact Material	Material - Insulation	Card Type	Number of Positions/Bay/Row [custom]	Number of Rows	Termination	Pitch [x]	Pitch [x]	Read Out	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Termination Rows	Contact Type	Contact Finish	Gender	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Mounting Type	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Color	Features
EDAC Inc. 392-014-520-103	Copper Alloy	Polyester Thermoplastic	Non Specified - Single Edge	14	1	Solder	2.54 mm	0.1 in	Single	0.116 in	Floating Bobbin Flush Mount	2.95 mm	-40 °C	105 ░C	1	Cantilever	Gold	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	14	10 Áin	0.25 Ám	Black
EDAC Inc. 392-014-524-104	Copper Alloy	Polyester Thermoplastic	Non Specified - Single Edge	14	1	Solder	2.54 mm	0.1 in	Single	0.156 in	Flush Mount Top Opening Unthreaded	3.96 mm	-40 °C	105 ░C	1	Cantilever	Gold	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	14	10 Áin	0.25 Ám	Black
EDAC Inc. 392-014-540-201	Copper Alloy	Polyester Thermoplastic	Non Specified - Dual Edge	7	2	Wire Wrap	2.54 mm	0.1 in	Dual				-40 °C	105 ░C	2	Cantilever	Gold	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	14	10 Áin	0.25 Ám	Black
EDAC Inc. 392-014-542-203	Copper Alloy	Polyester Thermoplastic	Non Specified - Dual Edge	7	2	Wire Wrap	2.54 mm	0.1 in	Dual	0.116 in	Floating Bobbin Flush Mount	2.95 mm	-40 °C	105 ░C	2	Cantilever	Gold	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	14	10 Áin	0.25 Ám	Black
EDAC Inc. 392-014-558-207	Copper Alloy	Polyester Thermoplastic	Non Specified - Dual Edge	7	2	Solder Wire Wrap	2.54 mm	0.1 in	Dual		Flush Mount M3 Threaded Insert Top Opening		-40 °C	105 ░C	2	Cantilever	Gold	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole Right Angle	14	10 Áin	0.25 Ám	Black
EDAC Inc. 392-014-541-207	Copper Alloy	Polyester Thermoplastic	Non Specified - Dual Edge	7	2	Wire Wrap	2.54 mm	0.1 in	Dual		Flush Mount M3 Threaded Insert Top Opening		-40 °C	105 ░C	2	Cantilever	Gold	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	14	10 Áin	0.25 Ám	Black
EDAC Inc. 392-014-559-112	Copper Alloy	Polyester Thermoplastic	Non Specified - Single Edge	14	1	Solder Wire Wrap	2.54 mm	0.1 in	Single	0.128 "	Flush Mount Side Opening Unthreaded	3.25 mm	-40 °C	105 ░C	1	Cantilever	Gold	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole Right Angle	14	10 Áin	0.25 Ám	Black
EDAC Inc. 392-014-544-201	Copper Alloy	Polyester Thermoplastic	Non Specified - Dual Edge	7	2	Wire Wrap	2.54 mm	0.1 in	Dual				-40 °C	105 ░C	2	Cantilever	Gold	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	14	10 Áin	0.25 Ám	Black
EDAC Inc. 392-014-556-204	Copper Alloy	Polyester Thermoplastic	Non Specified - Dual Edge	7	2	Solder	2.54 mm	0.1 in	Dual	0.156 in	Flush Mount Top Opening Unthreaded	3.96 mm	-40 °C	105 ░C	2	Cantilever	Gold	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Board Edge Straddle Mount	14	10 Áin	0.25 Ám	Black	Card Extender
EDAC Inc. 392-014-558-108	Copper Alloy	Polyester Thermoplastic	Non Specified - Single Edge	14	1	Solder Wire Wrap	2.54 mm	0.1 in	Single		4-40 Flush Mount Threaded Insert Top Opening		-40 °C	105 ░C	1	Cantilever	Gold	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole Right Angle	14	10 Áin	0.25 Ám	Black

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 8.08
LCSC	Piece	1	$ 10.43
		200	$ 4.04
		500	$ 3.90
		1000	$ 3.82
Newark	Each	25	$ 15.75
		50	$ 15.24
		100	$ 14.23
		250	$ 13.72
		500	$ 12.96

Description

General part information

392-014 Series

14 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
