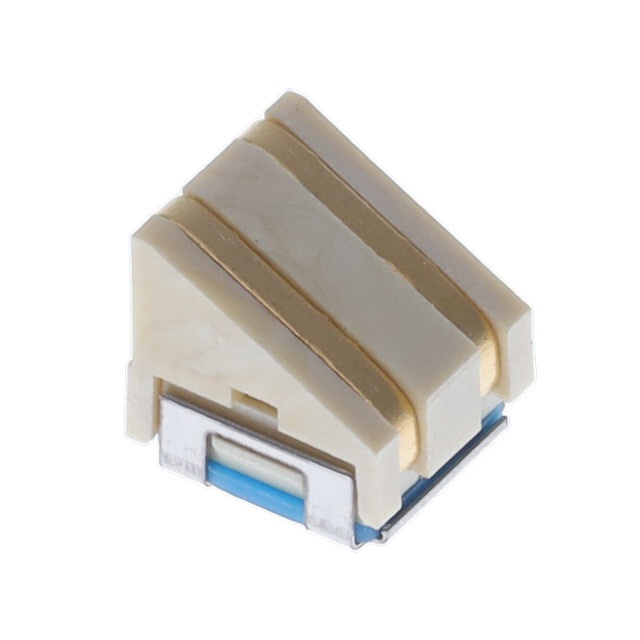

7914S-1-024E
ActiveBourns Inc.
SWITCH TACTILE SPST-NO 0.1A 16V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
7914S-1-024E
ActiveBourns Inc.
SWITCH TACTILE SPST-NO 0.1A 16V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 7914S-1-024E |
|---|---|
| Actuator Material | Silicone Rubber |
| Actuator Orientation | Side Actuated |
| Actuator Type | Flush |
| Circuit | SPST-NO |
| Contact Rating @ Voltage | 16 VAC/DC, 0.1 A |
| Illumination | Non-Illuminated |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mechanical Life | 100000 Cycles |
| Mounting Type | Surface Mount, Right Angle |
| Operating Force | 300 gf |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Outline [x] | 5 mm |
| Outline [y] | 5.18 mm |
| Switch Function | Off-Mom |
| Termination Style | SMD (SMT) Tab |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.44 | |
| 10 | $ 1.39 | |||
| 25 | $ 1.31 | |||
| 100 | $ 1.13 | |||
| Digi-Reel® | 1 | $ 1.44 | ||
| 10 | $ 1.39 | |||
| 25 | $ 1.31 | |||
| 100 | $ 1.13 | |||
| Tape & Reel (TR) | 200 | $ 1.13 | ||
| 400 | $ 1.03 | |||
| 600 | $ 0.96 | |||
| 1000 | $ 0.89 | |||
| 5000 | $ 0.75 | |||
| 10000 | $ 0.69 | |||
Description
General part information
7914S Series
Tactile Switch SPST-NO Side Actuated Surface Mount, Right Angle
