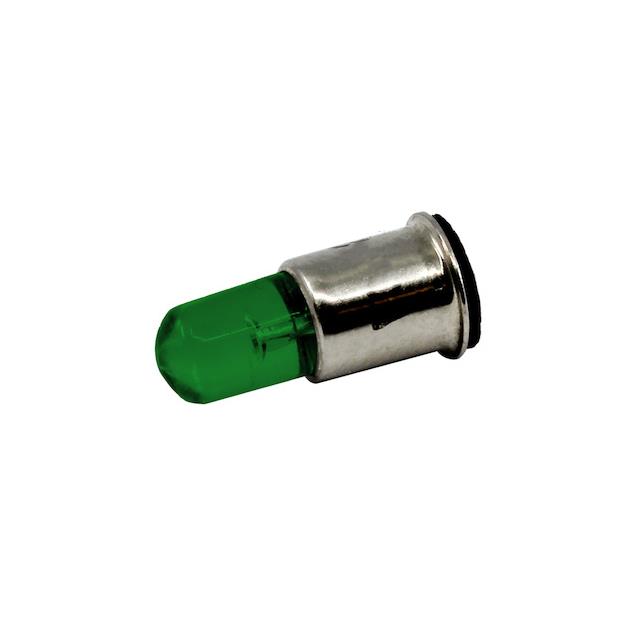

MF200-BR5H

Active

Visual Communications Company - VCC

LED LAMP T-1 3/4 FLANGE 5H SUB R

MF200-BR5H

Active

Visual Communications Company - VCC

LED LAMP T-1 3/4 FLANGE 5H SUB R

Description Specifications Series Pricing CAD Documents

Description

General part information

MF200 Series

LED Lamp Replacement Midget Flange 5V T - 1 3/4

Technical Specifications

Parameters and characteristics for this part

Specification	MF200-BR5H

Applications	General Purpose Lighting
Base Type	Midget Flange
Can Replace Lamps	Multiple Midget Flange Base Lamps
Configuration	Single
Size / Dimension	T
Size / Dimension Length	1.75
Size / Dimension Thickness	1.75
Voltage - Forward (Vf) (Typ)	5 V

MF200 Series

...

Part	Applications	Base Type	Configuration	Can Replace Lamps	Voltage - Forward (Vf) (Typ)	Millicandela Rating	Color	Wavelength	Size / Dimension Thickness	Size / Dimension	Size / Dimension Length
Visual Communications Company - VCC MF200C-NFR28H	General Purpose Lighting	Midget Flange	Single	Multiple Midget Flange Base Lamps	28 V	780 mcd	Red	634 nm	1.75	T	1.75
Visual Communications Company - VCC MF200-BR5H	General Purpose Lighting	Midget Flange	Single	Multiple Midget Flange Base Lamps	5 V				1.75	T	1.75
Visual Communications Company - VCC MF200-NFR2-R-	General Purpose Lighting	Midget Flange	Single	Multiple Midget Flange Base Lamps	2 V	780 mcd	Red	634 nm	1.75	T	1.75
Visual Communications Company - VCC MF200C-NWW28H	General Purpose Lighting	Midget Flange	Single	Multiple Midget Flange Base Lamps	28 V	2500 mcd	Cool White		1.75	T	1.75
Visual Communications Company - VCC MF200-NFW24H-R-	General Purpose Lighting	Midget Flange	Single	Multiple Midget Flange Base Lamps	24 VDC	280 mcd	White		1.75	T	1.75
Visual Communications Company - VCC MF200-NKG5H	General Purpose Lighting	Midget Flange	Single	Multiple Midget Flange Base Lamps	5 V	10000 mcd	Green	520 nm	1.75	T	1.75
Visual Communications Company - VCC MF200-NFW15H	General Purpose Lighting	Midget Flange	Single	Multiple Midget Flange Base Lamps	15 V	280 mcd	White		1.75	T	1.75
Visual Communications Company - VCC MF200-NFB28H	General Purpose Lighting	Midget Flange	Single	Multiple Midget Flange Base Lamps	28 V	168 mcd	Blue	465 nm	1.75	T	1.75
Visual Communications Company - VCC MF200-NKG15H	General Purpose Lighting	Midget Flange	Single	Multiple Midget Flange Base Lamps	15 V	10000 mcd	Green	520 nm	1.75	T	1.75
Visual Communications Company - VCC MF200-NWB28H	General Purpose Lighting	Midget Flange	Single	Multiple Midget Flange Base Lamps	28 V	700 mcd	Blue	465 nm	1.75	T	1.75

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

MF200-BR5H | Datasheet
