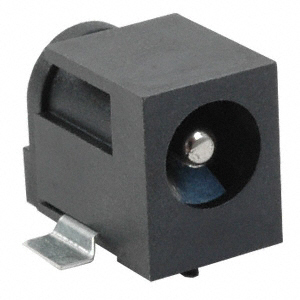

PJ-036BH-SMT-TR

Active

CUI Devices

CONN PWR JACK 2.5X5.5MM SOLDER

Search across all available documentation for this part.

Active

CUI Devices

CONN PWR JACK 2.5X5.5MM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	PJ-036BH-SMT-TR

Actual Diameter [diameter]	2.5 mm, 6.3 mm
Actual Diameter [diameter]	0.098 in, 0.248 in
Body Color	Black
Connector Type	Jack
Contact Material	Copper Alloy, Brass
Contact Material - Plating [custom]	Silver
Current Rating (Amps)	5 A
Gender	Male
Housing Material	Polyamide (PA6T), Nylon 6T
Industry Recognized Mating Diameter [diameter]	5.5 mm, 2.5 mm
Industry Recognized Mating Diameter [diameter]	0.098 ", 0.217 "
Internal Switch(s)	Single Switch, Normally Closed
Material Flammability Rating	UL94 V-0
Mating Length/Depth	0.36 in
Mating Length/Depth	9.15 mm
Mounting Type	Surface Mount, Right Angle
Number of Positions/Contacts	3 Conductors, 2 Conductors
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shielding	Unshielded
Termination	Solder
Voltage - Rated	24 VDC

Part	Voltage - Rated	Mounting Type	Number of Positions/Contacts	Material Flammability Rating	Shielding	Industry Recognized Mating Diameter [diameter]	Industry Recognized Mating Diameter [diameter]	Contact Material - Plating [custom]	Housing Material	Actual Diameter [diameter]	Actual Diameter	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Mating Length/Depth	Mating Length/Depth	Internal Switch(s)	Body Color	Termination	Connector Type	Gender	Contact Material	Actual Diameter [diameter]	Features
CUI Devices PJ-036AH-SMT-TR	24 VDC	Surface Mount Right Angle	2 Conductors 3 Conductors	UL94 V-0	Unshielded	0.083 in 0.217 "	2.1 mm 5.5 mm	Silver	Polyamide (PA6T) Nylon 6T	0.079 in 0.248 in	2 mm 6.3 mm	-25 °C	85 °C	5 A	0.36 in	9.15 mm	Normally Closed Single Switch	Black	Solder	Jack	Male	Brass Copper Alloy
CUI Devices PJ-036BH-SMT-TR	24 VDC	Surface Mount Right Angle	2 Conductors 3 Conductors	UL94 V-0	Unshielded	0.098 " 0.217 "	2.5 mm 5.5 mm	Silver	Polyamide (PA6T) Nylon 6T	0.098 in 0.248 in		-25 °C	85 °C	5 A	0.36 in	9.15 mm	Normally Closed Single Switch	Black	Solder	Jack	Male	Brass Copper Alloy	2.5 mm 6.3 mm
CUI Devices PJ-036CH	24 VDC	Through Hole Right Angle	2 Conductors 3 Conductors	UL94 V-0	Unshielded	0.039 " 0.134 "	1 mm 3.4 mm	Silver		0.039 in 0.15 "	1 mm 3.8 mm	-25 °C	85 °C	3.5 A	0.252 in	6.4 mm	Normally Closed Single Switch	Black	Solder	Jack	Male	Brass Copper Alloy		Board Guide

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Barrel Connector Jack 2.50mm ID (0.098"), 5.50mm OD (0.217") Surface Mount, Right Angle
