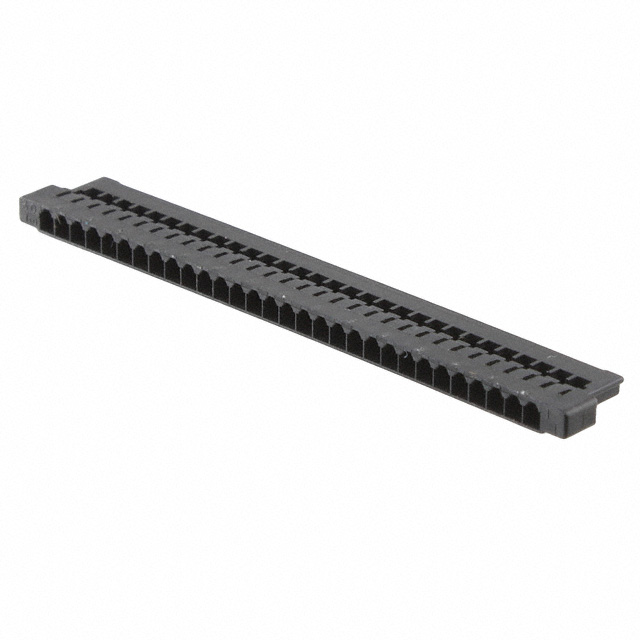

FI-S30S

Active

JAE Electronics

CONN PLUG HSG 30POS 1.25MM

Search across all available documentation for this part.

Active

JAE Electronics

CONN PLUG HSG 30POS 1.25MM

Technical Specifications

Parameters and characteristics for this part

Specification	FI-S30S

Color	Black
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Friction Lock
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	30
Number of Rows	1
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.049 in
Pitch [x]	1.25 mm

Part	Contact Type	Contact Termination	Pitch [x]	Pitch [x]	Insulation Material	Connector Type	Mounting Type	Fastening Type	Note	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Color	Number of Rows
JAE Electronics FI-S30S	Female Socket	Crimp	0.049 in	1.25 mm	Polyamide (PA66) Nylon 6/6 Glass Filled	Plug	Free Hanging (In-Line)	Friction Lock	Contacts Not Included	-40 °C	80 C	30	Black	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

30 Rectangular Connectors - Housings Plug Black 0.049" (1.25mm)
