STV08
ActiveTE Connectivity Raychem Cable Protection
SWITCH SLIDE DIP SPST 0.01A 5V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
STV08
ActiveTE Connectivity Raychem Cable Protection
SWITCH SLIDE DIP SPST 0.01A 5V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | STV08 |
|---|---|
| Actuator Level | Flush, Recessed |
| Actuator Type | Slide (Standard) |
| Body Material | Polyphenylene Sulfide (PPS) |
| Circuit | SPST |
| Contact Finish | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 10 mA |
| Electrical Life | 1000 Cycles |
| Height Above Board [z] | 6.2 mm |
| Height Above Board [z] | 0.244 " |
| Length [x] | 0.926 " |
| Length [x] | 23.52 mm |
| Mechanical Life | 1000 Cycles |
| Mounting Type | Through Hole |
| Number of Positions | 8 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Pitch | Full |
| Pitch [x] | 0.1 in |
| Pitch [x] | 2.54 mm |
| Termination Style | PC Pin |
| Voltage Rating | 5 V |
| Washable | True |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 3.70 | |
| 20 | $ 3.38 | |||
| 40 | $ 3.08 | |||
| 100 | $ 2.84 | |||
Description
General part information
STV Series

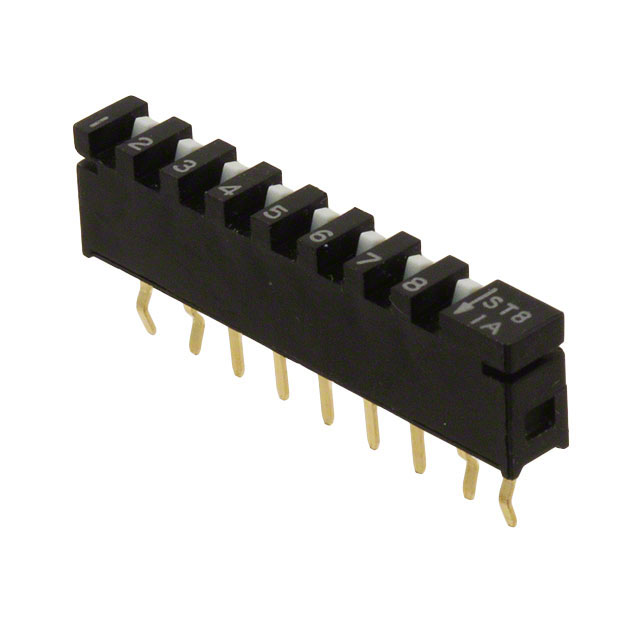

Dip Switch SPST 8 Position Through Hole Slide (Standard) Actuator 10mA 5VDC
