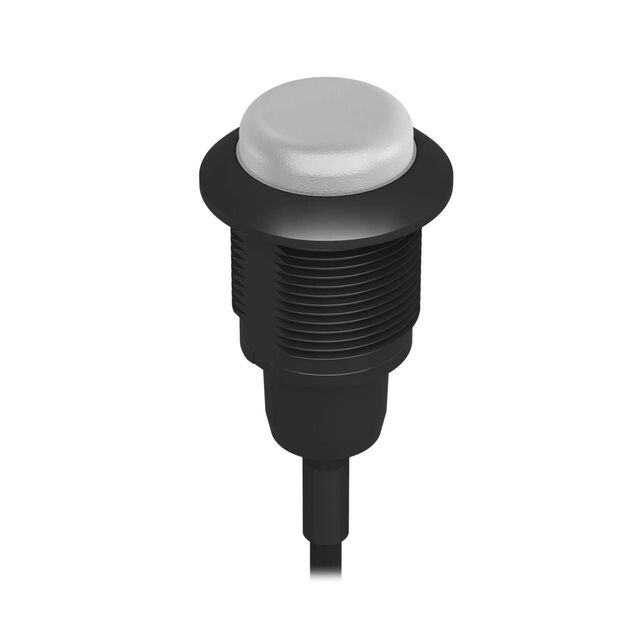

S18LWBOPQP

Active

BANNER ENGINEERING

S18 EZ-LIGHT - 18 MM - IP67; THR

Search across all available documentation for this part.

Active

BANNER ENGINEERING

S18 EZ-LIGHT - 18 MM - IP67; THR

Technical Specifications

Parameters and characteristics for this part

Part	Voltage [Max]	Voltage [Min]	Current	Viewing Angle	Panel Cutout Shape	Ingress Protection	Lens Size [diameter]	Termination Style	Lamp Color	Type	Ratings	Lens Transparency	Millicandela Rating	Panel Cutout Dimensions	Panel Cutout Dimensions
BANNER ENGINEERING S18LWXYPQ	30 V	10 V	25 mA	180 °	Round	IP67 IP69K	16 mm	Quick Connect	White Yellow	LED	DC
BANNER ENGINEERING S18LWBOPQP	30 V	10 V	25 mA	180 °	Round	IP67 IP69K	16 mm	Quick Connect	Blue Orange White	LED	DC
BANNER ENGINEERING S18LWXXPQP	30 V	10 V	25 mA	180 °	Round	IP67 IP69K	16 mm	Quick Connect	White	LED	DC
BANNER ENGINEERING S18LWXXPT	30 V	10 V	25 mA	180 °	Round	IP67 IP69K	16 mm	Screw Terminal	White	LED	DC
BANNER ENGINEERING S18LWXXPQ	30 V	10 V	25 mA		Round	IP67 IP69K NEMA 4X		Quick Connect		LED	DC	Diffused	4 mcd	0.709 in	18 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 59.00
Newark	Each	1	$ 61.00

General part information

LED Panel Indicator Blue, Orange, White 180° 10V ~ 30V 25mA Quick Connect

Technical documentation and resources

No documents available
