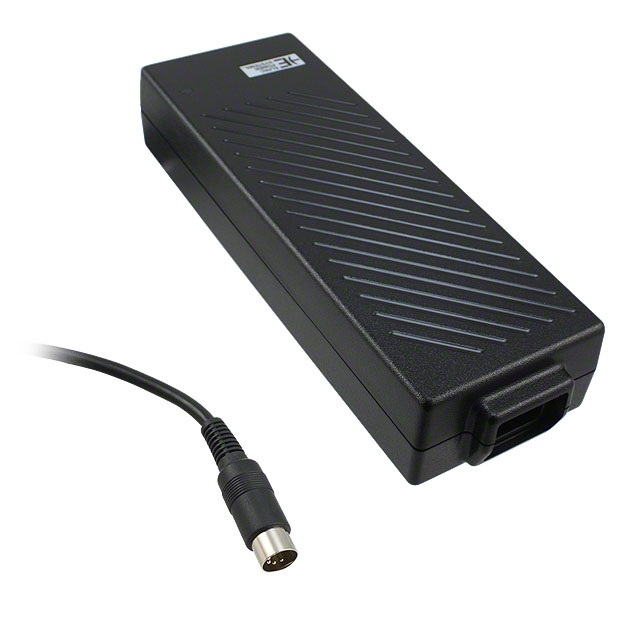

MWA220048A-11A

Active

Inventus Power

AC/DC DESKTOP ADAPTER 48V 221W

Search across all available documentation for this part.

Active

Inventus Power

AC/DC DESKTOP ADAPTER 48V 221W

Technical Specifications

Parameters and characteristics for this part

AC/DC DESKTOP ADAPTER 48V 221W

Part	Approval Agency	No Load Power Consumption	Efficiency	Input Type	Output Connector	Output Connector	Input Connector	Weight	Weight	Voltage - Output	Applications	Cord Length	Cord Length	Operating Temperature [Max]	Operating Temperature [Min]	Form	Current - Output (Max) [Max]	Region Utilized	Power (Watts)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]
Inventus Power MWA220048A-11A	CB, CE, cTUVus	500 mW	Level V	Cord	DIN	5 Pin	IEC 320-C14	952.5 g	2.1 lb	48 V	Medical	1.83 m	72 in	60 °C	0 °C	Desktop (Class I)	4.6 A	International	221 W	8.2 "	73 mm	208 mm	2.9 in	1.6 "	39 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

48V 221 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input

Technical documentation and resources
