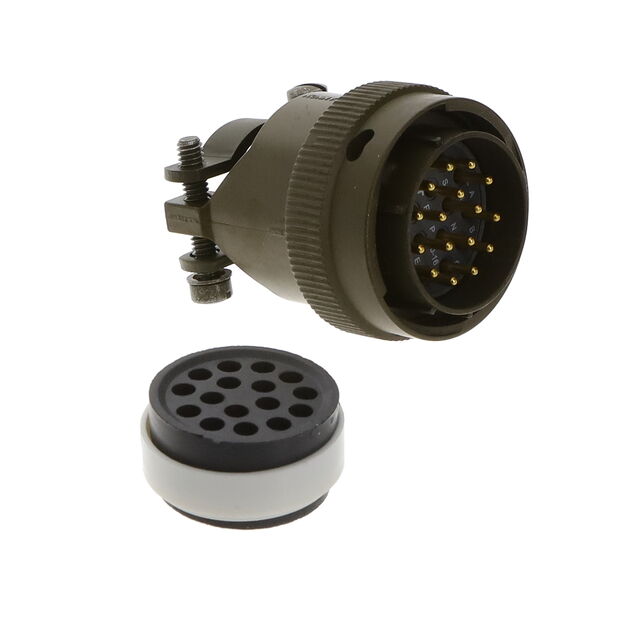

MS3116F20-16P

Active

ITT Cannon, LLC

CIRCULAR CONNECTOR, MIL-DTL-26482 SERIES I, MS3116 SERIES, STRAIGHT PLUG, 16 CONTACTS, SOLDER PIN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

MS3116F20-16P

Active

ITT Cannon, LLC

CIRCULAR CONNECTOR, MIL-DTL-26482 SERIES I, MS3116 SERIES, STRAIGHT PLUG, 16 CONTACTS, SOLDER PIN

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MS3116F20-16P

Color	Olive Drab
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Current Rating (Amps)	13 A
Fastening Type	Bayonet Lock
Features	Strain Relief
Ingress Protection	Environment Resistant
Mounting Type	Free Hanging (In-Line)
Number of Positions	16
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Shell Finish	Olive Drab Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert [Max] [diameter]	20
Shell Size - Insert [Min] [diameter]	16
Voltage Rating	1400 V, 1000 VAC

MS3116F20 Series

Part	Mounting Type	Number of Positions	Fastening Type	Features	Shell Material	Ingress Protection	Voltage Rating	Orientation	Current Rating (Amps)	Connector Type	Primary Material	Color	Shell Finish	Shell Size - Insert [Max] [diameter]	Shell Size - Insert [Min] [diameter]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating
ITT Cannon, LLC MS3116F20-16P	Free Hanging (In-Line)	16	Bayonet Lock	Strain Relief	Aluminum Alloy	Environment Resistant	1000 VAC 1400 V	N	13 A	Male Pins Plug	Metal	Olive Drab	Olive Drab Cadmium	20	16	1.27 µm	50 µin	-55 °C	125 °C	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 83.14
		1	$ 86.14
		10	$ 73.22
		10	$ 62.35
		25	$ 68.64
		25	$ 57.81
		50	$ 65.37
		50	$ 53.76
		100	$ 50.82
		100	$ 62.25

Description

General part information

MS3116F20 Series

The MS3116F20-16P from ITT Cannon is MIL-DTL-26482 series I straight plug with 16 contacts. MIL-DTL-26482 series I connectors are available in various shell styles and shell plating with 48hr, 500hr salt spray exposure. The unmated connectors and protective covers meet 48hrs exposure to MIL-STD-1344 method 1001 per MIL-DTL-26482. It has a well-proven electrical capability and is designed to withstand extreme shock, exposure and vibration.
