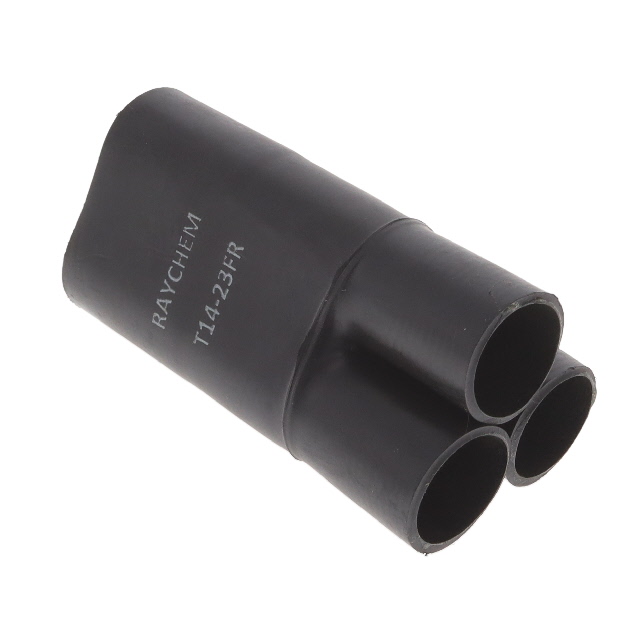

T14-23FR

Active

TE Connectivity Aerospace, Defense and Marine

HEATSHRINK BOOT BREAKOUT 3:1 BLK

Search across all available documentation for this part.

Active

TE Connectivity Aerospace, Defense and Marine

HEATSHRINK BOOT BREAKOUT 3:1 BLK

Technical Specifications

Parameters and characteristics for this part

Specification	T14-23FR

Color	Black
Features	Weather Resistant, Flame Retardant, Adhesive Coating, Abrasion Resistant, Corrosion Resistant
Large Diameter Recovered [diameter]	0.69 in
Large Diameter Recovered [diameter]	17.53 mm
Large Diameter Supplied [diameter]	30 mm
Large Diameter Supplied [diameter]	1.181 in
Large Recovered Length [x]	58.42 mm
Large Recovered Length [x]	2.3 in
Material	Polyolefin (PO), Semi-Rigid
Small Diameter Recovered [diameter]	4.57 mm
Small Diameter Recovered [diameter]	0.18 "
Small Diameter Supplied [diameter]	13 mm
Small Diameter Supplied [diameter]	0.512 in
Small Recovered Length	1 in
Small Recovered Length	25.4 mm
Type	Boot, Transition - Breakout, 3:1

HEATSHRINK BOOT BREAKOUT 3:1 BLK

Part	Type	Color	Large Recovered Length [x]	Large Recovered Length [x]	Large Diameter Recovered [diameter]	Large Diameter Recovered [diameter]	Small Diameter Supplied [diameter]	Small Diameter Supplied [diameter]	Small Diameter Recovered [diameter]	Small Diameter Recovered [diameter]	Small Recovered Length	Small Recovered Length	Large Diameter Supplied [diameter]	Large Diameter Supplied [diameter]	Features	Material
TE Connectivity Aerospace, Defense and Marine T14-23FR	Boot, Transition - Breakout, 3:1	Black	58.42 mm	2.3 in	0.69 in	17.53 mm	13 mm	0.512 in	4.57 mm	0.18 "	1 in	25.4 mm	30 mm	1.181 in	Abrasion Resistant, Adhesive Coating, Corrosion Resistant, Flame Retardant, Weather Resistant	Polyolefin (PO), Semi-Rigid

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Heat Shrink Boot, Transition - Breakout, 3:1 Black
