82C1A-E28-A10L
ActiveBourns Inc.
POT 1K OHM 2W CERMET LINEAR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
82C1A-E28-A10L
ActiveBourns Inc.
POT 1K OHM 2W CERMET LINEAR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 82C1A-E28-A10L |
|---|---|
| Actuator Diameter [diameter] | 0.125 in |
| Actuator Diameter [diameter] | 3.18 mm |
| Actuator Length [z] | 22.23 mm |
| Actuator Length [z] | 0.875 in |
| Actuator Type | Slotted |
| Adjustment Type | User Defined |
| Built in Switch | False |
| Bushing Thread | 1/4-32 |
| Number of Gangs | 1 |
| Number of Turns | 1 |
| Power (Watts) | 2 W |
| Resistance (Ohms) | 1 kOhms |
| Resistive Material | Cermet |
| Rotation | 300 ░ |
| Size - Body [x] | 0.625 in |
| Size - Body [x] | 15.88 mm |
| Size - Body [y] | 15.88 mm |
| Size - Body [y] | 0.625 in |
| Taper | Linear |
| Temperature Coefficient | 150 ppm/°C |
| Termination Style | Solder Hook |
| Tolerance | 10 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 270 | $ 10.87 | |
Description
General part information
82C1A Series

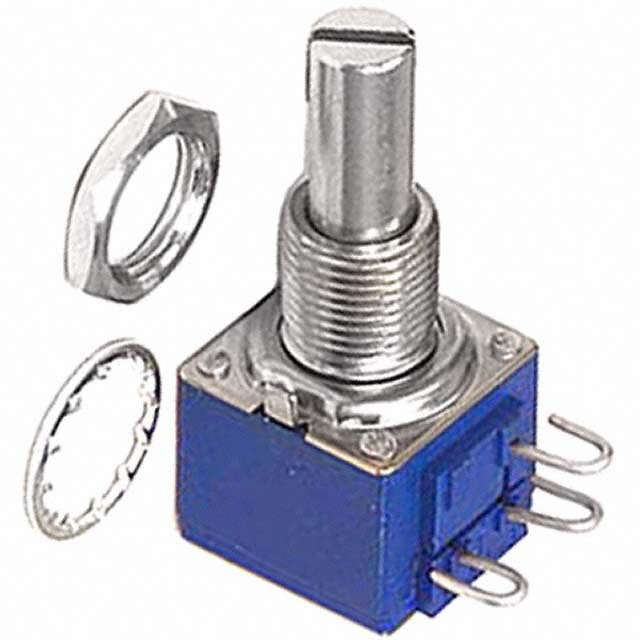

1k Ohm 1 Gang Linear Panel Mount Potentiometer 1.0 Turns Cermet 2W Solder Hook
Documents
Technical documentation and resources
