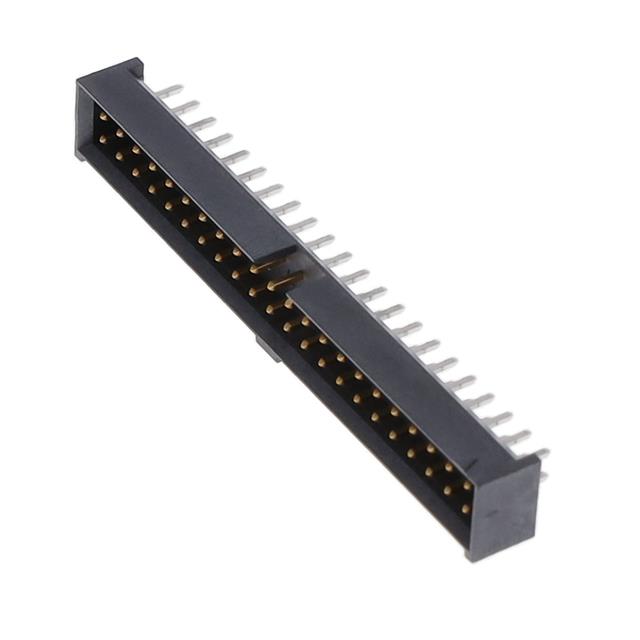

LTMM-122-01-L-D - LTMM-122-01-L-D

LTMM-122-01-L-D

Active
Samtec Inc.

CONN HEADER VERT 44POS 2MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetLTMM Series Other Related Documents 01+2
LTMM-122-01-L-D - LTMM-122-01-L-D

LTMM-122-01-L-D

Active
Samtec Inc.

CONN HEADER VERT 44POS 2MM

Deep-Dive with AI

DocumentsDatasheetLTMM Series Other Related Documents 01+2

Technical Specifications

Parameters and characteristics for this part

SpecificationLTMM-122-01-L-D
Connector TypeHeader
Contact Finish - MatingGold
Contact Finish - PostTin
Contact Finish Thickness - Mating10 çin
Contact Finish Thickness - Mating0.25 çm
Contact Length - Mating0.1 in
Contact Length - Mating2.54 mm
Contact Length - Post0.09 "
Contact Length - Post2.29 mm
Contact MaterialPhosphor Bronze
Contact ShapeSquare
Contact TypeMale Pin
Fastening TypePush-Pull
FeaturesKeying Slot
Insulation ColorBlack
Insulation Height4.83 mm
Insulation Height0.19 in
Insulation MaterialLiquid Crystal Polymer (LCP)
Mounting TypeThrough Hole
Number of Positions44
Number of Positions LoadedAll
Number of Rows2
Operating Temperature [Max]125 °C
Operating Temperature [Min]-55 °C
Pitch - Mating [x]0.079 in
Pitch - Mating [x]2 mm
Row Spacing - Mating0.079 in
Row Spacing - Mating2 mm
ShroudingShrouded - 4 Wall
TerminationSolder

LTMM-122 Series

PartFastening TypeInsulation ColorMounting TypeTerminationOperating Temperature [Min]Operating Temperature [Max]Number of Positions LoadedContact Finish - MatingInsulation MaterialPitch - Mating [x]Pitch - Mating [x]Insulation HeightInsulation HeightContact Finish - PostContact Length - PostContact Length - PostContact Finish Thickness - MatingContact Finish Thickness - MatingNumber of RowsContact Length - MatingContact Length - MatingContact MaterialFeaturesContact ShapeNumber of PositionsContact TypeConnector TypeShroudingRow Spacing - MatingRow Spacing - MatingContact Finish Thickness - PostContact Finish Thickness - PostNumber of Positions Loaded
Samtec Inc.
LTMM-122-01-L-D
Push-Pull
Black
Through Hole
Solder
-55 °C
125 °C
All
Gold
Liquid Crystal Polymer (LCP)
0.079 in
2 mm
4.83 mm
0.19 in
Tin
0.09 "
2.29 mm
10 çin
0.25 çm
2
0.1 in
2.54 mm
Phosphor Bronze
Keying Slot
Square
44
Male Pin
Header
Shrouded - 4 Wall
0.079 in
2 mm
Samtec Inc.
LTMM-122-02-G-D-20
Push-Pull
Black
Through Hole
Solder
-55 °C
125 °C
Gold
Liquid Crystal Polymer (LCP)
0.079 in
2 mm
4.83 mm
0.19 in
Gold
0.117 in
2.97 mm
20 µin
0.51 µm
2
0.12 in
3.05 mm
Phosphor Bronze
Keying Slot
Square
44
Male Pin
Header
Shrouded - 4 Wall
0.079 in
2 mm
3 µin
0.076 µm
43
Samtec Inc.
LTMM-122-01-G-D-SM-LC
Push-Pull
Black
Surface Mount
Solder
-55 °C
125 °C
All
Gold
Liquid Crystal Polymer (LCP)
0.079 in
2 mm
4.83 mm
0.19 in
Gold
20 µin
0.51 µm
2
0.1 in
2.54 mm
Phosphor Bronze
Board Lock
Keying Slot
Square
44
Male Pin
Header
Shrouded - 4 Wall
0.079 in
2 mm
3 µin
0.076 µm
Samtec Inc.
LTMM-122-01-G-D-SM
Push-Pull
Black
Surface Mount
Solder
-55 °C
125 °C
All
Gold
Liquid Crystal Polymer (LCP)
0.079 in
2 mm
4.83 mm
0.19 in
Gold
20 µin
0.51 µm
2
0.1 in
2.54 mm
Phosphor Bronze
Keying Slot
Square
44
Male Pin
Header
Shrouded - 4 Wall
0.079 in
2 mm
3 µin
0.076 µm
Samtec Inc.
LTMM-122-02-G-D-SM-LC-K
Push-Pull
Black
Surface Mount
Solder
-55 °C
125 °C
All
Gold
Liquid Crystal Polymer (LCP)
0.079 in
2 mm
4.83 mm
0.19 in
Gold
20 µin
0.51 µm
2
0.12 in
3.05 mm
Phosphor Bronze
Board Lock
Keying Slot
Pick and Place
Square
44
Male Pin
Header
Shrouded - 4 Wall
0.079 in
2 mm
3 µin
0.076 µm
Samtec Inc.
LTMM-122-02-G-D-SM-LC
Push-Pull
Black
Surface Mount
Solder
-55 °C
125 °C
All
Gold
Liquid Crystal Polymer (LCP)
0.079 in
2 mm
4.83 mm
0.19 in
Gold
20 µin
0.51 µm
2
0.12 in
3.05 mm
Phosphor Bronze
Board Lock
Keying Slot
Square
44
Male Pin
Header
Shrouded - 4 Wall
0.079 in
2 mm
3 µin
0.076 µm
Samtec Inc.
LTMM-122-01-S-D-RA
Push-Pull
Black
Through Hole
Right Angle
Solder
-55 °C
105 ░C
All
Gold
Liquid Crystal Polymer (LCP)
0.079 in
2 mm
6.03 mm
0.237 in
Tin
0.09 "
2.29 mm
30 Áin
0.76 Ám
2
0.1 in
2.54 mm
Phosphor Bronze
Keying Slot
Square
44
Male Pin
Header
Shrouded - 4 Wall
0.079 in
2 mm
Samtec Inc.
LTMM-122-01-T-D
Push-Pull
Black
Through Hole
Solder
-55 °C
105 ░C
All
Liquid Crystal Polymer (LCP)
0.079 in
2 mm
4.83 mm
0.19 in
Tin
0.09 "
2.29 mm
2
0.1 in
2.54 mm
Phosphor Bronze
Keying Slot
Square
44
Male Pin
Header
Shrouded - 4 Wall
0.079 in
2 mm
Samtec Inc.
LTMM-122-02-F-D-SM-LC-K-TR
Push-Pull
Black
Surface Mount
Solder
-55 °C
105 ░C
All
Gold
Liquid Crystal Polymer (LCP)
0.079 in
2 mm
4.83 mm
0.19 in
Tin
3 µin
0.076 µm
2
0.12 in
3.05 mm
Phosphor Bronze
Board Lock
Keying Slot
Pick and Place
Square
44
Male Pin
Header
Shrouded - 4 Wall
0.079 in
2 mm
Samtec Inc.
LTMM-122-02-T-D-02
Push-Pull
Black
Through Hole
Solder
-55 °C
105 ░C
Liquid Crystal Polymer (LCP)
0.079 in
2 mm
4.83 mm
0.19 in
Tin
0.117 in
2.97 mm
2
0.12 in
3.05 mm
Phosphor Bronze
Keying Slot
Square
44
Male Pin
Header
Shrouded - 4 Wall
0.079 in
2 mm
43

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTube 1$ 7.37
10$ 6.81
25$ 6.44
50$ 6.20
100$ 4.78
500$ 4.49

Description

General part information

LTMM-122 Series

Connector Header Through Hole 44 position 0.079" (2.00mm)
