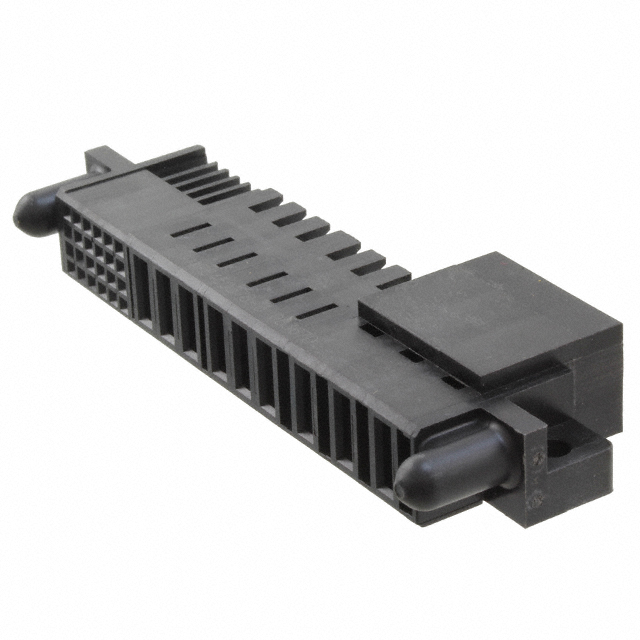

Specification	6450378-3

Connector Style	Multi-Beam
Connector Type	Receptacle, Blade Sockets, Female Sockets
Features	Guide Pin
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	33
Number of Positions Loaded	All
Number of Rows	4
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-20 °C
Pitch	0.1 in
Power Contacts (Typical)	9
Signal Contacts (Typical)	24
Termination	Solder

6450378 Series

Part	Operating Temperature (Min)	Operating Temperature (Max)	Material Flammability Rating	Pitch	Number of Positions Loaded	Power Contacts (Typical)	Signal Contacts (Typical)	Termination	Connector Type	Connector Style	Color	Number of Positions	Mounting Type	Features	Number of Rows
TE Connectivity AMP Connectors 6450378-1	-20 °C	105 °C	UL94 V-0	0.1 in	All	7	24	Solder	Blade Sockets Female Sockets Receptacle	Multi-Beam	Black	31	Right Angle Through Hole	Guide Pin	4
TE Connectivity AMP Connectors 6450378-3	-20 °C	105 °C	UL94 V-0	0.1 in	All	9	24	Solder	Blade Sockets Female Sockets Receptacle	Multi-Beam		33	Right Angle Through Hole	Guide Pin	4
