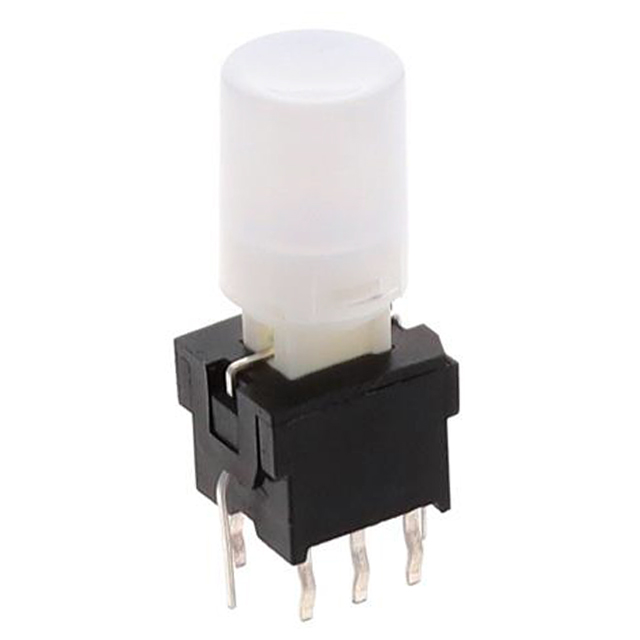

Specification	LP4EE1PBCTW

Actuator Type	Button, Round
Circuit	DPDT
Color	White
Color - Actuator/Cap	Clear
Current Rating	100 mA
Illumination Type	LED
Illumination Voltage (Nominal)	3.2 VDC
Mechanical Life (Cycles)	50000 Cycles
Mounting Type	Through Hole
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-20 °C
Switch Function	On-On
Termination Style	PC Pin
Type	Standard, Illuminated
Voltage Rating - DC	30 V

lp4 Series

Part	Mechanical Life (Cycles)	Actuator Type	Actuator Marking	Voltage Rating - DC	Termination Style	Current Rating	Color	Illumination Type	Illumination Voltage (Nominal)	Type	Mounting Type	Switch Function	Operating Temperature (Max)	Operating Temperature (Min)	Circuit	Color - Actuator/Cap
E-Switch LP4OA1RBATR	50000 Cycles	Button Square	No Marking	30 V	PC Pin	100 mA	Red	LED	2.2 VDC	Illuminated Standard	Right Angle Through Hole	On-Mom	70 °C	-20 °C	DPDT	Clear
E-Switch LP4OA1PBBTY	50000 Cycles	Button Round	No Marking	30 V	PC Pin	100 mA	Yellow	LED	2.2 VDC	Illuminated Standard	Through Hole	On-Mom	70 °C	-20 °C	DPDT	Clear
E-Switch LP4OA1PBABN	50000 Cycles	Button Square	No Marking	30 V	PC Pin	100 mA				Standard	Through Hole	On-Mom	70 °C	-20 °C	DPDT	Blue
E-Switch LP4OA1PBBTR	50000 Cycles	Button Round	No Marking	30 V	PC Pin	100 mA	Red	LED	2.2 VDC	Illuminated Standard	Through Hole	On-Mom	70 °C	-20 °C	DPDT	Clear
E-Switch LP4OA1PBBTW	50000 Cycles	Button Round	No Marking	30 V	PC Pin	100 mA	White	LED	3.7 VDC	Illuminated Standard	Through Hole	On-Mom	70 °C	-20 °C	DPDT	Clear
E-Switch LP4OA1RBATB	50000 Cycles	Button Square	No Marking	30 V	PC Pin	100 mA	Blue	LED	3.5 VDC	Illuminated Standard	Right Angle Through Hole	On-Mom	70 °C	-20 °C	DPDT	Clear
E-Switch LP4OA1PBBTG	50000 Cycles	Button Round	No Marking	30 V	PC Pin	100 mA	Green	LED	2.3 VDC	Illuminated Standard	Through Hole	On-Mom	70 °C	-20 °C	DPDT	Clear
E-Switch LP4OA1PBCTG	50000 Cycles	Button Round	No Marking	30 V	PC Pin	100 mA	Green	LED	2.3 VDC	Illuminated Standard	Through Hole	On-Mom	70 °C	-20 °C	DPDT	Clear
E-Switch LP4OA1PBBTB	50000 Cycles	Button Round	No Marking	30 V	PC Pin	100 mA	Blue	LED	3.5 VDC	Illuminated Standard	Through Hole	On-Mom	70 °C	-20 °C	DPDT	Clear
E-Switch LP4OA1RBATW	50000 Cycles	Button Square	No Marking	30 V	PC Pin	100 mA	White	LED	3.7 VDC	Illuminated Standard	Right Angle Through Hole	On-Mom	70 °C	-20 °C	DPDT	Clear
