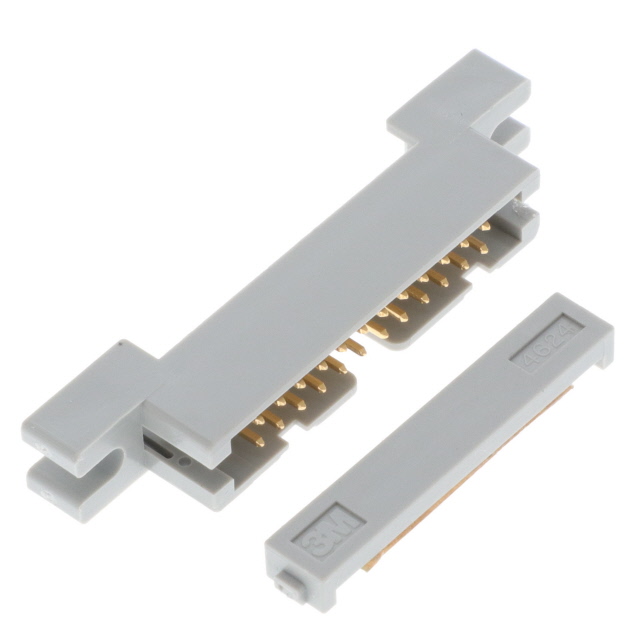

4624-6000

Active

3M (TC)

IDC CONNECTOR, IDC PLUG, MALE, 2.54 MM, 2 ROW, 24 CONTACTS, CABLE MOUNT

Search across all available documentation for this part.

Active

3M (TC)

IDC CONNECTOR, IDC PLUG, MALE, 2.54 MM, 2 ROW, 24 CONTACTS, CABLE MOUNT

Technical Specifications

Parameters and characteristics for this part

Part	Wire Gauge [Min]	Wire Gauge [Max]	Wire Gauge	Contact Finish	Mounting Type	Color	Number of Rows	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Row Spacing [x]	Row Spacing	Fastening Type	Pitch [x]	Pitch [x]	Wire Type	Features	Cable Termination	Contact Type	Connector Type
3M (TC) 4624-7201	26 AWG	28 AWG	Solid Stranded	Gold	Free Hanging (In-Line)	Gray	2	24	0.76 Ám	30 Áin	0.1 in	2.54 mm	Latch Lock/Eject Hooks Short	2.54 mm	0.1 in	Discrete or Ribbon Cable	Closed End	IDC	Male Pin	Plug
3M (TC) 4624-6300	26 AWG	28 AWG	Solid Stranded	Gold	Free Hanging (In-Line)	Gray	2	24	0.76 Ám	30 Áin	0.1 in	2.54 mm	Latch Lock/Eject Hooks Long	2.54 mm	0.1 in	Discrete or Ribbon Cable	Feed Through	IDC	Male Pin	Plug
3M (TC) 4624-7005	26 AWG	28 AWG	Solid Stranded	Gold	Free Hanging (In-Line)	Gray	2	24	0.76 Ám	30 Áin	0.1 in	2.54 mm		2.54 mm	0.1 in	Discrete or Ribbon Cable	Closed End	IDC	Male Pin	Plug
3M (TC) 4624-6000	26 AWG	28 AWG	Solid Stranded	Gold	Free Hanging (In-Line)	Gray	2	24	0.76 Ám	30 Áin	0.1 in	2.54 mm		2.54 mm	0.1 in	Discrete or Ribbon Cable	Feed Through	IDC	Male Pin	Plug
3M (TC) 4624-6205	26 AWG	28 AWG	Solid Stranded	Gold	Free Hanging (In-Line)	Gray	2	24	0.76 Ám	30 Áin	0.1 in	2.54 mm	Latch Lock/Eject Hooks Short	2.54 mm	0.1 in	Discrete or Ribbon Cable	Feed Through	IDC	Male Pin	Plug

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

24 Position Rectangular Plug Connector IDC Gold 26-28 AWG, Stranded or Solid
