84BB1-004
ActiveGrayhill Inc.

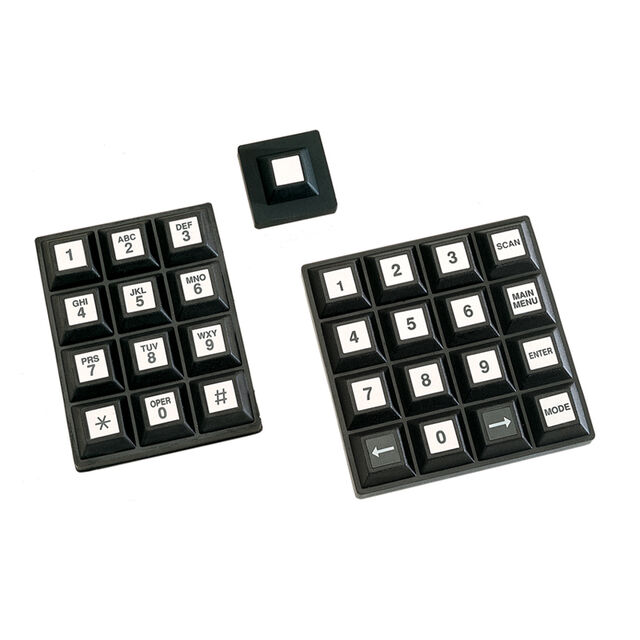

PAD SWITCH,SPST,NUMBER OF POSITIONS:16,PC TAIL TERMINAL
Deep-Dive with AI
Search across all available documentation for this part.
84BB1-004
ActiveGrayhill Inc.
PAD SWITCH,SPST,NUMBER OF POSITIONS:16,PC TAIL TERMINAL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 84BB1-004 | 84BB1 Series |
|---|---|---|
| Contact Rating @ Voltage | 24 VDC, 0.01 A | 0.01 - 24 VDC |
| Illumination | Non-Illuminated | Non-Illuminated |
| Key Type | Transparent Key Cap | Transparent Key Cap |
| Legend | Customizable (Sold Separate) | Customizable (Sold Separate) |
| Legend Color | White | White |
| Legend Type | Interchangeable | Interchangeable |
| Matrix (Columns x Rows) [custom] | 4 | 4 |
| Matrix (Columns x Rows) [custom] | 4 | 4 |
| Mounting Type | Panel Mount, Front | Panel Mount, Front |
| Number of Keys | 16 | 16 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Operational Life | 3000000 Cycles | 3000000 Cycles |
| Output Type | Common Bus | Common Bus |
| Switch Type | Snap Dome | Snap Dome |
| Termination Style | Pin Header | Pin Header |
84BB1 Series
SWITCH KEYPAD 16KEY 0.01A 24V
| Part | Illumination | Legend | Switch Type | Matrix (Columns x Rows) [custom] | Matrix (Columns x Rows) [custom] | Key Type | Legend Type | Contact Rating @ Voltage | Number of Keys | Output Type | Legend Color | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Operational Life |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Grayhill Inc. 84BB1-001 | Non-Illuminated | Customizable (Sold Separate) | Snap Dome | 4 | 4 | Transparent Key Cap | Interchangeable | 0.01 A, 24 VDC | 16 | Common Bus | White | Pin Header | 85 °C | -40 °C | Panel Mount, Front | 3000000 Cycles |
Grayhill Inc. 84BB1-004 | Non-Illuminated | Customizable (Sold Separate) | Snap Dome | 4 | 4 | Transparent Key Cap | Interchangeable | 0.01 A, 24 VDC | 16 | Common Bus | White | Pin Header | 85 °C | -40 °C | Panel Mount, Front | 3000000 Cycles |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
84BB1 Series
Keypad Switch 16 Transparent Key Cap Keys Snap Dome Contacts Common Bus Output Non-Illuminated 0.01A @ 24VDC
Documents
Technical documentation and resources
No documents available
