HS2L3F20C

Active

Switchcraft Inc.

CONN RCPT FMALE 3POS GOLD CRIMP

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN RCPT FMALE 3POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	HS2L3F20C

Applications	Audio, Testing Equipment & Measurement, Agriculture, Medical, General
Cable Opening [Max] [diameter]	5.49 mm
Cable Opening [Max] [diameter]	0.216 in
Cable Opening [Min] [diameter]	4.57 mm
Cable Opening [Min] [diameter]	0.18 in
Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Fastening Type	Push-Pull
Ingress Protection	IP68, IP66, IP67
Insert Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 HF-1
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	135 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Electroless Nickel
Shell Material	Copper Alloy
Shielding	Shielded
Termination	Crimp, Solder Cup
Voltage Rating	125 VAC

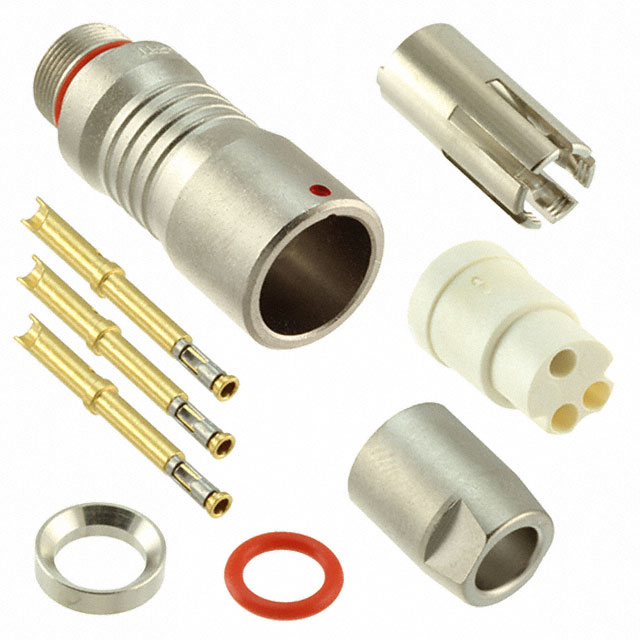

CONN RCPT FMALE 3POS GOLD CRIMP

Part	Fastening Type	Material Flammability Rating	Connector Type	Shell Material	Shielding	Ingress Protection	Shell Finish	Voltage Rating	Applications	Primary Material	Contact Material	Color	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Mounting Type	Insert Material	Contact Finish - Mating	Orientation	Termination	Operating Temperature [Max]	Operating Temperature [Min]
Switchcraft Inc. HS2L3F20C	Push-Pull	UL94 HF-1	Receptacle, Female Sockets	Copper Alloy	Shielded	IP66, IP67, IP68	Electroless Nickel	125 VAC	Agriculture, Audio, General, Medical, Testing Equipment & Measurement	Metal	Copper Alloy	Silver	5.49 mm	4.57 mm	0.18 in	0.216 in	Free Hanging (In-Line)	Liquid Crystal Polymer (LCP)	Gold	Keyed	Crimp, Solder Cup	135 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Circular Connector Receptacle, Female Sockets Crimp or Solder Cup
