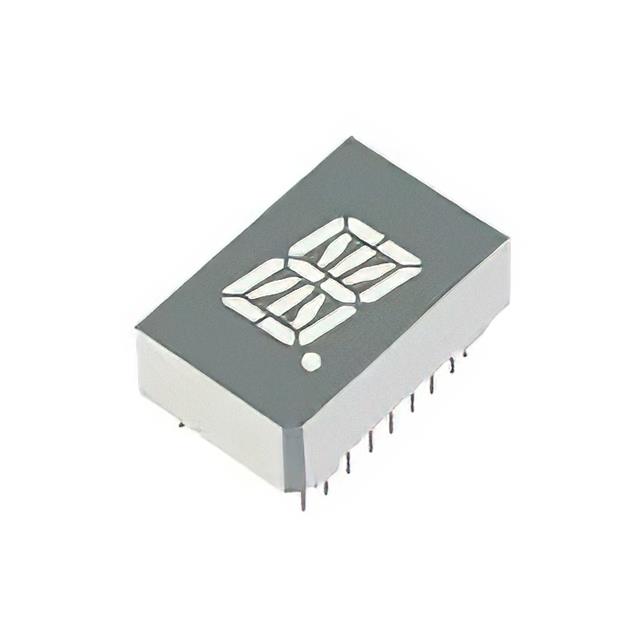

16 SEG ALPHANUMERIC LED DISPLAY, HYPER RED, 12.7MM, ROHS COMPLIANT PACKAGE-18

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PSA05-11SURKWA

Active

Kingbright

16 SEG ALPHANUMERIC LED DISPLAY, HYPER RED, 12.7MM, ROHS COMPLIANT PACKAGE-18

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PSA05-11SURKWA

Color	Red
Common Pin	Common Anode
Current - Test	10 mA
Digit/Alpha Size	12.7 mm
Digit/Alpha Size	0.5 in
Display Type	16-Segment, Alphanumeric
Millicandela Rating	110 mcd
Number of Characters [custom]	1
Package / Case	18-DIP
Package / Case [custom]	12.7 mm
Power Dissipation (Max) [Max]	75 mw
Size / Dimension [x]	0.63 "
Size / Dimension [x]	16 mm
Size / Dimension [y]	9.5 mm
Size / Dimension [y]	0.374 in
Size / Dimension [z]	0.984 in
Size / Dimension [z]	25 mm
Voltage - Forward (Vf) (Typ)	1.85 V
Wavelength - Peak	645 nm

PSA05 Series

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Power Dissipation (Max) [Max]	Package / Case	Package / Case [custom]	Wavelength - Peak	Common Pin	Number of Characters [custom]	Voltage - Forward (Vf) (Typ)	Current - Test	Digit/Alpha Size	Digit/Alpha Size	Display Type	Color	Millicandela Rating
Kingbright PSA05-11EWA	9.5 mm	0.63 "	0.984 in	25 mm	16 mm	0.374 in	75 mw	18-DIP	12.7 mm	627 nm	Common Anode	1	2 V	20 mA	12.7 mm	0.5 in	16-Segment Alphanumeric	Red
Kingbright PSA05-11GWA	9.5 mm	0.63 "	0.984 in	25 mm	16 mm	0.374 in	62.5 mW	18-DIP	12.7 mm	565 nm	Common Anode	1	2.2 V	20 mA	12.7 mm	0.5 in	16-Segment Alphanumeric	Green	10 mcd
Kingbright PSA05-12GWA	9.5 mm	0.63 "	0.984 in	25 mm	16 mm	0.374 in	62.5 mW	18-DIP	12.7 mm	565 nm	Common Anode	1	2.2 V	20 mA	12.7 mm	0.5 in	16-Segment Alphanumeric	Green	10 mcd
Kingbright PSA05-11SRWA	9.5 mm	0.63 "	0.984 in	25 mm	16 mm	0.374 in	75 mw	18-DIP	12.7 mm	660 nm	Common Anode	1	1.85 V	20 mA	12.7 mm	0.5 in	16-Segment Alphanumeric	Red	37 mcd
Kingbright PSA05-11SURKWA	9.5 mm	0.63 "	0.984 in	25 mm	16 mm	0.374 in	75 mw	18-DIP	12.7 mm	645 nm	Common Anode	1	1.85 V	10 mA	12.7 mm	0.5 in	16-Segment Alphanumeric	Red	110 mcd
Kingbright PSA05-12SRWA	9.5 mm	0.63 "	0.984 in	25 mm	16 mm	0.374 in	75 mw	18-DIP	12.7 mm	660 nm	Common Anode	1	1.85 V	20 mA	12.7 mm	0.5 in	16-Segment Alphanumeric	Red	37 mcd

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.33
		20	$ 3.77
		100	$ 3.09
		500	$ 2.60
		1000	$ 2.39
		2000	$ 2.29

Description

General part information

PSA05 Series

Display Modules - LED Character and Numeric Red 16-Segment, Alphanumeric 1 Character Common Anode 1.85V 10mA 0.984" H x 0.630" W x 0.374" D (25.00mm x 16.00mm x 9.50mm) 18-DIP (0.500", 12.70mm)
