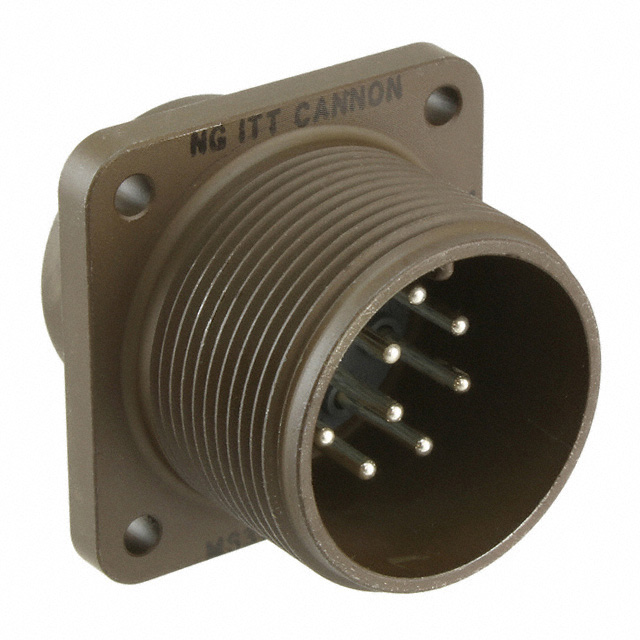

MS3102E18-1P
ActiveITT Cannon, LLC
CONN RCPT MALE 10P SOLDER CUP
Deep-Dive with AI
Search across all available documentation for this part.
MS3102E18-1P
ActiveITT Cannon, LLC
CONN RCPT MALE 10P SOLDER CUP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MS3102E18-1P |
|---|---|
| Color | Olive Drab |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Silver |
| Current Rating (Amps) | 22 A |
| Grade | Military |
| Ingress Protection | Environment Resistant |
| Mounting Feature | Flange |
| Number of Positions | 10 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | N |
| Primary Material | Metal |
| Qualification | MIL-DTL-5015 |
| Shell Finish | Olive Drab Cadmium |
| Shell Material | Aluminum Alloy |
| Shell Size - Insert [Max] | 1 |
| Shell Size - Insert [Min] | 18 |
| Voltage Rating | 250 VDC, 200 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 14.07 | |
| 1 | $ 34.85 | |||
| 10 | $ 12.47 | |||
| 10 | $ 30.52 | |||
| 25 | $ 29.20 | |||
| 25 | $ 11.99 | |||
| 50 | $ 28.25 | |||
| 50 | $ 11.51 | |||
| 100 | $ 27.31 | |||
| 100 | $ 10.87 | |||
| 250 | $ 9.91 | |||
| 250 | $ 25.81 | |||
| 500 | $ 9.27 | |||
| 1000 | $ 8.50 | |||
Description
General part information
MS3102E18 Series
10 Position Circular Connector Receptacle, Male Pins Solder Cup
Documents
Technical documentation and resources
No documents available
