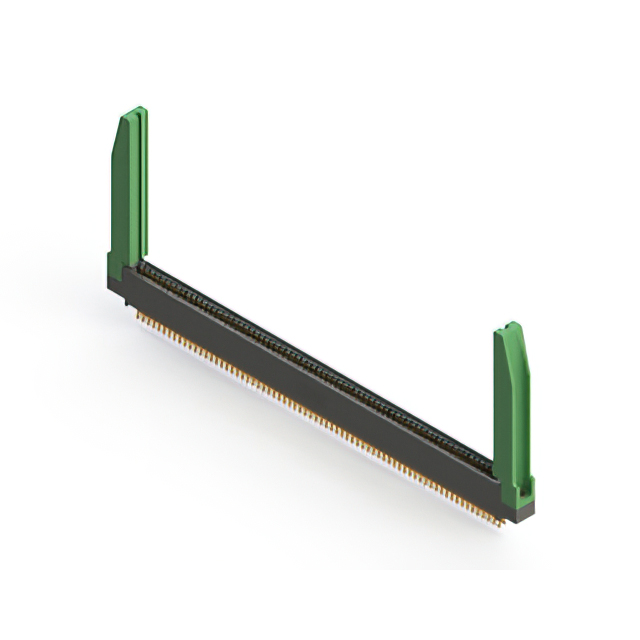

395-140-555-578
ActiveEDAC Inc.
.100" (2.54MM) PITCH CARD EDGE CONNECTOR ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
395-140-555-578
ActiveEDAC Inc.
.100" (2.54MM) PITCH CARD EDGE CONNECTOR ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 395-140-555-578 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Mount Opening, 4-40, Threaded Insert |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Board Edge, Straddle Mount |
| Number of Positions | 140 |
| Number of Positions/Bay/Row [custom] | 70 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder Eyelet(s) |
| Termination Rows | 2 |
395-140 Series
...
| Part | Number of Positions/Bay/Row [custom] | Contact Type | Termination Rows | Operating Temperature [Min] | Operating Temperature [Max] | Read Out | Card Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Material | Contact Finish | Pitch [x] | Pitch [x] | Gender | Mounting Type | Termination | Flange Feature | Number of Positions | Color | Contact Finish Thickness | Contact Finish Thickness | Number of Rows | Material - Insulation | Flange Feature [diameter] | Flange Feature [diameter] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 70 | Cantilever | 2 | -40 °C | 105 ░C | Dual | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Gold | 2.54 mm | 0.1 in | Female | Through Hole | Solder | M3 Threaded Insert Top Mount Opening | 140 | Black | 10 Áin | 0.25 Ám | 2 | Polyester Thermoplastic | |||
EDAC Inc. | 70 | Cantilever | 2 | -40 °C | 105 ░C | Dual | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Gold | 2.54 mm | 0.1 in | Female | Through Hole | Wire Wrap | Flush Mount Top Opening Unthreaded | 140 | Black | 10 Áin | 0.25 Ám | 2 | Polyester Thermoplastic | 3.96 mm | 0.156 in | |
EDAC Inc. | 70 | Cantilever | 2 | -40 °C | 105 ░C | Dual | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Gold | 2.54 mm | 0.1 in | Female | Board Edge Straddle Mount | Solder Eyelet(s) | 4-40 Threaded Insert Top Mount Opening | 140 | Black | 10 Áin | 0.25 Ám | 2 | Polyester Thermoplastic | |||
EDAC Inc. | 70 | Cantilever | 2 | -40 °C | 105 ░C | Dual | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Gold | 2.54 mm | 0.1 in | Female | Through Hole | Solder | Top Mount Opening Unthreaded | 140 | Black | 10 Áin | 0.25 Ám | 2 | Polyester Thermoplastic | 3.96 mm | 0.156 in | |
EDAC Inc. | 70 | Cantilever | 2 | -40 °C | 105 ░C | Dual | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Gold | 2.54 mm | 0.1 in | Female | Through Hole | Wire Wrap | 140 | Black | 10 Áin | 0.25 Ám | 2 | Polyester Thermoplastic | ||||
EDAC Inc. | 70 | Cantilever | 2 | -40 °C | 105 ░C | Dual | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Gold | 2.54 mm | 0.1 in | Female | Through Hole | Solder | 140 | Black | 10 Áin | 0.25 Ám | 2 | Polyester Thermoplastic | ||||
EDAC Inc. | 70 | Cantilever | 2 | -40 °C | 105 ░C | Dual | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Gold | 2.54 mm | 0.1 in | Female | Through Hole Right Angle | Solder | 4-40 Flush Mount Threaded Insert Top Opening | 140 | Black | 10 Áin | 0.25 Ám | 2 | Polyester Thermoplastic | Card Guides | ||
EDAC Inc. | 70 | Cantilever | 2 | -40 °C | 105 ░C | Dual | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Gold | 2.54 mm | 0.1 in | Female | Board Edge Straddle Mount | Solder Eyelet(s) | Floating Bobbin Top Mount Opening | 140 | Black | 10 Áin | 0.25 Ám | 2 | Polyester Thermoplastic | 2.95 mm | 0.116 in | Card Extender |
EDAC Inc. | 70 | Cantilever | 2 | -40 °C | 105 ░C | Dual | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Gold | 2.54 mm | 0.1 in | Female | Through Hole | Solder | Flush Mount M3 Threaded Insert Top Opening | 140 | Black | 10 Áin | 0.25 Ám | 2 | Polyester Thermoplastic | |||
EDAC Inc. | 70 | Cantilever | 2 | -40 °C | 105 ░C | Dual | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Gold | 2.54 mm | 0.1 in | Female | Board Edge Straddle Mount | Solder Eyelet(s) | Top Mount Opening Unthreaded | 140 | Black | 10 Áin | 0.25 Ám | 2 | Polyester Thermoplastic | 3.96 mm | 0.156 in | Card Extender |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
395-140 Series
140 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
