N-4B
ActiveEssentra Access Solutions

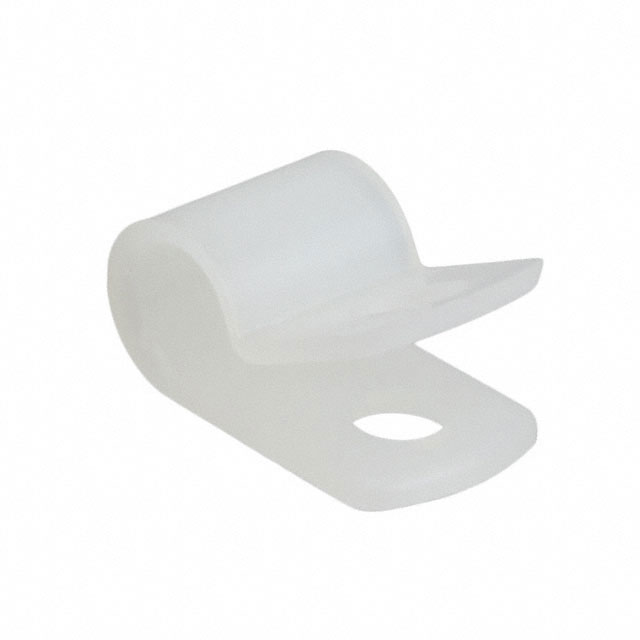

CBL CLAMP P-TYPE NAT FASTENER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | N-4B |
|---|---|
| Bundle Center to Mounting Center [x] | 10.72 mm |
| Bundle Center to Mounting Center [x] | 0.422 in |
| Color | Natural |
| Material | Polyamide (PA66), Nylon 6/6 |
| Material Flammability Rating | UL94 V-2 |
| Material Thickness | 0.063 in |
| Material Thickness | 1.6 mm |
| Mounting Type | Fastener |
| Opening Size | 6.35 mm |
| Opening Size [diameter] | 0.25 in |
| Panel Hole Size | 5.18 mm |
| Panel Hole Size [diameter] | 0.204 in |
| Screw Size | M5 |
| Screw Size | #10 |
| Type | Clamp, P-Type |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.20 | |
| 10 | $ 0.17 | |||
| 25 | $ 0.15 | |||
| 50 | $ 0.14 | |||
| 100 | $ 0.13 | |||
| 250 | $ 0.12 | |||
| 500 | $ 0.11 | |||
| 1000 | $ 0.09 | |||
| 3000 | $ 0.08 | |||
Description
General part information
N-4 Series
Cable Clamp, P-Type Natural Fastener 0.250" (6.35mm)
