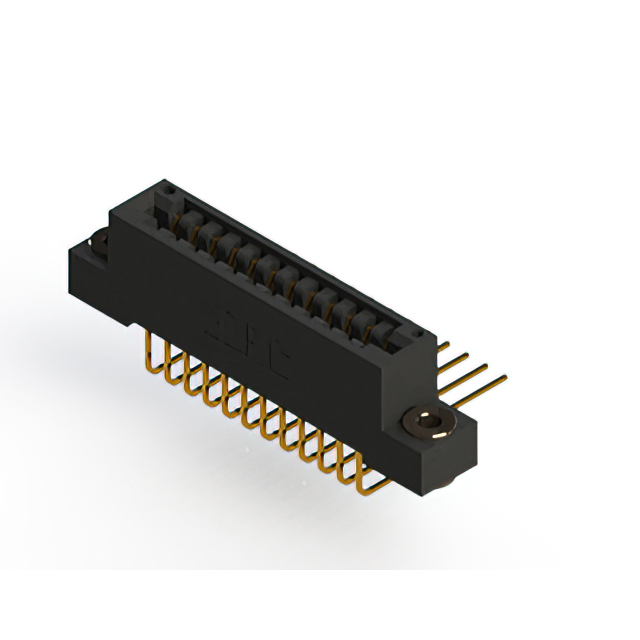

396-024-558-203
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 24POS 0.125
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
396-024-558-203
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 24POS 0.125
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 396-024-558-203 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Floating Bobbin, Flush Mount |
| Flange Feature [diameter] | 0.116 in |
| Flange Feature [diameter] | 2.95 mm |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 24 |
| Number of Positions/Bay/Row [custom] | 12 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.125 in |
| Pitch [x] | 3.18 mm |
| Read Out | Dual |
| Termination | Wire Wrap, Solder |
| Termination Rows | 2 |
396-024 Series
...
| Part | Number of Rows | Flange Feature | Mounting Type | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Termination Rows | Color | Pitch [x] | Pitch [x] | Number of Positions/Bay/Row [custom] | Termination | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Finish | Card Type | Material - Insulation | Contact Type | Gender | Contact Finish Thickness | Contact Finish Thickness | Read Out | Number of Positions | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Flange Feature | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 2 | 4-40 Threaded Insert Top Mount Opening | Board Edge Straddle Mount | Copper Alloy | -40 °C | 105 ░C | 2 | Black | 0.125 in | 3.18 mm | 12 | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Non Specified - Dual Edge | Polyester Thermoplastic | Cantilever | Female | 10 Áin | 0.25 Ám | Dual | 24 | |||||
EDAC Inc. | 2 | 4-40 Flush Mount Threaded Insert Top Opening | Board Edge Straddle Mount | Copper Alloy | -40 °C | 105 ░C | 2 | Black | 0.125 in | 3.18 mm | 12 | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Non Specified - Dual Edge | Polyester Thermoplastic | Cantilever | Female | 10 Áin | 0.25 Ám | Dual | 24 | |||||
EDAC Inc. | 2 | Floating Bobbin Flush Mount | Through Hole Right Angle | Copper Alloy | -40 °C | 105 ░C | 2 | Black | 0.125 in | 3.18 mm | 12 | Solder Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Non Specified - Dual Edge | Polyester Thermoplastic | Cantilever | Female | 10 Áin | 0.25 Ám | Dual | 24 | 0.116 in | 2.95 mm | |||
EDAC Inc. | 1 | M3 Threaded Insert Top Mount Opening | Through Hole | Copper Alloy | -40 °C | 105 ░C | 1 | Black | 0.125 in | 3.18 mm | 24 | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Non Specified - Single Edge | Polyester Thermoplastic | Cantilever | Female | 10 Áin | 0.25 Ám | Single | 24 | |||||
EDAC Inc. | 1 | M3 Threaded Insert Top Mount Opening | Through Hole | Copper Alloy | -40 °C | 105 ░C | 1 | Black | 0.125 in | 3.18 mm | 24 | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Non Specified - Single Edge | Polyester Thermoplastic | Cantilever | Female | 10 Áin | 0.25 Ám | Single | 24 | |||||
EDAC Inc. | 1 | M3 Threaded Insert Top Mount Opening | Through Hole Right Angle | Copper Alloy | -40 °C | 105 ░C | 1 | Black | 0.125 in | 3.18 mm | 24 | Solder Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Non Specified - Single Edge | Polyester Thermoplastic | Cantilever | Female | 10 Áin | 0.25 Ám | Single | 24 | |||||
EDAC Inc. | 1 | Flush Mount Side Opening Unthreaded | Through Hole Right Angle | Copper Alloy | -40 °C | 105 ░C | 1 | Black | 0.125 in | 3.18 mm | 24 | Solder Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Non Specified - Single Edge | Polyester Thermoplastic | Cantilever | Female | 10 Áin | 0.25 Ám | Single | 24 | 0.128 " | 3.25 mm | |||
EDAC Inc. | 2 | Through Hole | Copper Alloy | -40 °C | 105 ░C | 2 | Black | 0.125 in | 3.18 mm | 12 | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Non Specified - Dual Edge | Polyester Thermoplastic | Cantilever | Female | 10 Áin | 0.25 Ám | Dual | 24 | 3.25 mm | 0.128 in | ||||
EDAC Inc. | 2 | 4-40 Threaded Insert Top Mount Opening | Board Edge Straddle Mount | Copper Alloy | -40 °C | 105 ░C | 2 | Black | 0.125 in | 3.18 mm | 12 | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Non Specified - Dual Edge | Polyester Thermoplastic | Cantilever | Female | 10 Áin | 0.25 Ám | Dual | 24 | Card Extender | ||||
EDAC Inc. | 1 | 4-40 Flush Mount Threaded Insert Top Opening | Through Hole | Copper Alloy | -40 °C | 105 ░C | 1 | Black | 0.125 in | 3.18 mm | 24 | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Non Specified - Single Edge | Polyester Thermoplastic | Cantilever | Female | 10 Áin | 0.25 Ám | Single | 24 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
396-024 Series
24 Position Female Connector Non Specified - Dual Edge Gold 0.125" (3.18mm) Black
