CDBZ310200H-HF

Active

Comchip Technology

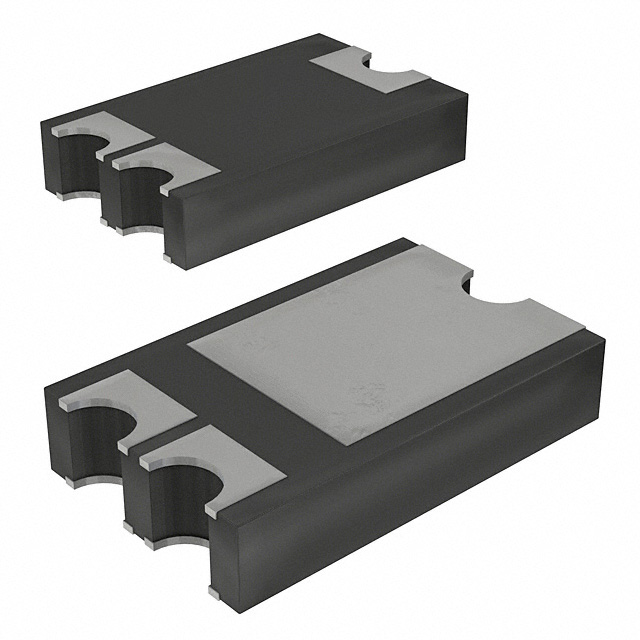

DIODE SCHOTTKY 200V 10A TO277

Search across all available documentation for this part.

Active

Comchip Technology

DIODE SCHOTTKY 200V 10A TO277

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CDBZ310200H-HF	CDBZ310200 Series

Current - Average Rectified (Io)	10 A	10 A
Current - Reverse Leakage @ Vr	100 µA	100 µA
Mounting Type	Surface Mount	Surface Mount
Operating Temperature - Junction [Max]	150 °C	150 °C
Operating Temperature - Junction [Min]	-55 °C	-55 °C
Package / Case	3-PowerDFN, TO-277	3-PowerDFN, TO-277
Speed	200 mA, 500 ns	200 - 500 mA
Supplier Device Package	TO-277 (Z3)	TO-277 (Z3)
Technology	Schottky	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	200 V	200 V
Voltage - Forward (Vf) (Max) @ If	820 mV	820 - 900 mV

DIODE SCHOTTKY 200V 10A TO277

Part	Supplier Device Package	Voltage - DC Reverse (Vr) (Max) [Max]	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Current - Average Rectified (Io)	Current - Reverse Leakage @ Vr	Mounting Type	Voltage - Forward (Vf) (Max) @ If	Technology	Speed	Package / Case
Comchip Technology CDBZ310200-HF	TO-277 (Z3)	200 V	150 °C	-55 °C	10 A	100 µA	Surface Mount	900 mV	Schottky	200 mA, 500 ns	3-PowerDFN, TO-277
Comchip Technology CDBZ310200H-HF	TO-277 (Z3)	200 V	150 °C	-55 °C	10 A	100 µA	Surface Mount	820 mV	Schottky	200 mA, 500 ns	3-PowerDFN, TO-277

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Diode 200 V 10A Surface Mount TO-277 (Z3)
