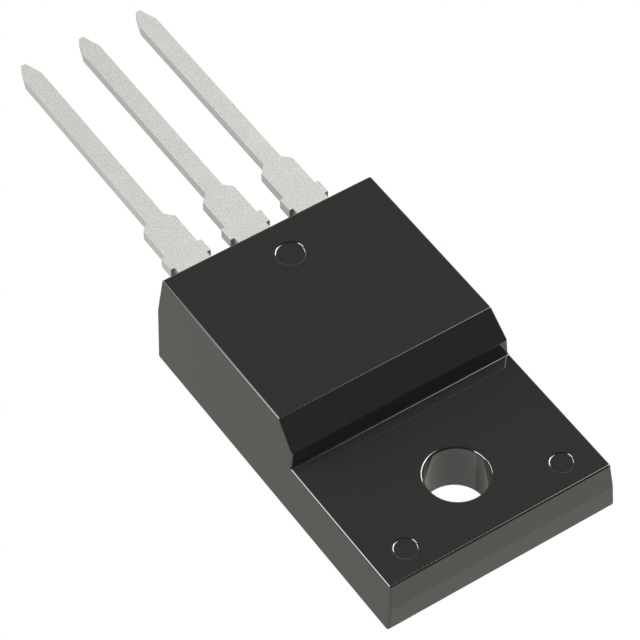

IPA60R380P6XKSA1

Active

Infineon Technologies

MOSFET TRANSISTOR, N CHANNEL, 10.6 A, 600 V, 0.342 OHM, 10 V, 4 V ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN

IPA60R380P6XKSA1

Active

Infineon Technologies

MOSFET TRANSISTOR, N CHANNEL, 10.6 A, 600 V, 0.342 OHM, 10 V, 4 V ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsTechnical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	IPA60R380P6XKSA1

Current - Continuous Drain (Id) @ 25°C	10.6 A
Drain to Source Voltage (Vdss)	600 V
Drive Voltage (Max Rds On, Min Rds On)	10 V
FET Type	N-Channel
Gate Charge (Qg) (Max) @ Vgs	19 nC
Input Capacitance (Ciss) (Max) @ Vds	877 pF
Mounting Type	Through Hole
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	TO-220-3 Full Pack
Power Dissipation (Max)	31 W
Rds On (Max) @ Id, Vgs	380 mOhm
Supplier Device Package	PG-TO220-FP
Technology	MOSFET (Metal Oxide)
Vgs (Max)	20 V
Vgs(th) (Max) @ Id	4.5 V

IPA60R380 Series

Part	Current - Continuous Drain (Id) @ 25°C	Input Capacitance (Ciss) (Max) @ Vds	Vgs(th) (Max) @ Id	Drain to Source Voltage (Vdss)	Package / Case	Vgs (Max)	Supplier Device Package	Rds On (Max) @ Id, Vgs	Gate Charge (Qg) (Max) @ Vgs	Technology	Mounting Type	Power Dissipation (Max)	FET Type	Drive Voltage (Max Rds On, Min Rds On)	Operating Temperature [Min]	Operating Temperature [Max]
Infineon Technologies IPA60R380E6XKSA1	10.6 A	700 pF	3.5 V	600 V	TO-220-3 Full Pack	20 V	PG-TO220-FP	380 mOhm	32 nC	MOSFET (Metal Oxide)	Through Hole	31 W	N-Channel	10 V	-55 °C	150 °C
Infineon Technologies IPA60R380P6XKSA1	10.6 A	877 pF	4.5 V	600 V	TO-220-3 Full Pack	20 V	PG-TO220-FP	380 mOhm	19 nC	MOSFET (Metal Oxide)	Through Hole	31 W	N-Channel	10 V	-55 °C	150 °C
Infineon Technologies IPA60R380C6XKSA1	10.6 A	700 pF	3.5 V	600 V	TO-220-3 Full Pack	20 V	PG-TO220-FP	380 mOhm	32 nC	MOSFET (Metal Oxide)	Through Hole	31 W	N-Channel	10 V	-55 °C	150 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 2.72
		10	$ 1.76
		100	$ 1.21
		500	$ 0.97
		1000	$ 0.90
		2000	$ 0.84
		5000	$ 0.83
Newark	Each	1	$ 2.06
		10	$ 1.39
		100	$ 1.06
		500	$ 0.88
		1000	$ 0.78
		2500	$ 0.76
		5000	$ 0.74

Description

General part information

IPA60R380 Series

InfineonsCoolMOS™ P6 superjunction MOSFETfamily is designed to enable higher system efficiency whilst being easy to design in. CoolMOS™ P6 closes the gap between technologies which focus on delivering ultimate performance and those which concentrate more on ease-of-use.
