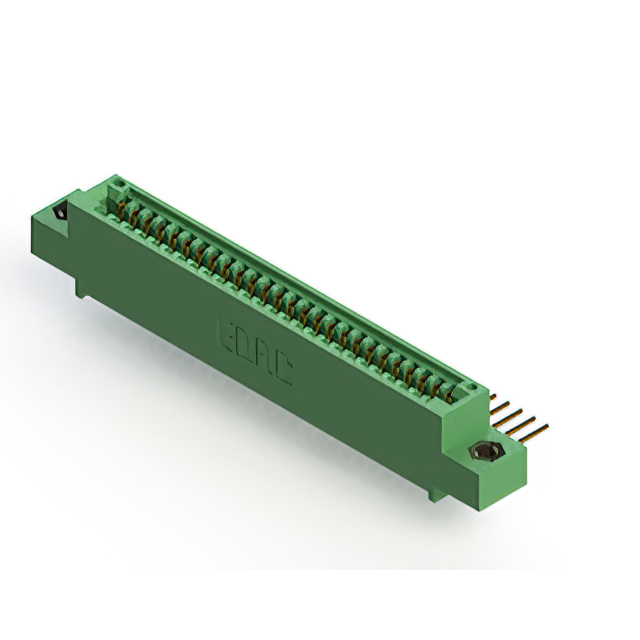

845-026-559-407

Active

EDAC Inc.

CONN EDGE SINGLE FML 26POS 0.100

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

845-026-559-407

Active

EDAC Inc.

CONN EDGE SINGLE FML 26POS 0.100

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	845-026-559-407

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	M3, Threaded Insert, Top Mount Opening
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole, Right Angle
Number of Positions	26
Number of Positions/Bay/Row [custom]	26
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Single
Termination	Solder
Termination Rows	1

845-026 Series

...

Part	Contact Material	Number of Positions/Bay/Row [custom]	Gender	Contact Finish Thickness	Contact Finish Thickness	Color	Operating Temperature [Max]	Operating Temperature [Min]	Termination Rows	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Contact Type	Contact Finish	Mounting Type	Material - Insulation	Number of Rows	Read Out	Pitch [x]	Pitch [x]	Number of Positions	Termination	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Card Type	Flange Feature	Flange Feature
EDAC Inc. 845-026-540-104	Copper Alloy	26	Female	10 Áin	0.25 Ám	Green	125 °C	-40 °C	1	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	Gold	Through Hole	Diallyl Phthalate (DAP)	1	Single	2.54 mm	0.1 in	26	Wire Wrap	3.96 mm	Flush Mount Top Opening Unthreaded	0.156 in	Non Specified - Single Edge
EDAC Inc. 845-026-524-504	Copper Alloy	13	Female	10 Áin	0.25 Ám	Green	125 °C	-40 °C	2	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	Gold	Through Hole	Diallyl Phthalate (DAP)	2	Dual	2.54 mm	0.1 in	26	Solder	3.96 mm	Top Mount Opening Unthreaded	0.156 in	Non Specified - Dual Edge
EDAC Inc. 845-026-525-808	Copper Alloy	13	Female	10 Áin	0.25 Ám	Green	125 °C	-40 °C	2	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	Gold	Through Hole	Diallyl Phthalate (DAP)	2	Dual	2.54 mm	0.1 in	26	Solder		4-40 Threaded Insert Top Mount Opening		Non Specified - Dual Edge
EDAC Inc. 845-026-540-812	Copper Alloy	13	Female	10 Áin	0.25 Ám	Green	125 °C	-40 °C	2	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	Gold	Through Hole	Diallyl Phthalate (DAP)	2	Dual	2.54 mm	0.1 in	26	Wire Wrap		Side Mount Opening Unthreaded		Non Specified - Dual Edge	3.25 mm	0.128 in
EDAC Inc. 845-026-559-407	Copper Alloy	26	Female	10 Áin	0.25 Ám	Green	125 °C	-40 °C	1	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	Gold	Through Hole Right Angle	Diallyl Phthalate (DAP)	1	Single	2.54 mm	0.1 in	26	Solder		M3 Threaded Insert Top Mount Opening		Non Specified - Single Edge
EDAC Inc. 845-026-500-507	Copper Alloy	13	Female	10 Áin	0.25 Ám	Green	125 °C	-40 °C	2	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	Gold	Through Hole	Diallyl Phthalate (DAP)	2	Dual	2.54 mm	0.1 in	26	Solder Eyelet(s)		M3 Threaded Insert Top Mount Opening		Non Specified - Dual Edge
EDAC Inc. 845-026-524-507	Copper Alloy	13	Female	10 Áin	0.25 Ám	Green	125 °C	-40 °C	2	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	Gold	Through Hole	Diallyl Phthalate (DAP)	2	Dual	2.54 mm	0.1 in	26	Solder		M3 Threaded Insert Top Mount Opening		Non Specified - Dual Edge
EDAC Inc. 845-026-521-107	Copper Alloy	26	Female	10 Áin	0.25 Ám	Green	125 °C	-40 °C	1	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	Gold	Through Hole	Diallyl Phthalate (DAP)	1	Single	2.54 mm	0.1 in	26	Solder		Flush Mount M3 Threaded Insert Top Opening		Non Specified - Single Edge
EDAC Inc. 845-026-540-807	Copper Alloy	13	Female	10 Áin	0.25 Ám	Green	125 °C	-40 °C	2	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	Gold	Through Hole	Diallyl Phthalate (DAP)	2	Dual	2.54 mm	0.1 in	26	Wire Wrap		M3 Threaded Insert Top Mount Opening		Non Specified - Dual Edge
EDAC Inc. 845-026-544-204	Copper Alloy	13	Female	10 Áin	0.25 Ám	Green	125 °C	-40 °C	2	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	Gold	Through Hole	Diallyl Phthalate (DAP)	2	Dual	2.54 mm	0.1 in	26	Wire Wrap	3.96 mm	Flush Mount Top Opening Unthreaded	0.156 in	Non Specified - Dual Edge

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 87.65
Newark	Each	1	$ 101.18
		100	$ 90.82
		250	$ 84.14
		500	$ 66.95
		1000	$ 47.63

Description

General part information

845-026 Series

26 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green
