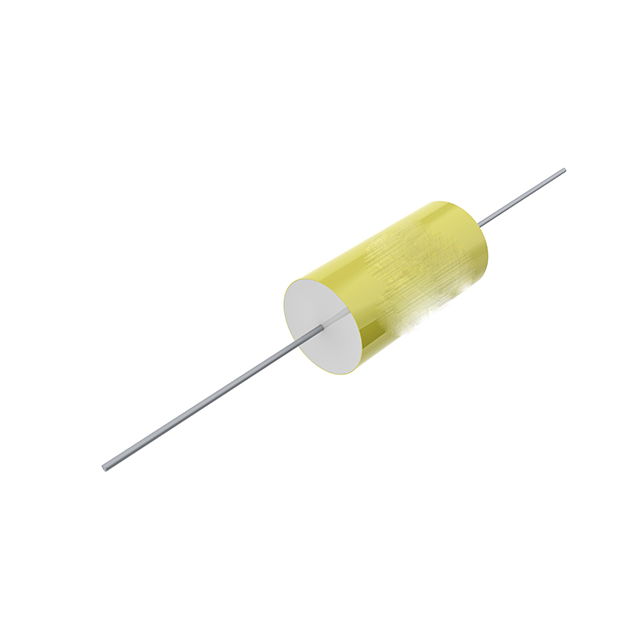

C4GAJUD4400AA1J

Active

KEMET

CAP FILM 4UF 5% 700VDC AXIAL

Search across all available documentation for this part.

Active

KEMET

CAP FILM 4UF 5% 700VDC AXIAL

Technical Specifications

Parameters and characteristics for this part

Specification	C4GAJUD4400AA1J

Applications	Switching, High Frequency
Capacitance	4 µF
Dielectric Material	Metallized, Polypropylene (PP)
ESR (Equivalent Series Resistance)	3.5 mOhms
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Axial
Size / Dimension [diameter]	1.299 in, 33 mm
Size / Dimension [x]	44 mm, 1.732 in
Termination	PC Pins
Tolerance	5 %
Voltage Rating - AC	400 V
Voltage Rating - DC	700 VDC

Part	Voltage Rating - AC	Package / Case	Size / Dimension [custom]	Size / Dimension [custom]	Size / Dimension [diameter]	Size / Dimension [diameter]	Termination	Voltage Rating - DC	Tolerance	ESR (Equivalent Series Resistance)	Applications	Capacitance	Operating Temperature [Max]	Operating Temperature [Min]	Dielectric Material	Mounting Type	Size / Dimension [x]
KEMET C4GAJUD4500AA3J	400 V	Axial	58 mm	2.283 "	30.5 mm	1.201 in	PC Pins	700 VDC	5 %	7.5 mOhm	High Frequency Switching	5 µF	85 °C	-40 °C	Metallized Polypropylene (PP)	Through Hole
KEMET C4GAJUD4400AA1J	400 V	Axial			1.299 in 33 mm		PC Pins	700 VDC	5 %	3.5 mOhms	High Frequency Switching	4 µF	85 °C	-40 °C	Metallized Polypropylene (PP)	Through Hole	1.732 in 44 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 µF Film Capacitor 400V 700V Polypropylene (PP), Metallized Axial
