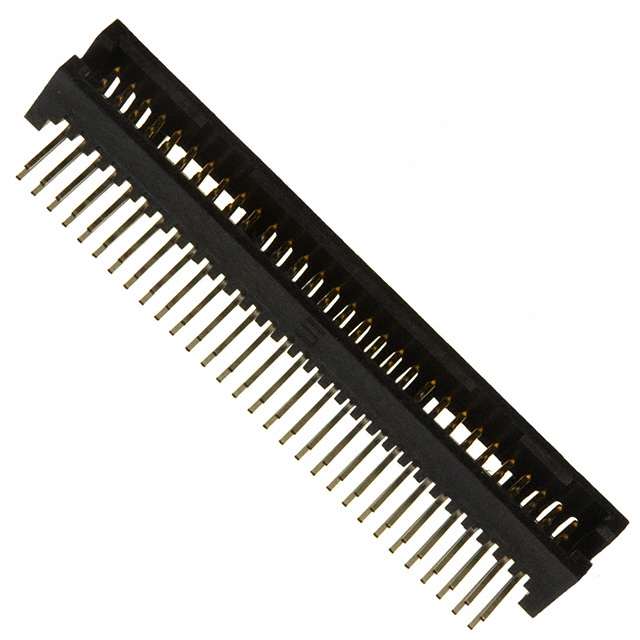

TFML-130-01-S-D-RA

Active

Samtec Inc.

CONN HEADER R/A 60POS 1.27MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTiger Eye™ High-Reliability Locking Terminal Strip, 0.050" Pitch TFML Datasheet +1

TFML-130-01-S-D-RA

Active

Samtec Inc.

CONN HEADER R/A 60POS 1.27MM

Deep-Dive with AI

DocumentsTiger Eye™ High-Reliability Locking Terminal Strip, 0.050" Pitch TFML Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TFML-130-01-S-D-RA

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Length - Mating	0.134 "
Contact Length - Mating	3.39 mm
Contact Length - Post	1.91 mm
Contact Length - Post [x]	0.075 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Friction Lock
Insulation Color	Black
Insulation Height	0.225 in
Insulation Height	5.72 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	60
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder

TFML-130 Series

Headers & Wire Housings Tiger Eye High-Reliability Locking Terminal Strip, 0.050" Pitch

Part	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Contact Finish - Mating	Number of Positions Loaded	Mounting Type	Insulation Material	Connector Type	Insulation Color	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Insulation Height	Insulation Height	Number of Rows	Contact Material	Fastening Type	Contact Shape	Row Spacing - Mating	Row Spacing - Mating	Features	Shrouding	Contact Type	Number of Positions	Style	Contact Length - Mating	Contact Length - Mating	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Post [x]	Contact Length - Post
Samtec Inc. TFML-130-02-L-D-P-TR	-55 °C	125 °C	Solder	Gold	All	Surface Mount	Liquid Crystal Polymer (LCP)	Header	Black	0.05 in	1.27 mm	Tin	5.6 mm	0.22 in	2	Phosphor Bronze	Friction Lock	Square	0.05 in	1.27 mm	Pick and Place	Shrouded - 4 Wall	Male Pin	60	Board to Board Cable	0.134 "	3.39 mm	UL94 V-0	15 µin	0.38 µm
Samtec Inc. TFML-130-01-S-D-RA	-55 °C	125 °C	Solder	Gold	All	Through Hole Right Angle	Liquid Crystal Polymer (LCP)	Header	Black	0.05 in	1.27 mm	Tin	5.72 mm	0.225 in	2	Phosphor Bronze	Friction Lock	Square	0.05 in	1.27 mm		Shrouded - 4 Wall	Male Pin	60	Board to Board Cable	0.134 "	3.39 mm	UL94 V-0	30 Áin	0.76 Ám	0.075 in	1.91 mm
Samtec Inc. TFML-130-01-F-D-RA	-55 °C	125 °C	Solder	Gold	All	Through Hole Right Angle	Liquid Crystal Polymer (LCP)	Header	Black	0.05 in	1.27 mm	Tin	5.72 mm	0.225 in	2	Phosphor Bronze	Friction Lock	Square	0.05 in	1.27 mm		Shrouded - 4 Wall	Male Pin	60	Board to Board Cable	0.134 "	3.39 mm	UL94 V-0	3 µin	0.076 µm	0.075 in	1.91 mm
Samtec Inc. TFML-130-01-LM-D-LC	-55 °C	125 °C	Solder	Gold	All	Through Hole	Liquid Crystal Polymer (LCP)	Header	Black	0.05 in	1.27 mm	Tin	5.6 mm	0.22 in	2	Phosphor Bronze	Friction Lock	Square	0.05 in	1.27 mm		Shrouded - 4 Wall	Male Pin	60	Board to Board Cable	0.134 "	3.39 mm	UL94 V-0	15 µin	0.38 µm	0.075 in	1.91 mm
Samtec Inc. TFML-130-02-S-D-P-TR	-55 °C	125 °C	Solder	Gold	All	Surface Mount	Liquid Crystal Polymer (LCP)	Header	Black	0.05 in	1.27 mm	Tin	5.6 mm	0.22 in	2	Phosphor Bronze	Friction Lock	Square	0.05 in	1.27 mm	Pick and Place	Shrouded - 4 Wall	Male Pin	60	Board to Board Cable	0.134 "	3.39 mm	UL94 V-0	30 Áin	0.76 Ám
Samtec Inc. TFML-130-01-S-D-A	-55 °C	125 °C	Solder	Gold	All	Through Hole	Liquid Crystal Polymer (LCP)	Header	Black	0.05 in	1.27 mm	Tin	5.6 mm	0.22 in	2	Phosphor Bronze	Friction Lock	Square	0.05 in	1.27 mm	Board Guide	Shrouded - 4 Wall	Male Pin	60	Board to Board Cable	0.134 "	3.39 mm	UL94 V-0	30 Áin	0.76 Ám	0.075 in	1.91 mm
Samtec Inc. TFML-130-02-S-D-P	-55 °C	125 °C	Solder	Gold	All	Surface Mount	Liquid Crystal Polymer (LCP)	Header	Black	0.05 in	1.27 mm	Tin	5.6 mm	0.22 in	2	Phosphor Bronze	Friction Lock	Square	0.05 in	1.27 mm	Pick and Place	Shrouded - 4 Wall	Male Pin	60	Board to Board Cable	0.134 "	3.39 mm	UL94 V-0	30 Áin	0.76 Ám
Samtec Inc. TFML-130-01-L-D-LC	-55 °C	125 °C	Solder	Gold	All	Through Hole	Liquid Crystal Polymer (LCP)	Header	Black	0.05 in	1.27 mm	Tin	5.6 mm	0.22 in	2	Phosphor Bronze	Friction Lock	Square	0.05 in	1.27 mm		Shrouded - 4 Wall	Male Pin	60	Board to Board Cable	0.134 "	3.39 mm	UL94 V-0	15 µin	0.38 µm	0.075 in	1.91 mm
Samtec Inc. TFML-130-02-L-D	-55 °C	125 °C	Solder	Gold	All	Surface Mount	Liquid Crystal Polymer (LCP)	Header	Black	0.05 in	1.27 mm	Tin	5.6 mm	0.22 in	2	Phosphor Bronze	Friction Lock	Square	0.05 in	1.27 mm		Shrouded - 4 Wall	Male Pin	60	Board to Board Cable	0.134 "	3.39 mm	UL94 V-0	15 µin	0.38 µm
Samtec Inc. TFML-130-02-S-D-A-K	-55 °C	125 °C	Solder	Gold	All	Surface Mount	Liquid Crystal Polymer (LCP)	Header	Black	0.05 in	1.27 mm	Tin	5.6 mm	0.22 in	2	Phosphor Bronze	Friction Lock	Square	0.05 in	1.27 mm	Board Guide Pick and Place	Shrouded - 4 Wall	Male Pin	60	Board to Board Cable	0.134 "	3.39 mm	UL94 V-0	30 Áin	0.76 Ám

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 13.32
		10	$ 12.61
		25	$ 12.13
		50	$ 11.84
		100	$ 11.04

Description

General part information

TFML-130 Series

Headers & Wire Housings Tiger Eye High-Reliability Locking Terminal Strip, 0.050" Pitch
