SSA-LXB10HW-GF/LP

Active

Lumex Opto/Components Inc.

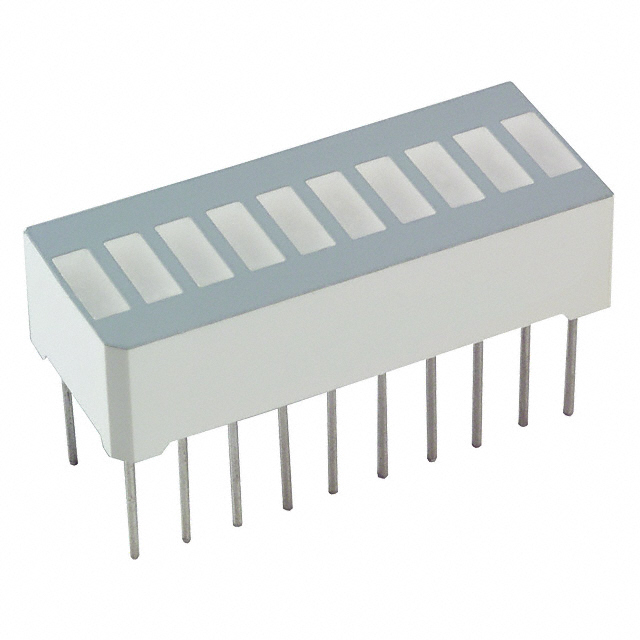

LED CBI 5X1.74MM 10-SEG RED VERT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SSA-LXB10HW-GF/LP

Active

Lumex Opto/Components Inc.

LED CBI 5X1.74MM 10-SEG RED VERT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.60
		10	$ 1.71
		100	$ 1.25
		500	$ 1.07
		1000	$ 1.01
		2000	$ 0.97
		5000	$ 0.92
		10000	$ 0.89

Description

General part information

SSA-LXB10 Series

LED Circuit Board Indicator LED Circuit Board Indicator Bar - 10 Wide, DIP Red (x 10) Diffused, White 2.35V 10mA Rectangle with Flat Top 5.00mm x 1.74mm Through Hole

Documents

Technical documentation and resources

Specification	SSA-LXB10HW-GF/LP	SSA-LXB10 Series

Color	Red (x 10)	Green (x 10), Red (x 10), Green, Yellow, Red
Configuration	10 Wide	10 Wide
Configuration	DIP, Bar	DIP, Bar, Bar - 10 Curved, SIP, 10 Wide
Configuration	-	10
Current	10 mA	10 - 150 mA
Current	-	20mA Green, 20mA Yellow, 20mA Red
Lens Size [x]	5 mm	5 - 5.3 mm
Lens Size [y]	1.74 mm	1.74 - 1.8 mm
Lens Style	Rectangle with Flat Top	Rectangle with Flat Top
Lens Type	Diffused, White	Diffused, White, Tinted
Millicandela Rating	0.75 mcd	0.75 - 80 mcd
Mounting Type	Through Hole	Through Hole, Through Hole, Right Angle
Viewing Angle	160 °	160 °
Voltage Rating	2.35 V	1.7 - 2.35 V
Wavelength - Peak	700 nm	565 - 700 nm

Part	Lens Type	Lens Size [x]	Lens Size [y]	Lens Style	Configuration	Configuration	Wavelength - Peak	Current	Millicandela Rating	Viewing Angle	Color	Mounting Type	Voltage Rating	Configuration [y]	Current
Lumex Opto/Components Inc. SSA-LXB10GW-GF	Diffused, White	5 mm	1.74 mm	Rectangle with Flat Top	10 Wide	Bar, DIP	565 nm	25 mA	8 mcd	160 °	Green (x 10)	Through Hole
Lumex Opto/Components Inc. SSA-LXB10IW-GF	Diffused, White	5 mm	1.74 mm	Rectangle with Flat Top	10 Wide	Bar, DIP	635 nm	30 mA	8 mcd	160 °	Red (x 10)	Through Hole	2 V
Lumex Opto/Components Inc. SSA-LXB10SRW-10652	Diffused, White			Rectangle with Flat Top		Bar - 10 Curved, DIP	660 nm	30 mA	20 mcd	160 °	Red (x 10)	Through Hole	1.7 V
Lumex Opto/Components Inc. SSA-LXB10HW-GF	Diffused, White	5 mm	1.74 mm	Rectangle with Flat Top	10 Wide	Bar, DIP	700 nm	30 mA	4 mcd	160 °	Red (x 10)	Through Hole	2.1 V
Lumex Opto/Components Inc. SSA-LXB10GW-RA	Diffused, White	5 mm	1.74 mm	Rectangle with Flat Top	10 Wide	Bar, DIP	565 nm		8 mcd	160 °	Green	Through Hole
Lumex Opto/Components Inc. SSA-LXB10HW-GF/LP	Diffused, White	5 mm	1.74 mm	Rectangle with Flat Top	10 Wide	Bar, DIP	700 nm	10 mA	0.75 mcd	160 °	Red (x 10)	Through Hole	2.35 V
Lumex Opto/Components Inc. SSA-LXB10YW-RA	Diffused, White	5 mm	1.74 mm	Rectangle with Flat Top		Bar, SIP	585 nm	30 mA	8 mcd	160 °	Yellow	Through Hole, Right Angle	2.1 V	10
Lumex Opto/Components Inc. SSA-LXB10G5Y4I1WLP	Diffused	5.3 mm	1.8 mm	Rectangle with Flat Top	10 Wide	Bar, DIP	565 nm, 585 nm, 635 nm		8 mcd, 8 mcd, 8 mcd	160 °	Green, Red, Yellow	Through Hole	2 V, 2 V, 2.2 V		20mA Green, 20mA Red, 20mA Yellow
Lumex Opto/Components Inc. SSA-LXB10SIW-CUR	Diffused, White					Bar - 10 Curved, DIP	636 nm	150 mA	80 mcd	160 °	Red (x 10)	Through Hole	2 V
Lumex Opto/Components Inc. SSA-LXB10IW-RA	Diffused, White	5 mm	1.74 mm	Rectangle with Flat Top		Bar, SIP	635 nm	30 mA	12 mcd	160 °	Red (x 10)	Through Hole, Right Angle	2 V	10
