PKKL-3S

Active

Essentra Access Solutions

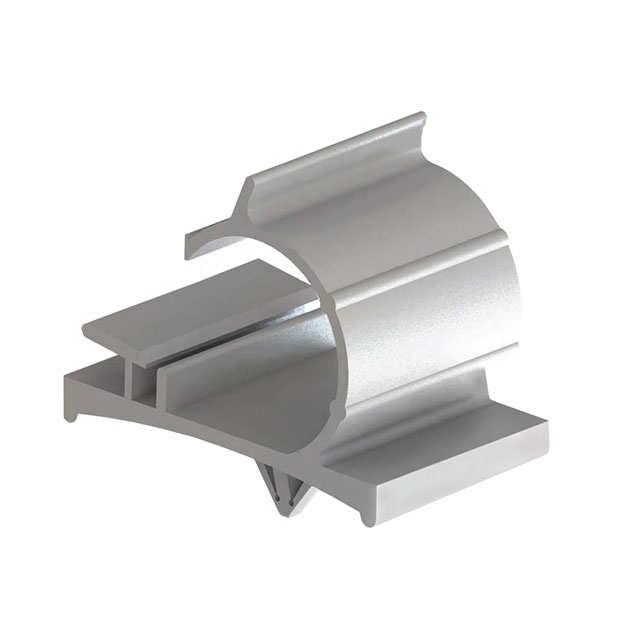

FASTENER, PUSH MOUNT CABLE CLAMP, 7.8 MM, NYLON 6.6 (POLYAMIDE 6.6), NATURAL, 21.1 MM

Search across all available documentation for this part.

Active

Essentra Access Solutions

FASTENER, PUSH MOUNT CABLE CLAMP, 7.8 MM, NYLON 6.6 (POLYAMIDE 6.6), NATURAL, 21.1 MM

Technical Specifications

Parameters and characteristics for this part

Specification	PKKL-3S

Color	Natural
Length [x]	0.83 in
Length [x]	21.08 mm
Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Mounting Type	Push In
Opening Size [custom]	7.8 mm
Opening Size [custom]	0.307 in
Panel Hole Size	0.256 in
Panel Hole Size	6.5 mm
Panel Thickness	1.57 mm
Panel Thickness	0.79 mm
Panel Thickness [Max]	0.062 in
Panel Thickness [Min]	0.031 "
Type	C-Type, Clip
Type Attributes	Locking, Round
Width [y]	0.75 in
Width [y]	19.05 mm

Part	Type Attributes	Length [x]	Length [x]	Mounting Type	Opening Size [custom]	Opening Size [custom]	Panel Thickness [Min]	Panel Thickness	Panel Thickness	Panel Thickness [Max]	Material Flammability Rating	Color	Width [y]	Width [y]	Type	Material	Panel Hole Size	Panel Hole Size
Essentra Access Solutions PKKL-3S	Locking Round	0.83 in	21.08 mm	Push In	7.8 mm	0.307 in	0.031 "	1.57 mm	0.79 mm	0.062 in	UL94 V-2	Natural	0.75 in	19.05 mm	C-Type Clip	Polyamide (PA66) Nylon 6/6	0.256 in	6.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Clip, C-Type Natural Push In 0.307" (7.80mm)

Technical documentation and resources
