Z8F081APH020SC
ObsoleteZilog

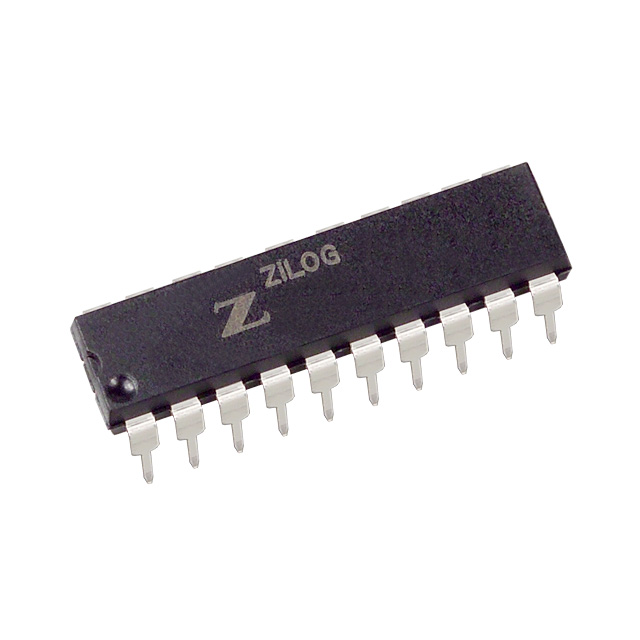

IC MCU 8BIT 8KB FLASH 20DIP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
Z8F081APH020SC
ObsoleteZilog
IC MCU 8BIT 8KB FLASH 20DIP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | Z8F081APH020SC |
|---|---|
| Connectivity | UART/USART, IrDA |
| Core Processor | eZ8 |
| Core Size | 8-Bit |
| Mounting Type | Through Hole |
| Number of I/O | 17 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | 0 °C |
| Oscillator Type | Internal |
| Package / Case | 20-DIP |
| Package / Case | 7.62 mm |
| Package / Case | 0.3 in |
| Peripherals | Brown-out Detect/Reset, LED, WDT, PWM, LVD, POR |
| Program Memory Type | FLASH |
| RAM Size | 1 K |
| Speed | 20 MHz |
| Voltage - Supply (Vcc/Vdd) [Max] | 3.6 V |
| Voltage - Supply (Vcc/Vdd) [Min] | 2.7 V |
Z8F081 Series
| Part | Core Processor | Mounting Type | Connectivity | Package / Case | Package / Case | Package / Case | Program Memory Type | Oscillator Type | Core Size | RAM Size | Operating Temperature [Max] | Operating Temperature [Min] | Peripherals | Voltage - Supply (Vcc/Vdd) [Max] | Voltage - Supply (Vcc/Vdd) [Min] | Speed | Number of I/O | Package / Case [y] | Package / Case [x] | Supplier Device Package | Package / Case | Package / Case [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Zilog | eZ8 | Through Hole | IrDA UART/USART | 20-DIP | 7.62 mm | 0.3 in | FLASH | Internal | 8-Bit | 1 K | 70 °C | 0 °C | Brown-out Detect/Reset LED LVD POR PWM WDT | 3.6 V | 2.7 V | 20 MHz | 17 | |||||
Zilog | eZ8 | Surface Mount | IrDA UART/USART | 20-SSOP | FLASH | Internal | 8-Bit | 1 K | 70 °C | 0 °C | Brown-out Detect/Reset LED LVD POR PWM WDT | 3.6 V | 2.7 V | 20 MHz | 17 | |||||||
Zilog | eZ8 | Surface Mount | IrDA UART/USART | 8-SOIC | FLASH | Internal | 8-Bit | 1 K | 70 °C | 0 °C | Brown-out Detect/Reset LED LVD POR PWM WDT | 3.6 V | 2.7 V | 20 MHz | 6 I/O | 3.9 mm | 0.154 in | |||||
Zilog | eZ8 | Surface Mount | IrDA UART/USART | FLASH | Internal | 8-Bit | 1 K | 70 °C | 0 °C | Brown-out Detect/Reset LED LVD POR PWM WDT | 3.6 V | 2.7 V | 20 MHz | 25 | 28-SSOP | |||||||
Zilog | eZ8 | Through Hole | IrDA UART/USART | 28-DIP | 15.24 mm | FLASH | Internal | 8-Bit | 1 K | 70 °C | 0 °C | Brown-out Detect/Reset LED LVD POR PWM WDT | 3.6 V | 2.7 V | 20 MHz | 25 | 0.6 in | |||||
Zilog | eZ8 | Surface Mount | IrDA UART/USART | 20-SOIC | FLASH | Internal | 8-Bit | 1 K | 105 °C | -40 °C | Brown-out Detect/Reset LED LVD POR PWM WDT | 3.6 V | 2.7 V | 20 MHz | 17 | 0.295 in | 7.5 mm | |||||
Zilog | eZ8 | Surface Mount | IrDA UART/USART | 8-VDFN Exposed Pad | FLASH | Internal | 8-Bit | 1 K | 70 °C | 0 °C | Brown-out Detect/Reset LED LVD POR PWM WDT | 3.6 V | 2.7 V | 20 MHz | 6 I/O | 8-QFN (5x6) | ||||||
Zilog | eZ8 | Surface Mount | IrDA UART/USART | 8-VDFN Exposed Pad | FLASH | Internal | 8-Bit | 1 K | 105 °C | -40 °C | Brown-out Detect/Reset LED LVD POR PWM WDT | 3.6 V | 2.7 V | 20 MHz | 6 I/O | 8-QFN (5x6) | ||||||
Zilog | eZ8 | Surface Mount | IrDA UART/USART | 20-SSOP | FLASH | Internal | 8-Bit | 1 K | 105 °C | -40 °C | Brown-out Detect/Reset LED LVD POR PWM WDT | 3.6 V | 2.7 V | 20 MHz | 17 | |||||||
Zilog | eZ8 | Through Hole | IrDA UART/USART | 20-DIP | 7.62 mm | 0.3 in | FLASH | Internal | 8-Bit | 1 K | 105 °C | -40 °C | Brown-out Detect/Reset LED LVD POR PWM WDT | 3.6 V | 2.7 V | 20 MHz | 17 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
Z8F081 Series
eZ8 Encore!® XP® Microcontroller IC 8-Bit 20MHz 8KB (8K x 8) FLASH
