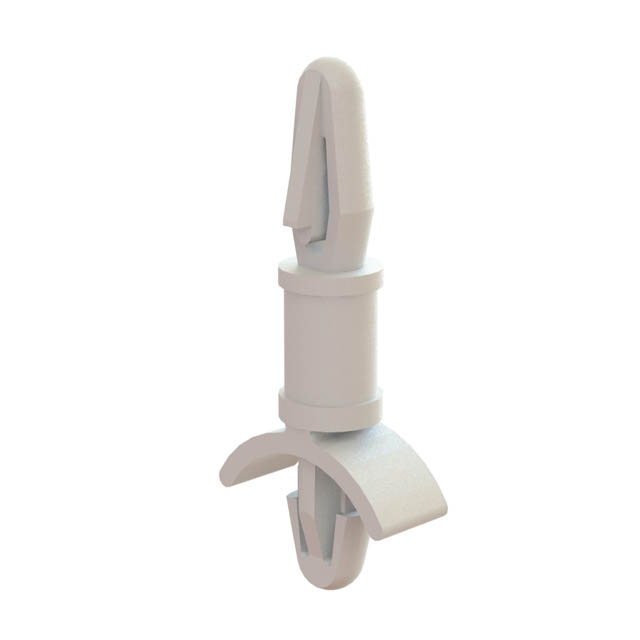

LCBSM-4-01
ActiveEssentra Access Solutions
BRD SPT SNAP LOCK NYLON 1/4"
Deep-Dive with AI
Search across all available documentation for this part.
LCBSM-4-01
ActiveEssentra Access Solutions
BRD SPT SNAP LOCK NYLON 1/4"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LCBSM-4-01 |
|---|---|
| Between Board Height | 6.35 mm |
| Between Board Height | 0.25 in |
| Between Board Height | 0.25 in |
| Features | Winged |
| Holding Type | Snap Lock |
| Length - Overall [x] | 21.6 mm |
| Length - Overall [x] | 0.85 " |
| Material | Nylon |
| Mounting Hole Diameter | 0.125 in |
| Mounting Hole Diameter | 0.125 in |
| Mounting Hole Diameter | 3.18 mm |
| Mounting Panel Thickness [Max] | 1.98 mm |
| Mounting Panel Thickness [Max] | 0.078 " |
| Mounting Panel Thickness [Min] | 0.79 mm |
| Mounting Panel Thickness [Min] | 0.031 in |
| Mounting Type | Snap Lock |
| Support Hole Diameter [diameter] | 0.125 in |
| Support Hole Diameter [diameter] | 0.125 in |
| Support Hole Diameter [diameter] | 3.18 mm |
| Support Panel Thickness | 0.0625 " |
| Support Panel Thickness | 0.062 " |
| Support Panel Thickness | 1.57 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.42 | |
| 5 | $ 0.36 | |||
| 10 | $ 0.30 | |||
| 25 | $ 0.28 | |||
| 50 | $ 0.27 | |||
| 100 | $ 0.24 | |||
| 250 | $ 0.23 | |||
| 500 | $ 0.22 | |||
| 1000 | $ 0.20 | |||
Description
General part information
LCBSM Series
Board Support Snap Lock / Snap Lock Nylon 0.250" (6.35mm) 1/4"
Documents
Technical documentation and resources
No documents available
