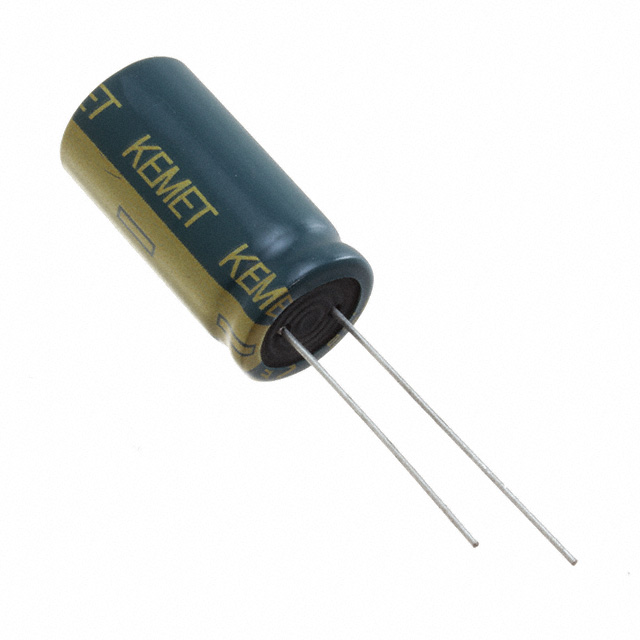

ESC227M035AH1EA

Active

KEMET

CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID

Search across all available documentation for this part.

Active

KEMET

CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID

Technical Specifications

Parameters and characteristics for this part

Specification	ESC227M035AH1EA

Applications	General Purpose
Capacitance	220 µF
ESR (Equivalent Series Resistance)	69 mOhm
Height - Seated (Max)	13.5 mm
Height - Seated (Max) [Max] [z]	0.531 "
Impedance	69 mOhms
Lead Spacing	5 mm
Lead Spacing	0.197 in
Lifetime @ Temp.	2000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can
Polarization	Polar
Ripple Current @ High Frequency	800 mA
Ripple Current @ Low Frequency	720 mA
Size / Dimension [diameter]	10 mm
Size / Dimension [diameter]	0.394 in
Tolerance	20 %
Voltage - Rated	35 V

Part	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Ripple Current @ Low Frequency	Ripple Current @ High Frequency	Tolerance	Impedance	ESR (Equivalent Series Resistance)	Operating Temperature [Min]	Operating Temperature [Max]	Lifetime @ Temp.	Voltage - Rated	Polarization	Lead Spacing	Lead Spacing	Mounting Type	Size / Dimension [diameter]	Size / Dimension [diameter]	Package / Case	Applications	Capacitance	Height - Seated (Max) [Max] [z]	Height - Seated (Max)
KEMET ESC227M010AE3AA	0.492 in	12.5 mm	270 mA	300 mA	20 %	220 mOhms	220 mOhm	-40 °C	105 ░C	2000 Hrs	10 V	Polar	0.098 in	2.5 mm	Through Hole	0.248 in	6.3 mm	Radial Can	General Purpose	220 µF
KEMET ESC227M035AH1AA			720 mA	800 mA	20 %	69 mOhms	69 mOhm	-40 °C	105 ░C	2000 Hrs	35 V	Polar	0.197 in	5 mm	Through Hole	0.394 in	10 mm	Radial Can	General Purpose	220 µF	0.531 "	13.5 mm
KEMET ESC227M035AH1EA			720 mA	800 mA	20 %	69 mOhms	69 mOhm	-40 °C	105 ░C	2000 Hrs	35 V	Polar	0.197 in	5 mm	Through Hole	0.394 in	10 mm	Radial Can	General Purpose	220 µF	0.531 "	13.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

220 µF 35 V Aluminum Electrolytic Capacitors Radial, Can 69mOhm @ 100kHz 2000 Hrs @ 105°C
