YO0521500000G

Active

AMPHENOL ANYTEK

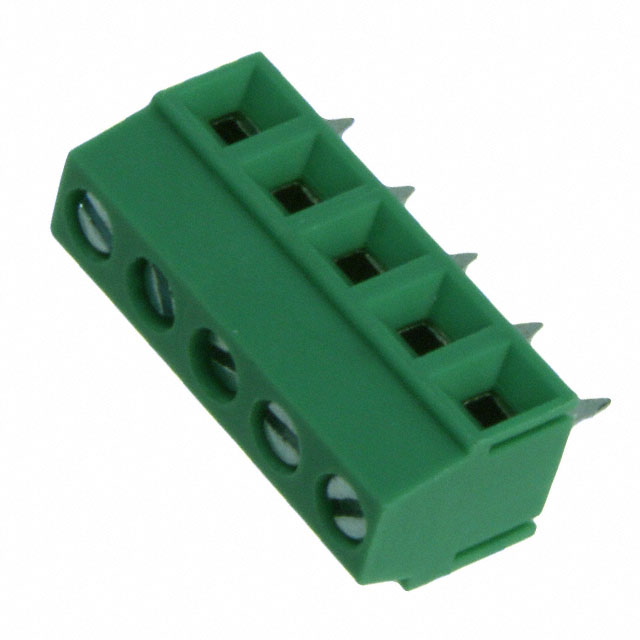

TERM BLK 5P SIDE ENT 3.81MM PCB

Search across all available documentation for this part.

Active

AMPHENOL ANYTEK

TERM BLK 5P SIDE ENT 3.81MM PCB

Technical Specifications

Parameters and characteristics commom to parts in this series

TB, WIRE TO BRD, R/A, 5POS, 16AWG, TH ROHS COMPLIANT: YES

Part	Wire Gauge [Min]	Wire Gauge [Max]	Number of Levels	Positions Per Level	Color	Mating Orientation	Wire Termination	Voltage	Torque - Screw	Torque - Screw	Housing Material	Current	Features	Contact Material - Plating	Mounting Type	Clamp Material - Plating	Operating Temperature [Min]	Operating Temperature [Max]	Pitch [x]	Pitch [x]	Screw Material - Plating	Screw Thread
AMPHENOL ANYTEK YO0501500000G	16 AWG	24 AWG	1	5	Green	Horizontal with Board	Screw - Rising Cage Clamp	300 V	0.2 Nm	1.7 Lb-In	Thermoplastic	10 A	Interlocking (Side)	Copper Alloy - Tin Plated	Through Hole	Copper Alloy - Nickel Plated	-40 °C	115 °C	3.5 mm	0.138 in	Steel, Zinc Plated	M2
AMPHENOL ANYTEK YO0521500000G	16 AWG	24 AWG	1	5	Green	Horizontal with Board	Screw - Rising Cage Clamp	300 V	0.2 Nm	1.7 Lb-In	Thermoplastic	10 A	Interlocking (Side)	Copper Alloy - Tin Plated	Through Hole	Copper Alloy - Nickel Plated	-40 °C	115 °C	3.81 mm	0.15 in	Steel, Zinc Plated	M2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Position Wire to Board Terminal Block Horizontal with Board 0.150" (3.81mm) Through Hole
