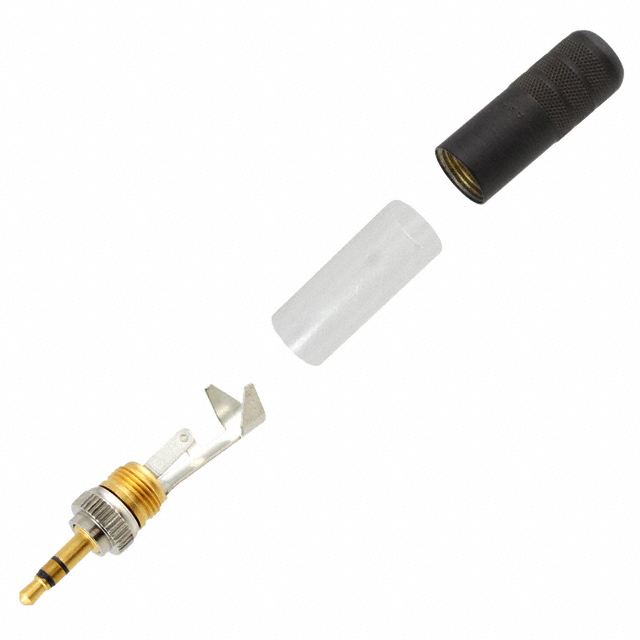

35HDLBAU

Active

Switchcraft Inc.

CONN PLUG STEREO 3.5MM 3COND

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN PLUG STEREO 3.5MM 3COND

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	35HDLBAU	35HDLB Series

Actual Diameter [diameter]	0.139 in	0.139 in
Actual Diameter [diameter]	3.53 mm	3.53 mm
Body Color	Gold, Black	Gold, Black, Silver
Body Material	Copper Alloy	Copper Alloy
Cable Opening	-	0.175 in
Cable Opening	-	4.44 mm
Cable Opening [custom]	7.37 mm	7.37 mm
Cable Opening [custom]	0.29 in	0.29 in
Connector Type	Phone Plug	Phone Plug
Contact Material	Copper Alloy	Copper Alloy
Contact Material - Plating [custom]	Gold	Gold, Silver
Current Rating (Amps)	4 A	4 A
Gender	Male	Male
Housing Material	Copper Alloy	Copper Alloy
Includes	1 Connector, 1 Insulator Tube, 1 Handle	1 Connector, 1 Insulator Tube, 1 Handle
Industry Recognized Mating Diameter	0.141 "	0.141 "
Industry Recognized Mating Diameter	0.125 "	0.125 "
Industry Recognized Mating Diameter	3.5 mm	3.5 mm
Mating Length/Depth	14.2 mm	14.2 mm
Mating Length/Depth	0.56 in	0.56 in
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions/Contacts [custom]	3	3
Number of Positions/Contacts [custom]	3	3
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-20 C	-20 C
Shielding	Unshielded	Unshielded
Signal Lines	Stereo	Stereo
Termination	Solder Eyelet(s)	Solder Eyelet(s)

Phone Connectors 3.5mm Locking Blk Body Nickel Pin

Part	Industry Recognized Mating Diameter	Industry Recognized Mating Diameter	Industry Recognized Mating Diameter	Includes	Housing Material	Cable Opening [diameter]	Cable Opening [diameter]	Gender	Signal Lines	Body Material	Connector Type	Actual Diameter [diameter]	Actual Diameter [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Shielding	Current Rating (Amps)	Mounting Type	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Termination	Contact Material	Mating Length/Depth	Mating Length/Depth	Contact Material - Plating [custom]	Body Color	Cable Opening [custom]	Cable Opening [custom]
Switchcraft Inc. 35HDLBAUS	0.141 "	0.125 "	3.5 mm	1 Connector, 1 Handle, 1 Insulator Tube	Copper Alloy	0.175 in	4.44 mm	Male	Stereo	Copper Alloy	Phone Plug	0.139 in	3.53 mm	85 °C	-20 C	Unshielded	4 A	Free Hanging (In-Line)	3	3	Solder Eyelet(s)	Copper Alloy	14.2 mm	0.56 in	Gold	Black, Gold
Switchcraft Inc. 35HDLBAU	0.141 "	0.125 "	3.5 mm	1 Connector, 1 Handle, 1 Insulator Tube	Copper Alloy			Male	Stereo	Copper Alloy	Phone Plug	0.139 in	3.53 mm	85 °C	-20 C	Unshielded	4 A	Free Hanging (In-Line)	3	3	Solder Eyelet(s)	Copper Alloy	14.2 mm	0.56 in	Gold	Black, Gold	7.37 mm	0.29 in
Switchcraft Inc. 35HDLBN	0.141 "	0.125 "	3.5 mm	1 Connector, 1 Handle, 1 Insulator Tube	Copper Alloy			Male	Stereo	Copper Alloy	Phone Plug	0.139 in	3.53 mm	85 °C	-20 C	Unshielded	4 A	Free Hanging (In-Line)	3	3	Solder Eyelet(s)	Copper Alloy	14.2 mm	0.56 in	Silver	Black, Silver	7.37 mm	0.29 in
