General part information

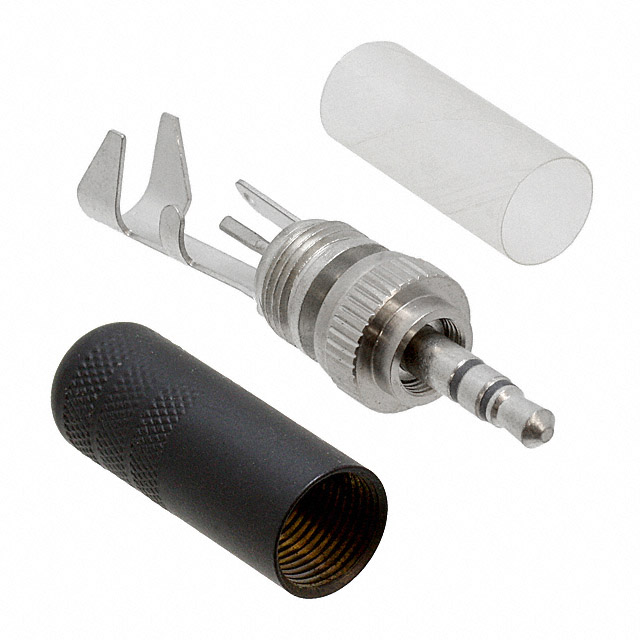

Phone Connectors 3.5mm Locking Blk Body Nickel Pin
Technical documentation and resources
Parameters and characteristics commom to parts in this series
| Specification | 35HDLBN | S Series |
|---|---|---|
| Accessory Type | - | Cap (Cover) |
| Actual Diameter [diameter] | 0.139 in | 0.138 - 0.14 in |
| Actual Diameter [diameter] | 3.53 mm | 3.5 - 3.56 mm |
| Body Color | Silver, Black | Silver, Black, Gold |
| Body Material | Copper Alloy | Copper Alloy, Brass |
| Cable Opening | - | 4.45 mm |
| Cable Opening | - | 0.21 in |
| Cable Opening | - | 5.33 mm |
| Cable Opening | - | 0.175 in |
| Cable Opening | - | 0.125 - 0.175 in |
| Cable Opening | - | 3.18 - 4.45 mm |
| Cable Opening | - | 3.81 mm |
| Cable Opening [custom] | 7.37 mm | 3.81 - 7.37 mm |
| Cable Opening [custom] | 0.29 in | 0.15 - 0.29 in |
| Color | - | Black |
| Connector Type | Phone Plug | Phone Plug |
| Contact Material | Copper Alloy | Copper Alloy, Brass |
| Contact Material - Plating | - | Tin |
| Contact Material - Plating [custom] | Silver | Gold, Silver |
| Current Rating (Amps) | 4 A | 4 A |
| Features | - | Sealed, Locking, Strain Relief |
| For Use With/Related Products | - | 3.5mm Panel Mount Jacks |
| Gender | Male | Male |
| Housing Material | Copper Alloy | Copper Alloy, Brass, Thermoplastic |
| Includes | 1 Connector, 1 Insulator Tube, 1 Handle | 1 Connector, 1 Insulator Tube, 1 Handle, 1 O-Ring |
| Industry Recognized Mating Diameter | 0.141 " | 0.141 " |
| Industry Recognized Mating Diameter | 0.125 " | 0.125 " |
| Industry Recognized Mating Diameter | 3.5 mm | 3.5 mm |
| Internal Switch(s) | - | False |
| Mating Length/Depth | 14.2 mm | 13 - 14.2 mm |
| Mating Length/Depth | 0.56 in | 0.51 - 0.56 in |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line), Right Angle |
| Number of Positions/Contacts [custom] | 3 | 3 |
| Number of Positions/Contacts [custom] | 3 | 3 |
| Operating Temperature [Max] | 85 °C | 66 - 85 °C |
| Operating Temperature [Min] | -20 C | -20 - 0 C |
| Shielding | Unshielded | Unshielded, Shielded |
| Signal Lines | Stereo | Stereo |
| Termination | Solder Eyelet(s) | Solder Eyelet(s), Solder |
Phone Connectors 3.5mm Locking Blk Body Nickel Pin
| Part | Current Rating (Amps) | Body Material | Operating Temperature [Max] | Operating Temperature [Min] | Internal Switch(s) | Contact Material - Plating | Mounting Type | Body Color | Contact Material | Industry Recognized Mating Diameter | Industry Recognized Mating Diameter | Industry Recognized Mating Diameter | Shielding | Includes | Termination | Signal Lines | Housing Material | Gender | Actual Diameter [diameter] | Actual Diameter [diameter] | Features | Connector Type | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] | Number of Positions/Contacts [custom] | Number of Positions/Contacts [custom] | Contact Material - Plating [custom] | Cable Opening [diameter] | Cable Opening [diameter] | Mating Length/Depth | Mating Length/Depth | Cable Opening [custom] | Cable Opening [custom] | Accessory Type | For Use With/Related Products | Color | Cable Opening [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Switchcraft Inc. 35HDLSN17 | 4 A | Copper Alloy | 85 °C | -20 C | Tin | Free Hanging (In-Line) | Black, Silver | Copper Alloy | 0.141 " | 0.125 " | 3.5 mm | Unshielded | 1 Connector, 1 Handle, 1 Insulator Tube | Solder Eyelet(s) | Stereo | Copper Alloy | Male | 3.56 mm | 0.14 in | Locking, Sealed, Strain Relief | Phone Plug | 4.45 mm | 0.21 in | 5.33 mm | 0.175 in | 3 | 3 | ||||||||||||
Switchcraft Inc. 35HDRABAUS | 4 A | Brass | 66 °C | 0 °C | Free Hanging (In-Line), Right Angle | Black, Gold | Brass | 0.141 " | 0.125 " | 3.5 mm | Shielded | 1 Connector, 1 Handle, 1 Insulator Tube | Solder | Stereo | Brass | Male | 3.5 mm | 0.138 " | Phone Plug | 3 | 3 | Gold | 0.175 in | 4.44 mm | 14.2 mm | 0.56 in | |||||||||||||
Switchcraft Inc. 35HDSN15 | 4 A | Copper Alloy | 85 °C | -20 C | Tin | Free Hanging (In-Line) | Black, Silver | Copper Alloy | 0.141 " | 0.125 " | 3.5 mm | Unshielded | 1 Connector, 1 Handle, 1 Insulator Tube, 1 O-Ring | Solder Eyelet(s) | Stereo | Copper Alloy | Male | 3.56 mm | 0.14 in | Sealed, Strain Relief | Phone Plug | 3 | 3 | 14.2 mm | 0.56 in | 0.15 in, 0.175 in | 3.81 mm, 4.45 mm | ||||||||||||
Switchcraft Inc. 35HDLSAU17 | 4 A | Copper Alloy | 85 °C | -20 C | Free Hanging (In-Line) | Black, Gold | Copper Alloy | 0.141 " | 0.125 " | 3.5 mm | Unshielded | 1 Connector, 1 Handle, 1 Insulator Tube, 1 O-Ring | Solder Eyelet(s) | Stereo | Copper Alloy | Male | 3.56 mm | 0.14 in | Locking, Sealed, Strain Relief | Phone Plug | 4.45 mm | 0.21 in | 5.33 mm | 0.175 in | 3 | 3 | Gold | ||||||||||||
Switchcraft Inc. CAP35L | Cap (Cover) | 3.5mm Panel Mount Jacks | Black | ||||||||||||||||||||||||||||||||||||
Switchcraft Inc. 35HDSN12 | 4 A | Copper Alloy | 85 °C | -20 C | Tin | Free Hanging (In-Line) | Black, Silver | Copper Alloy | 0.141 " | 0.125 " | 3.5 mm | Unshielded | 1 Connector, 1 Handle, 1 Insulator Tube, 1 O-Ring | Solder Eyelet(s) | Stereo | Copper Alloy | Male | 3.56 mm | 0.14 in | Sealed, Strain Relief | Phone Plug | 3 | 3 | 0.125 in, 0.15 in | 3.18 mm | 14.2 mm | 0.56 in | 3.81 mm | |||||||||||
Switchcraft Inc. 35HDRANAUS | 4 A | Brass | 66 °C | 0 °C | Free Hanging (In-Line), Right Angle | Silver | Brass | 0.141 " | 0.125 " | 3.5 mm | Shielded | 1 Connector, 1 Handle, 1 Insulator Tube | Solder | Stereo | Brass | Male | 3.5 mm | 0.138 " | Phone Plug | 3 | 3 | Gold | 0.175 in | 4.44 mm | 13 mm | 0.51 in | |||||||||||||
Switchcraft Inc. 35HDSAU17 | 4 A | Copper Alloy | 85 °C | -20 C | Free Hanging (In-Line) | Black, Gold | Copper Alloy | 0.141 " | 0.125 " | 3.5 mm | Unshielded | 1 Connector, 1 Handle, 1 Insulator Tube, 1 O-Ring | Solder Eyelet(s) | Stereo | Copper Alloy | Male | 3.56 mm | 0.14 in | Sealed, Strain Relief | Phone Plug | 4.45 mm | 0.21 in | 5.33 mm | 0.175 in | 3 | 3 | Gold | 14.2 mm | 0.56 in | ||||||||||
Switchcraft Inc. 35HDLSAU12 | 4 A | Copper Alloy | 85 °C | -20 C | Free Hanging (In-Line) | Black, Gold | Copper Alloy | 0.141 " | 0.125 " | 3.5 mm | Unshielded | 1 Connector, 1 Handle, 1 Insulator Tube, 1 O-Ring | Solder Eyelet(s) | Stereo | Copper Alloy | Male | 3.56 mm | 0.14 in | Locking, Sealed, Strain Relief | Phone Plug | 3 | 3 | Gold | 0.125 in, 0.15 in | 3.18 mm | 3.81 mm | |||||||||||||
Switchcraft Inc. 35HDSAU15 | 4 A | Copper Alloy | 85 °C | -20 C | Free Hanging (In-Line) | Black, Gold | Copper Alloy | 0.141 " | 0.125 " | 3.5 mm | Unshielded | 1 Connector, 1 Handle, 1 Insulator Tube, 1 O-Ring | Solder Eyelet(s) | Stereo | Copper Alloy | Male | 3.56 mm | 0.14 in | Sealed, Strain Relief | Phone Plug | 3 | 3 | Gold | 14.2 mm | 0.56 in | 0.15 in, 0.175 in | 3.81 mm, 4.45 mm |
