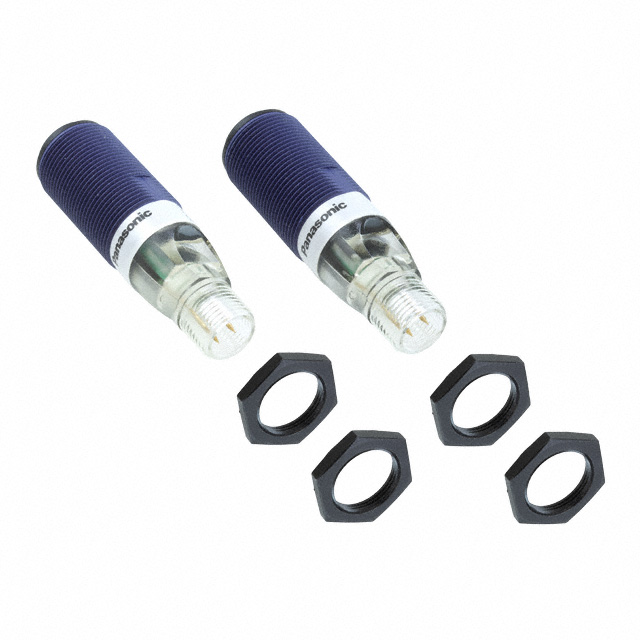

CY-111B-Z

Obsolete

Panasonic Industrial Automation Sales

SENSOR THRU-BEAM 15M NPN OPEN CL

Deep-Dive with AI

Search across all available documentation for this part.

CY-111B-Z

Obsolete

Panasonic Industrial Automation Sales

SENSOR THRU-BEAM 15M NPN OPEN CL

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CY-111B-Z

Connection Method	Connector, 4POS, M12
Ingress Protection	IP67
Light Source	Infrared
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-25 °C
Output Configuration	NPN - Open Collector
Response Time	1 ms
Sensing Distance	15 m
Sensing Distance	590.551 in
Sensing Method	Through-Beam
Voltage - Supply [Max]	24 V
Voltage - Supply [Min]	12 V

CY-111 Series

Part	Response Time	Voltage - Supply [Min]	Voltage - Supply [Max]	Light Source	Sensing Distance	Sensing Distance	Output Configuration	Connection Method	Operating Temperature [Max]	Operating Temperature [Min]	Cable Length	Cable Length	Ingress Protection	Sensing Method
Panasonic Industrial Automation Sales CY-111VB-P	1 ms	12 V	24 V	Infrared	15 m	590.551 in	PNP - Open Collector	Cable	55 °C	-25 °C	78.74 in	2 m	IP67	Through-Beam
Panasonic Industrial Automation Sales CY-111A-P-Z	1 ms	12 V	24 V	Infrared	15 m	590.551 in	PNP - Open Collector	4POS Connector M12	55 °C	-25 °C			IP67	Through-Beam
Panasonic Industrial Automation Sales CY-111VA	1 ms	12 V	24 V	Infrared	15 m	590.551 in	NPN - Open Collector	Cable	55 °C	-25 °C	78.74 in	2 m	IP67	Through-Beam
Panasonic Industrial Automation Sales CY-111B-P	1 ms	12 V	24 V	Infrared	15 m	590.551 in	PNP - Open Collector	Cable	55 °C	-25 °C	78.74 in	2 m	IP67	Through-Beam
Panasonic Industrial Automation Sales CY-111VA-P	1 ms	12 V	24 V	Infrared	15 m	590.551 in	PNP - Open Collector	Cable	55 °C	-25 °C	78.74 in	2 m	IP67	Through-Beam
Panasonic Industrial Automation Sales CY-111VB-P-Z	1 ms	12 V	24 V	Infrared	15 m	590.551 in	PNP - Open Collector	4POS Connector M12	55 °C	-25 °C			IP67	Through-Beam
Panasonic Industrial Automation Sales CY-111VA-Z	1 ms	12 V	24 V	Infrared	15 m	590.551 in	NPN - Open Collector	4POS Connector M12	55 °C	-25 °C			IP67	Through-Beam
Panasonic Industrial Automation Sales CY-111B-Z	1 ms	12 V	24 V	Infrared	15 m	590.551 in	NPN - Open Collector	4POS Connector M12	55 °C	-25 °C			IP67	Through-Beam
Panasonic Industrial Automation Sales CY-111VA-P-Z	1 ms	12 V	24 V	Infrared	15 m	590.551 in	PNP - Open Collector	4POS Connector M12	55 °C	-25 °C			IP67	Through-Beam
Panasonic Industrial Automation Sales CY-111VB	1 ms	12 V	24 V	Infrared	15 m	590.551 in	NPN - Open Collector	Cable	55 °C	-25 °C	78.74 in	2 m	IP67	Through-Beam

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 45.00

Description

General part information

CY-111 Series

Through-Beam Optical Sensor 590.551" (15m) NPN - Open Collector

Documents

Technical documentation and resources

No documents available
